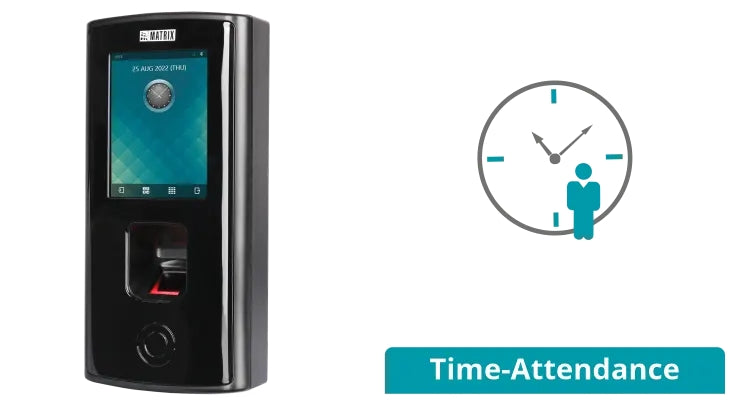

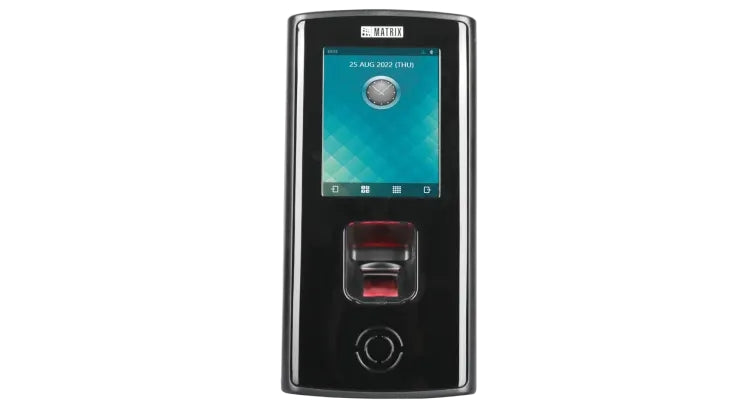

Cosec Vega Fot Biometric Time-Attendance Terminal Fingerprint & RFID Access

Cosec Vega Fot Finger and RFID Card Based Time-Attendance Terminal: Advanced Biometric and RFID Access Control

The Cosec Vega Fot Time-Attendance Terminal is a highly advanced solution that provides multi-credential support, combining fingerprint recognition, RFID card, and PIN-based authentication for a seamless and secure time and attendance management system. Designed for modern businesses, it offers massive storage, high-security standards, and easy integration with various systems to ensure accurate employee tracking and security.

Multi-Credential Support for Enhanced Flexibility The Cosec Vega Fot supports fingerprint, EM proximity card, and PIN-based authentication, providing flexibility for businesses to choose the best security method that fits their needs. It also supports facial recognition when combined with compatible hardware.

High Capacity for Users and Templates With the ability to store up to 50,000 users and 500,000 event logs, this time-attendance terminal is ideal for large organizations. It also supports 9,600 fingerprint templates in 1:N mode and 100,000 templates in 1:1 mode, making it suitable for both small and large-scale implementations.

Multiple Connectivity Options for Seamless Integration The device supports a wide range of connectivity options, including Ethernet, USB, and 3G/4G/LTE, ensuring that it integrates smoothly into any network and environment.

Advanced Biometric Sensor for High Accuracy The Suprema Optical Sensor used in the Cosec Vega Fot provides highly accurate fingerprint recognition, with a False Acceptance Ratio (FAR) of just 0.001% and a False Rejection Ratio (FRR) of 0.001%, ensuring secure and reliable identification.

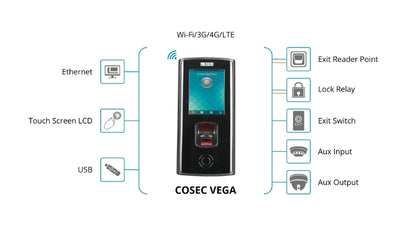

Interface Diagram

Features

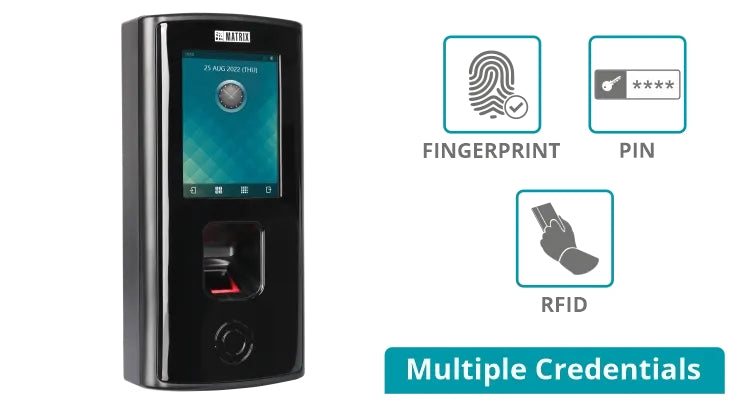

• Multi-Credential Support: Fingerprint, EM Proximity Card, PIN, Face (with compatible hardware)
• Storage Capacity: 50,000 users and 500,000 event logs
• Fingerprint Template Storage: 9,600 in 1:N Mode and 100,000 in 1:1 Mode
• Templates per User: Up to 10 (Single Template per Finger Mode) / Up to 5 (Dual Template per Finger Mode)
• Biometric Sensor: Suprema Optical Sensor with 0.001% FAR and 0.001% FRR
• Connectivity Options: Ethernet, USB, and 3G/4G/LTE
• Display: 3.5″ TFT Capacitive Touch Panel with 320x240 resolution
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Power Supply: 12V DC @ 2A with battery backup

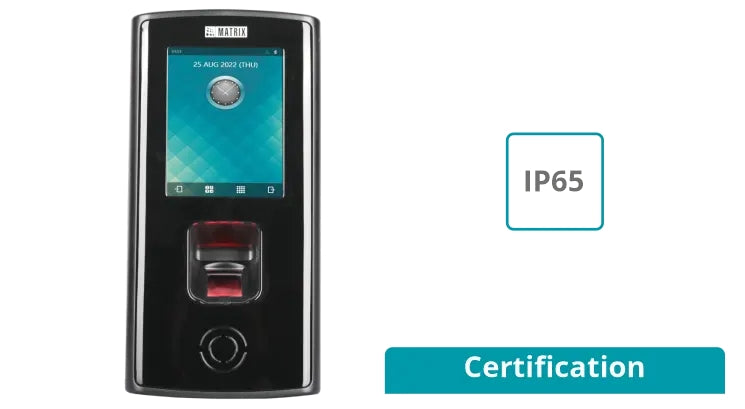

• Ingress Protection: IP65 for dust and water resistance

Technical Specifications

General:

• Credential Support: Fingerprint, RFID Card, PIN, Face (with compatible hardware)
• Ingress Protection: IP65

Capacity:

• Max Users: 50,000
• Max Template Storage: 9,600 in 1:N Mode, 100,000 in 1:1 Mode
• Event Buffer: 500,000
• Templates per User: Up to 10 (Single Template per Finger Mode), Up to 5 (Dual Template per Finger Mode)

Communication:

• Ethernet: Yes (10/100 Mbps)
• Mobile Broadband: Yes (3G/4G/LTE)
• USB: 1 USB Port (Data Transfer and 3G/4G/LTE Dongle)

Hardware:

• CPU: 800 MHz ARM Cortex A8 processor
• Memory: 256 MB Flash + 512 MB DDR3 RAM
• Micro SD Card: No Inbuilt SD Card (SD Card Supported)
• Display: 3.5″ TFT Display with Capacitive Touch Panel
• Resolution: 320 x 240 Pixel
• Buzzer: Yes
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Humidity: 5% to 95% RH Non-Condensing
• Power: 12V DC @ 2A
• Dimensions (WxHxD): 91mm x 186mm x 38mm
• Weight: 0.54Kgs (1.19Lbs)

Sensor:

• Sensor Name: Suprema Optical Sensor – SFM6030
• Sensor Technology: Optical Technology
• Encryption: 256-bit AES
• Waterproof: Yes
• FAR: 0.001%
• FRR: 0.001%
• Resolution (dpi): 500
• Sensing Area: 16.0mm x 18.0mm
• Template Size: 384 bytes
• Image Size (Pixel): 272mm x 320mm

Installation:

• Wall Mount: Yes

Accessories:

• Power Adapter: 12VDC @ 2A (CE, FCC, UL, BIS)
• Battery Backup: Yes

Why Choose Cosec Vega Fot?

The Cosec Vega Fot Time-Attendance Terminal is a powerful solution for organizations of all sizes, providing multi-credential authentication, high storage capacity, and superior biometric accuracy. With its IP65-rated protection, robust performance, and flexible connectivity options, it ensures seamless integration and reliability in any time-attendance application. Choose the Cosec Vega Fot for an advanced and secure time-attendance management system.
