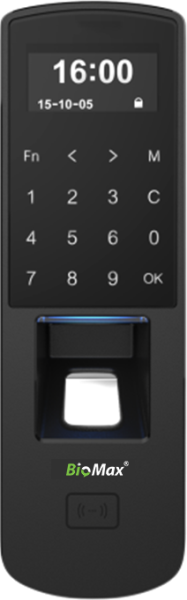

Biomax V-AX27 Fingerprint Access Control Terminal – PoE, Wiegand, Door Sensor, 3,000 Users

The Biomax V-AX27 is a slim fingerprint and card access control terminal with PoE power, Wiegand, a door sensor input and tamper alarm.

Key specifications

Who should purchase it?

Offices, labs and server rooms that want a slim door-side reader powered over the network cable.

How many users can it support?

3,000 fingerprints and 3,000 cards, with storage for 50,000 logs.

Which biometric methods does it support?

Fingerprint (500 DPI sensor, FAR 0.00001%, FRR 0.001%) and RFID card; Mifare card is optional.

Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?

TCP/IP, RS485 and PoE (IEEE 802.3af).

Does it support an attendance application?

Attendance application support for this model is confirmed on your quotation – our team will share the current manufacturer details.

Which software is compatible?

Connects to server-based access and attendance software over TCP/IP; Biomax's TimeSheet software runs as web or cloud software. AmpleTrails can integrate attendance data with your payroll or HRMS.

Does it support access control?

Yes. Relay output (common, normally-open and normally-closed contacts, or direct lock control), Wiegand input/output, door open sensor and tamper alarm.

What are the installation requirements?

Slim door-frame mounting (54 x 170 x 41 mm), powered by 12V DC / 1A or PoE (IEEE 802.3af). Operating temperature -20°C to 50°C. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.

What is included in the box?

The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.

What is the warranty?

Supplied with the Biomax manufacturer warranty through AmpleTrails, an authorised Biomax partner. The exact warranty term is stated on your invoice, and our support team handles warranty claims for you.

What alternatives are available?

• Biomax V-AX18 – colour display with optional battery
• Biomax N-BioAccess – slim 10,000-user model with Wi-Fi
• Biomax N-Access10 Pro – standalone door controller
• Browse all biometric attendance machines or the full Biomax range.

Buy from an authorised Biomax partner

AmpleTrails is an authorised Biomax partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.

Specifications: Biomax official product page. Specifications may change with manufacturer revisions; our team confirms the current version on your quotation.
