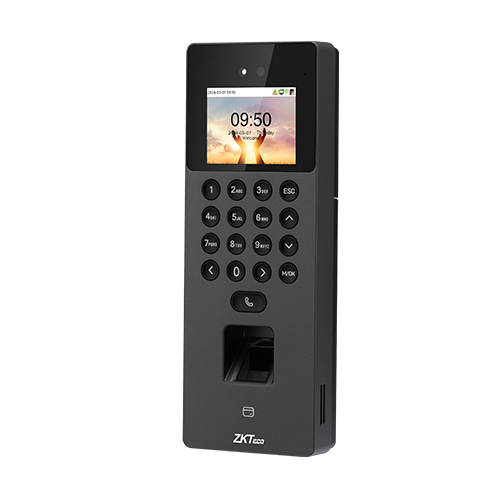

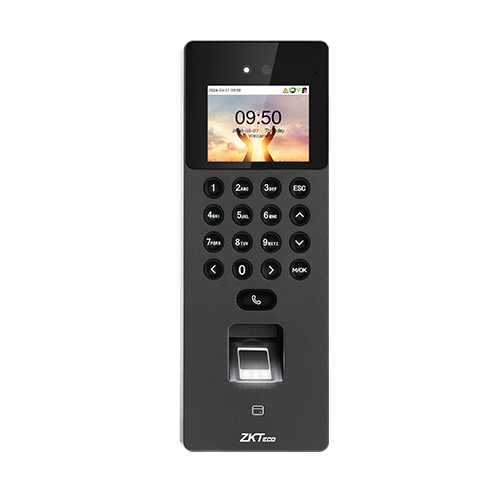

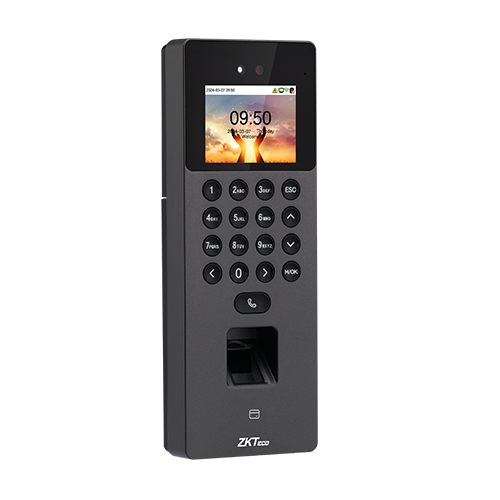

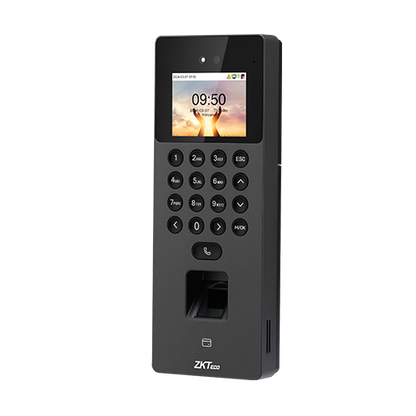

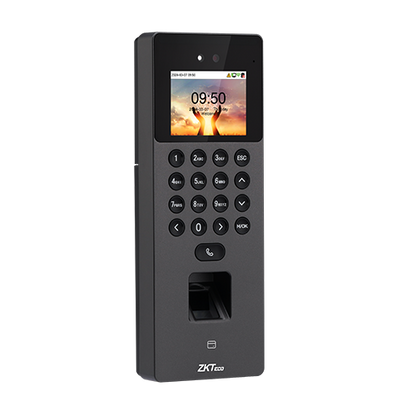

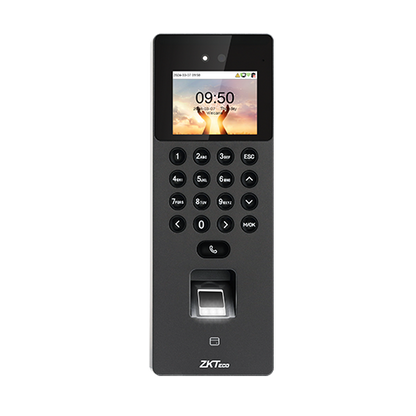

ZKTeco F09 Compact Face Recognition Attendance Terminal

Rs. 9,187.00

~~Rs. 11,025.00~~ Rs. 9,187.00

Sale Sold out

Product Details

ZKTeco F09 SIP-Ready Multi-Biometric Access Control Terminal

The ZKTeco F09 is a SIP-ready multi-biometric access control terminal with video intercom capability. It combines facial recognition, fingerprint verification, RFID card authentication, and password verification in a compact wall-mounted device.

The terminal uses Visible Light Facial Authentication Technology and a ZK Optical Fingerprint Sensor to provide fast and secure biometric authentication. Its advanced anti-spoofing technology helps protect against various fake photo and video attacks, making it suitable for modern access control and attendance applications.

Key Features

Visible Light Facial Authentication Technology.
ZK Optical Fingerprint Verification.
Multiple authentication methods: Face, Fingerprint, RFID Card and Password.
Supports 125 kHz ID Card as standard.
13.56 MHz IC Card support available as an optional function.
HD video door phone capability through SIP Protocol Version 2.0.
WDR binocular camera with 1MP resolution.
Rechargeable backup battery for continued operation during power interruptions.
Built-in speaker and microphone for video intercom communication.
17-key physical keypad for password and T9 keyboard input.
TCP/IP and optional Wi-Fi communication.
Wall-mount installation compatible with Asian Gang Box and Single Gang Box.

Authentication Methods

Face: Visible light facial authentication.
Fingerprint: ZK Optical Fingerprint Sensor.
RFID Card: 125 kHz ID Card standard.
IC Card: 13.56 MHz IC Card available as an optional function.
Password: Physical keypad with support for up to 8-digit passwords.

Video Intercom

The F09 provides video intercom functionality using both ZKTeco private protocol and standard SIP protocol. It can communicate with compatible indoor monitors and supports SIP-based video door phone functionality.

Private Protocol: Video intercom via TCP/IP.
Standard Protocol: SIP Protocol Version 2.0.
Private Protocol Indoor Monitors: VT07-B01, VT07-B01-W.
SIP Indoor Monitors: VT07-B22L, VT07-B26L-W.

Product Advantages

Combines multiple biometric authentication technologies in one terminal.
Fast facial authentication with recognition time of less than 0.35 seconds.
Fast fingerprint verification with recognition time of less than 0.5 seconds.
Supports video intercom through SIP and ZKTeco protocols.
Provides multiple authentication options for flexible access control.
Supports rechargeable backup battery operation.
Large user and transaction capacity for commercial deployments.
Compact wall-mounted design suitable for entrances and access points.
Supports ONVIF compatibility with Profiles S, T, G, Q and A.

Technical Specifications

Specification	Details
Model	F09
Product Type	Multi-Biometric Access Control Terminal with Video Intercom
Display	2.4" TFT Color LCD, 320 × 240
Camera	WDR Binocular Camera, 1MP
Operating System	Linux
CPU	Dual Core @ 1GHz
RAM	512MB
ROM	512MB
Fingerprint Sensor	ZK Optical Sensor
Fingerprint Template Capacity	3,000 (1:N) Standard
Face Template Capacity	1,500 (1:N) Standard
Card Capacity	3,000 (1:N) Standard
User Capacity	3,000 (1:N) Standard
Transaction Capacity	150,000 (1:N)
Authentication Methods	Fingerprint / Face / Card / Password
Card Type	125 kHz ID Card Standard / 13.56 MHz IC Card Optional
Password	Up to 8 Digits
Facial Recognition Speed	Less than 0.35 sec
Fingerprint Recognition Time	Less than 0.5 sec
Face Algorithm	ZKFace V4.0
Fingerprint Algorithm	ZKFingerprint V13.0 Standard / V10.0 Optional
Physical Keypad	17 Keys
Speaker	8Ω @ 1W
Microphone	1 × Omni-directional Microphone
Supplement Light	Yes
Communication	TCP/IP, Wi-Fi IEEE 802.11b/g/n/ax @ 2.4GHz, USB Type-A
USB	Type-A, USB Drive Only
Access Control Interface	Electric Lock, Door Sensor, Exit Button
Video Intercom	ZKTeco Private Protocol via TCP/IP / Standard SIP Protocol
SIP Protocol	Version 2.0
ONVIF	Compatible with Profile S, T, G, Q & A
Supported Software	ZKBio CVSecurity, BioTime Cloud 2.0, Easy TimePro
Mobile Applications	ZKBio Zlink, ZKBio Zexus
Dimensions	205.20 × 74.19 × 33.30 mm (L × W × H)
Installation	Wall-Mount, Compatible with Asian Gang Box / Single Gang Box
Net Weight	0.258 Kg
Operating Temperature	-5°C to 45°C
Operating Humidity	20% to 80% RH, Non-condensing
Power Supply	DC 12V 1.5A
Backup Battery	2000 mAh Lithium Battery
Certifications	ISO14001, ISO9001, CE, FCC, RoHS

Standard Functions

Backup Battery
ADMS
DST
Photo Capture
Event Photo Capture
Up to 14-digit User ID
Access Levels
Groups and Holidays
Record Query
Schedule Bell
Tamper Switch Alarm
Automatic Status Switch
Multiple Authentication Methods
SIP Client Version 2.0
ONVIF Profile S, T, G, Q & A Compatibility
HTTPS / SSH Backend Access
T9 Keyboard Input

Optional Functions

13.56 MHz IC Card
Wi-Fi
Wireless Doorbell

Supported Software & Applications

ZKBio CVSecurity
BioTime Cloud 2.0
Easy TimePro
ZKBio Zlink
ZKBio Zexus

Applications

Corporate Offices
Commercial Buildings
Factories & Manufacturing Units
Warehouses
Educational Institutions
Hospitals & Healthcare Facilities
Hotels
Residential Buildings
Government Offices
Secure Access Control Points
Video Door Phone Installations
Attendance and Workforce Management Systems

Why Choose ZKTeco F09?

Multi-biometric authentication in a single compact terminal.
Fast and reliable face and fingerprint authentication.
SIP-ready video intercom capability.
Supports RFID, password, face and fingerprint verification.
Large 3,000-user capacity and 150,000 transaction storage.
Rechargeable 2,000 mAh backup battery.
ONVIF compatibility for video surveillance integration.
Supports multiple professional access control and attendance software platforms.
Compact wall-mounted design with flexible installation options.

Package Includes

1 × ZKTeco F09 Multi-Biometric Access Control Terminal
1 × Wall-Mount Installation Setup
1 × Power Supply
1 × Backup Battery
