Attendance Machine

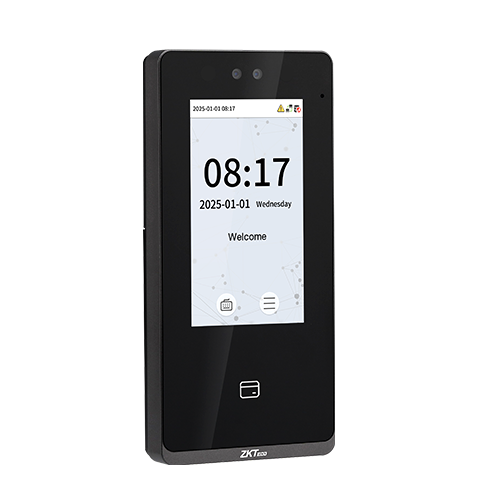

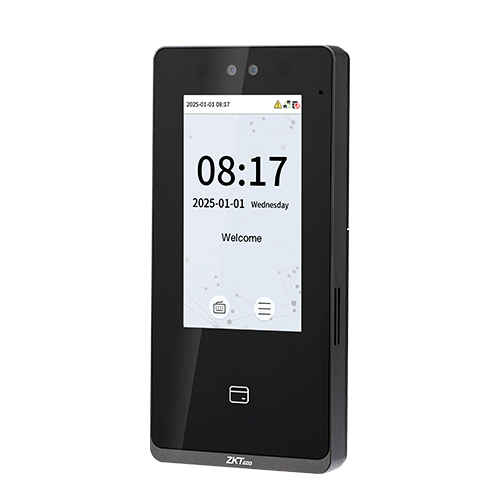

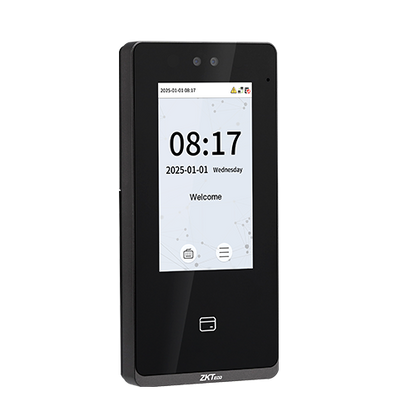

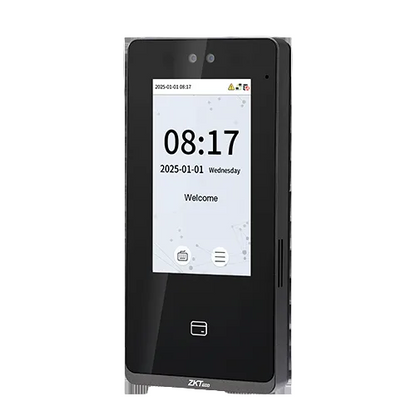

Zkteco MiniAC Face Attendance Machine
Zkteco MiniAC Face Attendance Machine
Couldn't load pickup availability
The MiniAC represents a significant advancement in facial recognition technology, engineered for demanding security and attendance applications. Its proprietary Visible Light Technology enables accurate identification across diverse lighting conditions—from brightly lit environments to complete darkness—eliminating the limitations of traditional systems. The enhanced functionality suite delivers reliable performance for enterprise-grade deployments, making it ideal for organizations requiring consistent, round-the-clock biometric verification. Built with precision optics and intelligent processing, the MiniAC combines compact design with professional-grade capabilities, ensuring seamless integration into existing security infrastructure while maintaining exceptional accuracy and speed.
The Zkteco MiniAC is a sophisticated access control terminal combining advanced facial recognition with multi-modal authentication capabilities. Featuring intelligent facial authentication technology, it supports dual verification through facial recognition and card-based access, processing identities with exceptional speed across large user databases. The system incorporates anti-spoofing algorithms engineered to counter sophisticated attacks including synthetic photos and deepfake videos, ensuring robust security integrity. Beyond access control, the MiniAC functions as a video intercom terminal with ONVIF protocol support, seamlessly integrating with SIP-compatible indoor units for enhanced communication workflows. Its flexible architecture supports multiple communication protocols, enabling compatibility with diverse attendance and access control software ecosystems. The device delivers enterprise-grade biometric authentication with versatile deployment options for modern security infrastructure.
| Display | |
|---|---|
| Screen | 4.3" TFT Color Touch LED (272×480) |
| Camera | |
| Type | WDR Binocular Camera @ 1MP |
| Operating System | |
| OS | Linux |
| Hardware | |
| CPU | Dual Core @ 1GHz |
| RAM / ROM | 512MB / 8GB |
| Speaker | 8Ω @ 1W |
| Microphone | 1x (Sensitivity: -42 dB, Omni-directional, SNR 58 dB, Impedance 2.2kΩ) |
| Supplement Light | No |
| Authentication Method | |
| Methods | Face / Card / Password (Virtual Keypad) |
| Capacities | |
| Face Templates | 1,500 (1:N) |
| Card Capacity | 1,500 (1:N) |
| User Capacity | 1,500 (1:N) |
| Transaction Capacity | 200,000 (1:N) |
| Password Capacity | 8 Digits |
| Performance | |
| Facial Recognition Distance | 30cm – 200cm |
| Facial Recognition Speed | < 0.35 sec |
| Card Type | |
| ID Card | 125 kHz (Standard) |
| IC Card | 13.56 MHz (Optional) |
| Communication | |
| Network | TCP/IP ×1, Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional) |
| Interfaces |
Wiegand (Input/Output) ×1, RS485: ZKTeco RS485 ×1, USB Type-A (USB Drive Only) ×1, Aux Input ×1, Electric Lock ×1, Door Sensor ×1, Exit Button ×1, 12V Output ×1 |
| Optional Functions | |
| Options | IC Card, Wireless Doorbell |
| Standard Functions | |
| ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (v2.0), ONVIF (Profile S/T/G/C/Q/A), AC Push & TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard Input | |
| Supported Software | |
| On-Premise | ZKBio CVSecurity (AC PUSH), easy TimePro (TA PUSH) |
| Cloud | BioTime Cloud 2.0, ZKBio Zlink (Web Portal & Mobile App) |
| Protection Rating | |
| Ingress Protection | IP65 (Waterproof & Dustproof) |
| Certificates | |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
| Model | |
|---|---|
| Model | MiniAC |
| Display | |
| Screen | 4.3" TFT Color Touch LED (272×480) |
| Camera | |
| Type | WDR Binocular Camera @ 1MP |
| Operating System | |
| OS | Linux |
| Hardware | |
| CPU | Dual Core @ 1GHz |
| RAM / ROM | 512MB / 8GB |
| Speaker | 8Ω @ 1W |
| Microphone | 1× (Sensitivity: -42 dB, Omni-directional, SNR 58 dB, Impedance 2.2kΩ) |
| Supplement Light | No |
| Authentication Methods | |
| Methods | Face / Card / Password (Virtual Keypad) |
| Capacities | |
| Face Templates | 1,500 (1:N) |
| Card Capacity | 1,500 (1:N) |
| User Capacity | 1,500 (1:N) |
| Transaction Capacity | 200,000 |
| Password Length | Max 8 digits |
| Biometric Performance | |
| Recognition Speed | < 0.35 sec |
| Recognition Distance | 30cm – 200cm |
| FAR | ≤ 0.01% |
| FRR | ≤ 0.02% |
| Algorithm | ZKFace V4.0 |
| Card Type | |
| ID Card | 125 kHz (Standard) |
| IC Card | 13.56 MHz (Optional) |
| Communication Interfaces | |
| Network | TCP/IP ×1, Wi-Fi (802.11b/g/n/ax) @ 2.4 GHz (Optional) |
| Ports |
Wiegand (In/Out) ×1, RS485 ×1, USB Type-A (USB Drive Only) ×1, Aux Input ×1, Electric Lock ×1, Door Sensor ×1, Exit Button ×1, 12V Output ×1 |
| Standard Functions | |
| ADMS, DST, Photo Capture, Event Photo Capture, 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Alarm, Automatic Status Switch, Multiple Authentication Modes, SIP Client (v2.0), ONVIF (Profile S/T/G/C/Q/A), AC Push / TA Push, HTTPS / SSH Access, T9 Keyboard Input | |
| Optional Functions | |
| Options | IC Card, Wireless Doorbell |
| Video Intercom | |
| Private Protocol | SIP-ready; Supports SenseFace Series & VT07 Series Indoor Monitors |
| Standard SIP | Supports SenseFace Series & VT07 Series Indoor Units |
| Environmental | |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 10%–90% RH (Non-condensing) |
| Installation | |
| Mounting | Wall-mount (Asia Gang Box / Single Gang Box) |
| Power & Protection | |
| Power Supply | DC 12V 3A |
| Ingress Protection | IP65 (Dustproof & Waterproof) |
| Dimensions & Weight | |
| Dimensions | 175 × 84.5 × 21.65 mm |
| Net Weight | 0.264 kg |
| Supported Software | |
| On-Premise | ZKBio CVSecurity, Easy TimePro |
| Cloud | ZKBio Zlink, BioTime Cloud 2.0, Mobile App Support |
| Certifications | |
| Certificates | ISO14001, ISO9001, CE, FCC, RoHS |
