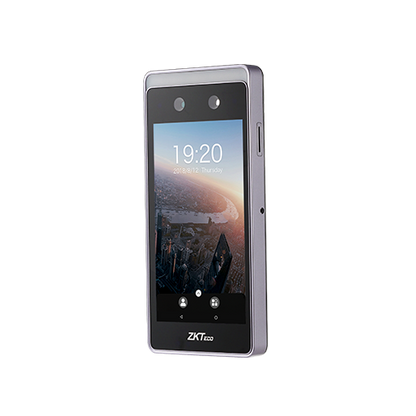

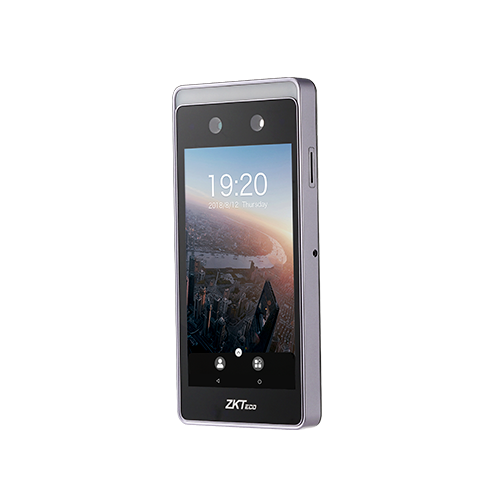

ZKTeco Horus E1L Handheld Face Recognition Terminal
ZKTeco Horus E1L Handheld Face Recognition Terminal
Couldn't load pickup availability
Product Details
Horus E1 – Visible Light Facial Recognition Terminal
The ZKTeco Horus E1 is an advanced Visible Light Facial Recognition terminal designed for modern access control and time attendance applications. Named after the Egyptian god Horus and its legendary “all-seeing eye,” the Horus E1 combines powerful facial recognition technology with a compact and elegant design.
The terminal supports facial recognition at distances of up to 3 meters and provides a ±30° pose angle tolerance for convenient user authentication. With strong anti-spoofing capabilities and support for multiple communication technologies including Wi-Fi, 3G, 4G and Bluetooth, the Horus E1 is suitable for a wide range of security and attendance environments.
Depending on the model, the Horus E1 can be configured with optional fingerprint and RFID card modules. It supports up to 10,000 face templates and is compatible with ZKBio CVSecurity and easy TimePro platforms.
Key Features
- Advanced Visible Light Facial Recognition technology.
- Up to 3-meter facial recognition distance.
- ±30° facial pose angle tolerance.
- High anti-spoofing capability for enhanced biometric security.
- 2MP dual-camera configuration.
- Up to 10,000 face templates with optional higher-capacity configuration.
- Optional fingerprint and RFID authentication modules.
- Multiple wireless communication options including Wi-Fi, Bluetooth, 3G and 4G.
- Android 8.1 operating system.
- Compact 15.6mm-thick design.
- IPS touch LCD display with 720 × 1280 resolution.
- Compatible with ZKBio CVSecurity and easy TimePro.
Product Advantages
The Horus E1 provides facial recognition at distances of up to 3 meters, allowing convenient touchless authentication without requiring users to stand directly in front of the terminal.
With a ±30° pose angle tolerance, the terminal can recognize users from different facial angles, improving authentication convenience.
The Horus E1 incorporates advanced facial recognition and anti-spoofing technology to provide secure biometric verification.
The Horus E1 series supports different authentication configurations. Optional RFID and fingerprint modules can be used to provide additional verification methods.
The terminal supports Wi-Fi, Bluetooth and optional 3G/4G wireless communication, providing flexible connectivity for different installation and networking requirements.
Powered by a quad-core 1.5GHz processor and Android 8.1 operating system, the Horus E1 combines powerful processing capabilities with a compact terminal design.
Verification Methods

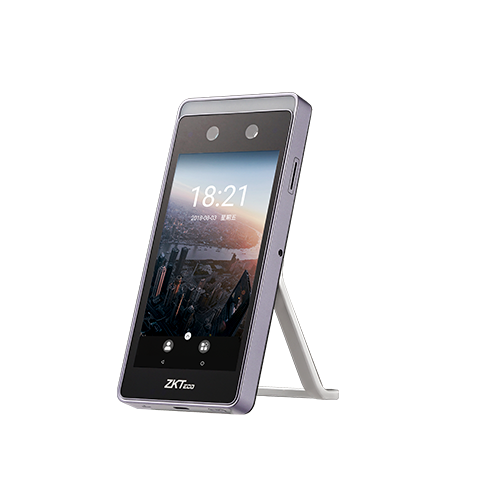

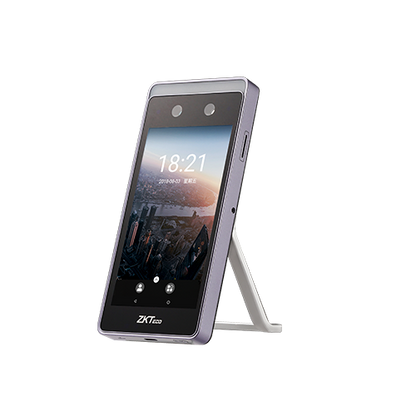

- Horus E1: Face

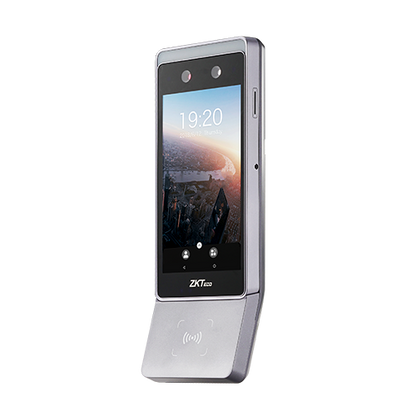

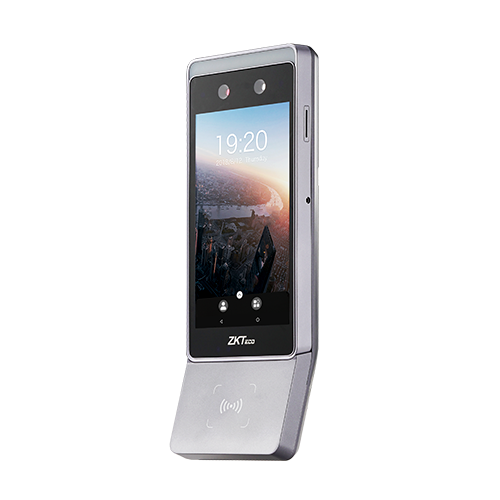

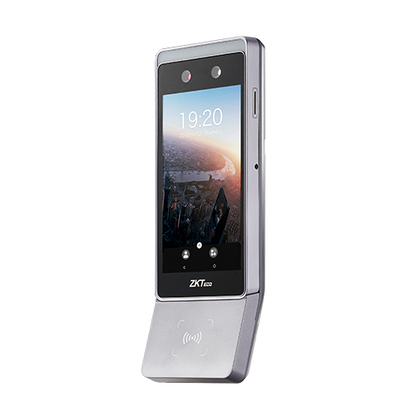

- Horus E1-RFID: Face + RFID

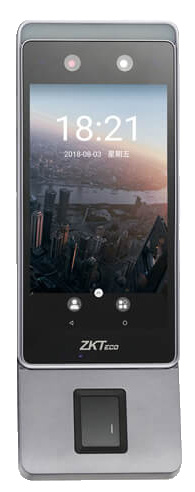

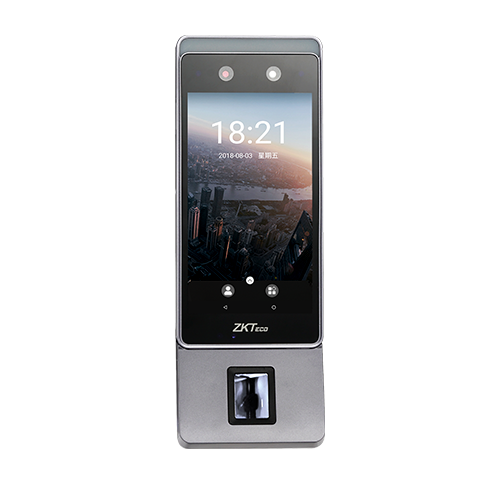

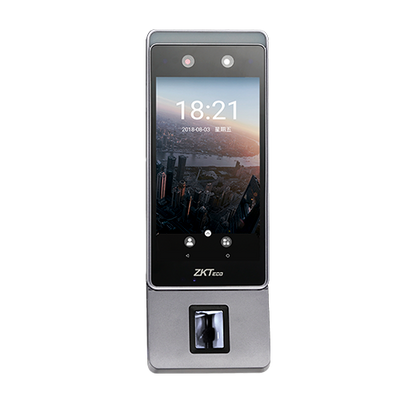

- Horus E1-FP: Face + Fingerprint + RFID
Technical Specifications
| Specification | Details |
|---|---|
| Model | Horus E1 Series |
| Product Type | Visible Light Facial Recognition Access Control & Time Attendance Terminal |
| Facial Recognition Technology | Visible Light Facial Recognition |
| Face Capacity | 6,000 / 10,000 (Optional) |
| Facial Recognition Distance | Up to 3 meters |
| Pose Angle Tolerance | ±30° |
| Camera | 2MP Dual Camera |
| Fingerprint Capacity | Horus E1-FP: 6,000 / 10,000 (Optional) |
| ID Card | Horus E1-RFID: MF & DESFire Optional |
| Verification Mode | Horus E1: Face Horus E1-RFID: Face + RFID Horus E1-FP: Face + Fingerprint + RFID |
| Display | 720 × 1280 IPS Touch LCD |
| Operating System | Android 8.1 |
| CPU | Quad-Core, 1.5GHz |
| Memory | 2GB RAM / 16GB ROM |
| Wi-Fi | 2.4GHz, 5GHz, 802.11a/b/g/n |
| Bluetooth | Bluetooth 4.0 |
| 4G Wireless Broadband | GSM: 850 / 900 / 1800 / 1900 WCDMA: 850 / 900 / 1700 / 1900 / 2100 TDD-LTE: B38 / B40 / B41M FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B |
| USB | USB 2.0, supports up to 16GB USB disk |
| Microphone | Clear voice pickup up to 1 meter |
| Speaker | 90dB at 10cm distance |
| Operating Humidity | 20% – 80% RH |
| Dimensions | 158 × 74 × 15.6 mm |
| Certifications | CE, FCC, RoHS |
Communication & Connectivity
- Wi-Fi 2.4GHz and 5GHz.
- 802.11a/b/g/n wireless networking.
- Bluetooth 4.0.
- Optional 3G connectivity.
- Optional 4G wireless broadband.
- USB 2.0 connectivity.
- Worldwide network band support through compatible 4G configurations.
Wireless Network Support
| Network Type | Supported Bands |
|---|---|
| GSM | 850 / 900 / 1800 / 1900 |
| WCDMA | 850 / 900 / 1700 / 1900 / 2100 |
| TDD-LTE | B38 / B40 / B41M |
| FDD-LTE | B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B |
Applications
- Access Control Systems
- Time Attendance Systems
- Corporate Offices
- Commercial Buildings
- Educational Institutions
- Factories and Industrial Facilities
- Government Buildings
- Secure Entrances
- Multi-Biometric Authentication Systems
Software Compatibility
- ZKBio CVSecurity
- easy TimePro
Why Choose Horus E1?
- Long-range facial recognition of up to 3 meters.
- ±30° pose angle tolerance for convenient authentication.
- Advanced anti-spoofing technology.
- Up to 10,000 facial templates.
- Optional fingerprint and RFID authentication.
- Dual-camera 2MP configuration.
- Android 8.1 operating platform.
- Wi-Fi, Bluetooth and optional 3G/4G connectivity.
- Compact and slim 15.6mm design.
- Compatible with ZKBio CVSecurity and easy TimePro.
