ZKTeco iClock700 Biometric Time Attendance Device

ZKTeco iClock700 Biometric Time Attendance Device

Rs. 18,373.00
Rs. 22,048.00 Rs. 18,373.00
Sale Sold out
Product Details

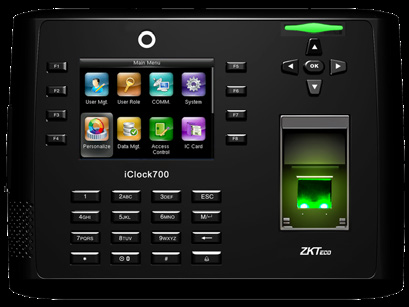

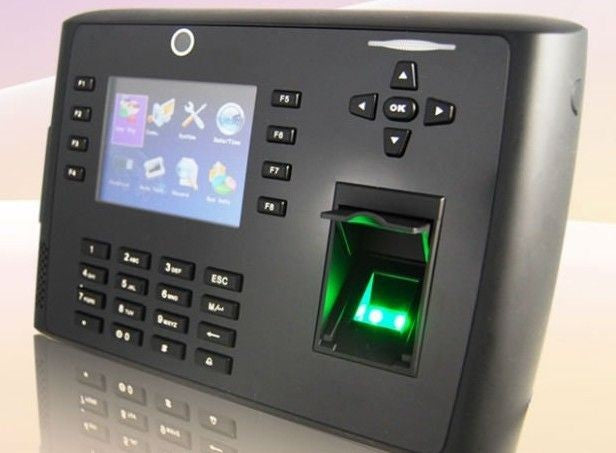

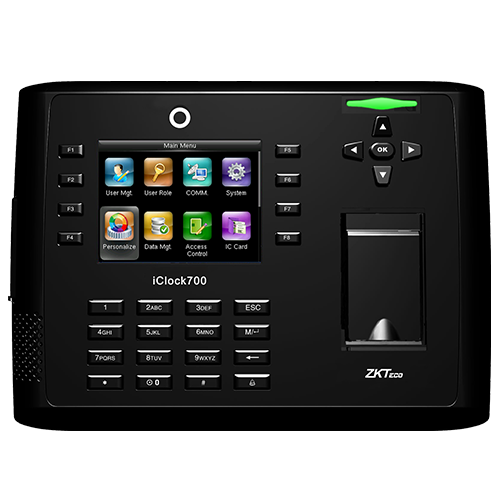

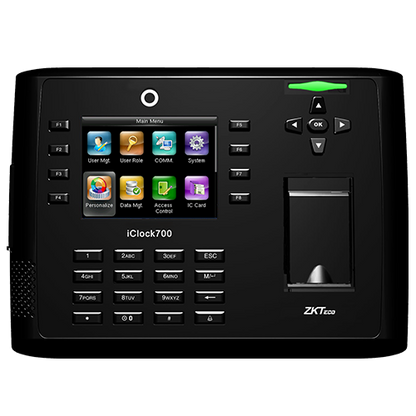

iClock700 Time & Attendance and Access Control Terminal

The iClock700 is a powerful 3.5-inch TFT screen Time & Attendance and Access Control Terminal designed for reliable employee attendance tracking and secure access management. With its user-friendly firmware, improved GUI, faster fingerprint matching, enhanced stability, and better expandability, the iClock700 provides an efficient solution for modern workforce management.

The terminal supports multiple communication interfaces including TCP/IP, RS232/RS485, USB Client, Wi-Fi and 3G/4G, enabling flexible data transmission between the device and management software. It also provides comprehensive access control interfaces for electric locks, door sensors, exit buttons, alarms, door bells, and third-party access control systems.

Key Features

  • 3.5-inch TFT color screen with user-friendly interface.
  • Fingerprint-based time and attendance management.
  • Fingerprint capacity of up to 8,000 users, expandable to 40,000.
  • Card capacity of 10,000, expandable to 40,000.
  • Transaction storage capacity of up to 200,000 records.
  • Fast verification speed of ≤1 second.
  • TCP/IP communication for network-based management.
  • RS232/RS485 interfaces for flexible connectivity.
  • USB Client for convenient data transfer.
  • Wi-Fi and 3G/4G connectivity options.
  • Wiegand input and output support.
  • Comprehensive access control interface.
  • Optional battery backup.
  • Supports ADMS and former SDK.

Product Advantages

  • Combines time attendance and access control in a single terminal.
  • Large fingerprint, card, and transaction storage capacity.
  • Fast fingerprint verification for efficient employee attendance.
  • Multiple communication options provide installation flexibility.
  • Supports both network and USB-based data transmission.
  • Wiegand connectivity enables integration with third-party access control systems.
  • Multiple access control interfaces support complete door management.
  • Suitable for offices, factories, commercial buildings, and other organizations.

Technical Specifications

Specification Details
Product Type Time & Attendance and Access Control Terminal
Display 3.5-inch TFT Screen
Fingerprint Capacity 8,000 (Optional: 40,000)
Card Capacity 10,000 (Optional: 40,000)
Record Capacity 200,000
Verification Speed ≤1 Second
Communication RS232 / RS485
TCP/IP
USB Client
Wi-Fi
3G/4G
Wiegand Signal Input & Output
Access Control Interfaces 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Door Bell
Standard Functions Workcode, SMS, DST, Webserver, Schedule Bell, 9-digit User ID, Self-Service Query, Automatic Status Switch, Photo ID, T9 Input, Anti-passback, Camera, Battery (Optional)
Supported Software ZKBioTime.Net / Easy TimePro
Operating Humidity 20% - 80%
Dimensions 225.2 × 166.0 × 46.3 mm (W × H × D)
Gross Weight 1.94 kg

Main Features

  • 3.5-inch TFT display.
  • 8,000 fingerprint capacity, expandable to 40,000.
  • 10,000 card capacity, expandable to 40,000.
  • 200,000 transaction record capacity.
  • Verification speed of ≤1 second.
  • TCP/IP, RS232/RS485 and USB Client communication.
  • Wi-Fi and 3G/4G connectivity.
  • Wiegand input and output.
  • Electric lock, door sensor, exit button, alarm and door bell interfaces.
  • Anti-passback functionality.
  • Webserver and ADMS support.
  • Optional battery backup.

Applications

  • Employee Time & Attendance
  • Access Control Systems
  • Corporate Offices
  • Factories and Industrial Facilities
  • Commercial Buildings
  • Educational Institutions
  • Warehouses
  • Retail Businesses
  • Small and Medium Enterprises

Why Choose the iClock700?

  • Reliable combination of time attendance and access control.
  • Large capacity for fingerprints, cards, and attendance records.
  • Fast ≤1 second verification speed.
  • Flexible wired and wireless communication options.
  • Supports Wiegand integration with third-party access control systems.
  • Comprehensive door control interfaces.
  • Compatible with ZKBioTime.Net and Easy TimePro software.
  • Suitable for organizations requiring scalable attendance and access management.
Technical Specifications
