ZKTeco IN01-A/ID Biometric Time Attendance Device

ZKTeco IN01-A/ID Biometric Time Attendance Device

Rs. 12,510.44
Rs. 15,013.00 Rs. 12,510.44
Sale Sold out
Product Details

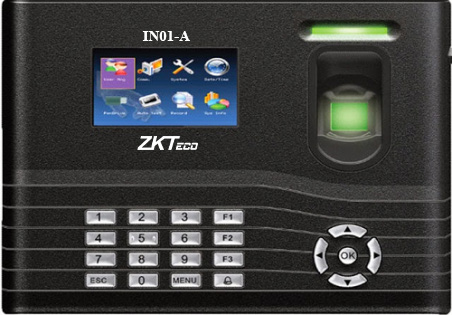

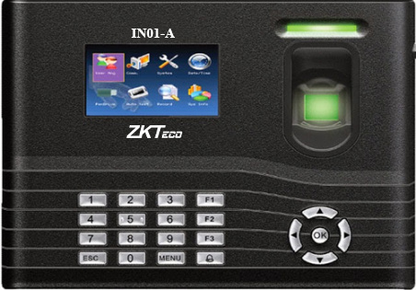

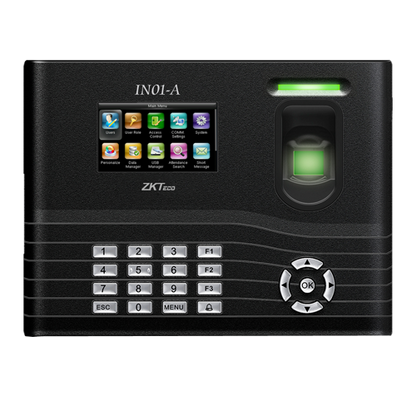

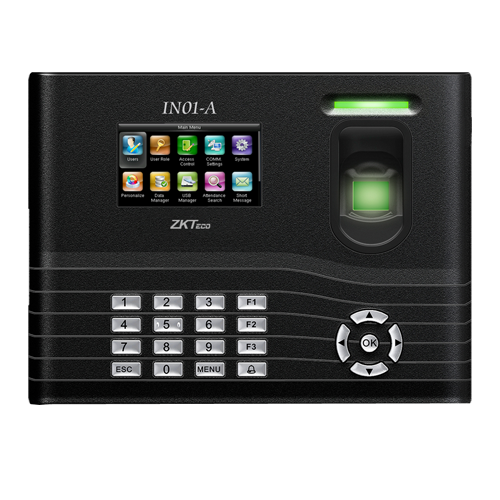

IN01-A/ID – Time Attendance & Access Control Terminal

The ZKTeco IN01-A/ID is a compact Time Attendance & Access Control Terminal featuring a 2.8-inch TFT screen and fingerprint authentication. Built with a new user-friendly firmware and an updated core board, the terminal delivers improved performance, faster identification, and enhanced flexibility for various customization requirements.

The device provides a user-friendly interface for convenient employee attendance and access management. Multiple communication options including TCP/IP, RS232/485, USB Host/Client, and optional Wi-Fi enable smooth data transmission between the terminal and management systems. Optional 3G/4G connectivity and other expansion functions provide additional flexibility for different deployment requirements.

Key Features

  • 2.8-inch TFT screen.
  • Fingerprint-based time attendance and access control.
  • Supports up to 3,000 fingerprint templates.
  • Optional card capacity of up to 10,000 cards.
  • Stores up to 100,000 attendance and access records.
  • New user-friendly firmware for improved operation.
  • Updated core board for enhanced performance.
  • Fast fingerprint identification.
  • Multiple verification modes.
  • TCP/IP communication.
  • RS232/485 communication.
  • USB Host / Client connectivity.
  • Optional Wi-Fi connectivity.
  • Optional 3G/4G communication.
  • Wiegand input and output.

Product Advantages

  • User-friendly interface simplifies daily attendance operations.
  • Improved hardware platform provides enhanced system performance.
  • Fast fingerprint identification helps reduce authentication time.
  • Multiple communication interfaces provide flexible installation options.
  • Optional wireless connectivity supports locations where wired networking is not convenient.
  • High fingerprint and record capacity makes the terminal suitable for small and medium-sized organizations.
  • Optional card technologies provide additional authentication flexibility.
  • Supports both time attendance and access control applications.

Authentication Methods

  • Fingerprint Authentication
  • Card Authentication – Optional
  • Multiple Verification Modes

Technical Specifications

Specification Details
Model IN01-A/ID
Product Type Time Attendance & Access Control Terminal
Display 2.8-Inch TFT Screen
Fingerprint Capacity 3,000
Card Capacity 10,000, Optional
Record Capacity 100,000
Communication TCP/IP, Wi-Fi, USB Host / Client Optional
Serial Communication RS232 / RS485
Wiegand Input & Output
Operating Humidity 20% ~ 80%
Dimensions (L × W × Thickness) 211.5 × 159.4 × 47.8 mm

Standard Functions

  • Work Code
  • SMS
  • DST
  • Self-Service Query
  • Automatic Status Switch
  • Multiple Verification Modes
  • Anti-Passback

Optional Functions

  • ID Card
  • IC Card
  • HID Card
  • 3G / 4G
  • Backup Battery
  • Wi-Fi
  • Webserver
  • Photo ID
  • ADMS
  • Scheduled Bell
  • External Printer
  • External Bell
  • T9 Input

Communication & Connectivity

TCP/IP

TCP/IP communication enables the IN01-A/ID to connect with attendance and access control management software through a wired network.

RS232 / RS485

RS232 and RS485 interfaces provide additional serial communication options for compatible peripherals and system integration.

USB Host / Client

The terminal supports USB Host / Client functionality for convenient data transfer and compatible device connectivity.

Optional Wireless Communication

Optional Wi-Fi and 3G/4G functions provide flexible wireless communication options for installations where wired connectivity is not preferred or available.

Supported Card Technologies

  • ID Card – Optional
  • IC Card – Optional
  • HID Card – Optional

Applications

  • Corporate Offices
  • Small and Medium-Sized Businesses
  • Factories and Industrial Facilities
  • Educational Institutions
  • Retail Stores
  • Warehouses
  • Hotels
  • Government Offices
  • Employee Time Attendance
  • Access Control Systems

Supported Software

  • easy TimePro
  • BioTime Cloud 2.0
  • ZKTime.Net

Why Choose IN01-A/ID?

  • Compact terminal with a clear 2.8-inch TFT screen.
  • Supports 3,000 fingerprint templates.
  • Optional 10,000-card capacity.
  • Stores up to 100,000 records.
  • Supports both time attendance and access control functions.
  • Fast identification with an updated core board and firmware.
  • Multiple communication interfaces including TCP/IP, RS232/485 and USB.
  • Optional Wi-Fi and 3G/4G connectivity.
  • Supports Wiegand input and output.
  • Compatible with multiple ZKTeco attendance management software platforms.

Frequently Asked Questions

How many fingerprints can the IN01-A/ID store?

The IN01-A/ID supports up to 3,000 fingerprint templates.

Does the IN01-A/ID support cards?

Yes. The terminal supports an optional capacity of up to 10,000 cards, with ID, IC, and HID card options available depending on the selected configuration.

How many attendance records can it store?

The IN01-A/ID supports a record capacity of up to 100,000 records.

Does the IN01-A/ID support Wi-Fi?

Yes. Wi-Fi is available as an optional communication function. Optional 3G/4G connectivity is also available.

What communication interfaces are available?

The IN01-A/ID supports TCP/IP, RS232/RS485, USB Host / Client and optional Wi-Fi connectivity. It also provides Wiegand input and output.

Which software supports the IN01-A/ID?

The terminal supports easy TimePro, BioTime Cloud 2.0, and ZKTime.Net.
