ZKTeco

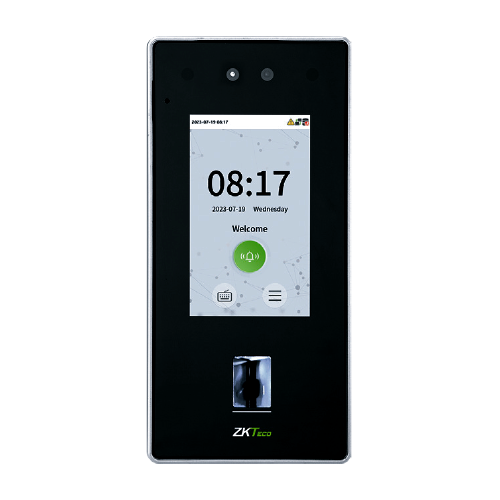

ZKTeco ProBio Plus Face & Fingerprint Multi-Biometric Terminal

ZKTeco ProBio Plus Face & Fingerprint Multi-Biometric Terminal

Rs. 18,373.00
Rs. 22,048.00 Rs. 18,373.00
Sale Sold out
Product Details

ProBio Plus Series

The ProBio Plus Series uses intelligent engineering facial recognition algorithms and the latest computer vision technology. It supports fingerprint, facial, QR code, card, and password verification, providing large capacity and speedy recognition for enhanced security and access control applications.

The series features visible light facial recognition technology and in-glass fingerprint verification. It also supports multiple RFID modules, video door phone functionality, and IP65 waterproof and dustproof protection.

Key Features

  • Visible light facial recognition technology.
  • In-glass fingerprint verification.
  • Darklight facial recognition without supplement light.
  • Supports Face, Fingerprint, Scramble QR Code, Card, and Password authentication.
  • Supports 125kHz ID card and 13.56MHz IC card technologies.
  • Supports optional multi-tech RFID modules.
  • Up to 3,000 facial templates and 3,000 fingerprint templates as standard.
  • Supports up to 6,000 facial and fingerprint templates with optional capacity.
  • Up to 3,000 RFID cards as standard.
  • Supports up to 200,000 transaction records.
  • HD video door phone through ZSmart mobile App / SIP Protocol.
  • IP65 waterproof and dustproof protection.

Product Advantages

  • Multiple biometric and credential authentication methods in a single terminal.
  • Visible light facial recognition provides convenient touchless authentication.
  • In-glass fingerprint sensor provides integrated fingerprint verification.
  • Supports multiple RFID technologies for flexible credential deployment.
  • Fast facial recognition of less than 0.35 second.
  • Fast fingerprint recognition of less than 0.5 second.
  • Supports Bluetooth, TCP/IP, RS485, USB, and Wiegand communication.
  • Suitable for access control and time attendance applications.
  • IP65 protection makes the terminal suitable for demanding installation environments.

Technical Specifications

Specification Details
Product Series ProBio Plus Series
Display 4" TFT Color Touch LED Screen, 480 × 800
Camera Binocular Camera @ 2MP
Operating System Linux
CPU Dual Core @ 1GHz
RAM 512MB
ROM 8GB
Speaker 8 ohm @ 1W
Microphone 1 × Microphone
Sensitivity: -32dB
Omni-directional
Signal-to-Noise Ratio: 58dB
Impedance: 2.2kΩ
Supplement Light No
Fingerprint Sensor In-Glass Fingerprint
Authentication Method ProBio Plus: Face / Fingerprint / Card / Password (Virtual Keypad)

ProBio Plus-QR: Face / Scramble QR Code / Card / Password (Virtual Keypad)

ProBio Plus-RFID: Face / Card / Password (Virtual Keypad)
Biometric Algorithms ProBio Plus: ZKFace V3.9 & ZKFinger V10.0
ProBio Plus-QR: ZKFace V3.9
ProBio Plus-RFID: ZKFace V3.9
Face Template Capacity 3,000 (1:N) Standard / 6,000 (1:N) Optional
Fingerprint Template Capacity 3,000 (1:N) Standard / 6,000 (1:N) Optional
User Capacity 3,000 (1:N) Standard / 10,000 (1:N) Optional
RFID Card Capacity 3,000
Transaction Capacity 200,000 (1:N)
Facial Recognition Distance 50cm to 200cm @ Face
Verification Speed Less than 0.35 second (Facial Recognition)
Less than 0.5 second (Fingerprint Recognition)
Card Type ProBio Plus:
ID Card @ 125kHz (Optional)
HID Prox @ 125kHz (Optional)
IC Card @ 13.56MHz (Optional)
Felica Card @ 13.56MHz (Optional)
Optional Multi-Tech Module: ID & IC & DESFire EV1/EV2

ProBio Plus-QR:
ID Card @ 125kHz (Optional)
HID Prox @ 125kHz (Optional)
IC Card @ 13.56MHz (Optional)
Felica Card @ 13.56MHz (Optional)
Optional Multi-Tech Module: ID & IC & DESFire EV1/EV2

ProBio Plus-RFID:
ID Card @ 125kHz (Standard)
HID Prox @ 125kHz (Optional)
IC Card @ 13.56MHz (Optional)
Felica Card @ 13.56MHz (Optional)
Optional Multi-Tech Module: ID & IC & DESFire EV1/EV2
QR Code ProBio Plus-QR supports dynamic QR codes on the ZKBio CVSecurity mobile application.
Supports QR code, PDF417, Data Matrix, MicroPDF417, and Aztec scanning in third-party development projects.
Communication Bluetooth BLE5.0
Wiegand Input & Output ×1
RS485: ZKTeco RS485 ×1
USB Type A ×1 (USB Drive Only)
Aux Input ×1
Electric Lock ×1
Door Sensor ×1
Exit Button ×1
Alarm Output ×1
Wired Doorbell ×1
Dimensions 183mm × 88mm × 20.5mm (L × W × H)
Power Supply DC 12V 3A (Optional)
Optional Functions  SRB, WorkCode, Video Door Phone, SIP Client
Standard Features ADMS, DST, 14-digit User ID, T9 Keyboard (Input), Photo Capture, Event Photo Capture, Record Query, Tamper Switch Alarm, Automatic Status Switch, Multiple Verification Methods, Anti-Passback, Wired Doorbell, Schedule Bell, HTTPS / SSH Backend Access, AC Push and TA Push Protocol Switch
Supported Software Software: ZKBio CVSecurity, Easy TimePro, Easy WDMS
Mobile App: ZKBio Zlink / ZSmart
Cloud Service: ZKBio Zlink
Video Door Phone HD video door phone via ZSmart mobile App / SIP Protocol
Protection Rating IP65 Waterproof and Dustproof
Certifications ISO14001, ISO9001, CE, FCC, RoHS

Main Features

  • 4-inch TFT color touch LED screen.
  • 2MP binocular camera.
  • Visible light facial recognition.
  • In-glass fingerprint sensor.
  • Face and fingerprint authentication.
  • Scramble QR code authentication on ProBio Plus-QR.
  • Multiple RFID card technologies.
  • Up to 6,000 facial templates with optional capacity.
  • Up to 6,000 fingerprint templates with optional capacity.
  • Up to 10,000 users with optional capacity.
  • 200,000 transaction capacity.
  • Bluetooth BLE5.0 connectivity.
  • Wiegand and RS485 communication.
  • Video door phone and SIP Client support.
  • IP65 waterproof and dustproof protection.

Applications

  • Time Attendance Systems
  • Access Control Systems
  • Corporate Offices
  • Commercial Buildings
  • Industrial Facilities
  • Educational Institutions
  • Healthcare Facilities
  • Secure Entry Systems
  • Employee Authentication
  • Multi-Factor Authentication Systems

Why Choose ProBio Plus Series?

  • Combines facial and fingerprint biometrics with card and password authentication.
  • Fast facial verification in less than 0.35 second.
  • Fast fingerprint verification in less than 0.5 second.
  • Supports multiple RFID technologies for flexible deployment.
  • Optional QR-based authentication provides additional credential flexibility.
  • Large 200,000 transaction capacity.
  • Multiple wired and wireless communication interfaces.
  • Supports video door phone and SIP-based communication.
  • Compact 183 × 88 × 20.5mm design.
  • IP65 waterproof and dustproof protection.
Technical Specifications
