ZKTeco

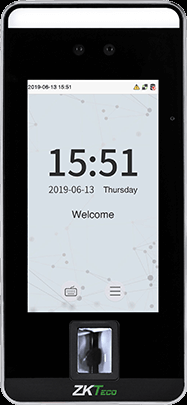

ZKTeco FaceDepot 4A(ID) Face Recognition Terminal

Rs. 30,063.00

~~Rs. 36,076.00~~ Rs. 30,063.00

Sale Sold out

Product Details

FaceDepot 4A/ID Hybrid Biometric Time Attendance & Access Control Terminal

The FaceDepot 4A/ID is a Linux-based hybrid biometric time attendance and access control terminal featuring ZKTeco's advanced Visible Light Facial Recognition technology. It combines facial recognition, fingerprint, card and password authentication into a single compact terminal for secure and flexible identity verification.

Powered by deep learning technology, the FaceDepot 4A/ID provides visible light facial recognition from 0.3 to 2 meters, including operation in dimly lit environments without supplementary lighting. Enhanced pose-angle tolerance and anti-spoofing technology help provide reliable and secure biometric authentication.

The terminal supports optional Wi-Fi, 4G, PoE and backup battery functionality, while TCP/IP, Wiegand, RS485 and USB interfaces provide flexible connectivity for modern access control and time attendance installations.

Key Features

Visible Light Facial Recognition technology.
Supports masked individual identification.
Facial recognition from 0.3 to 2 meters.
Works in dimly lit environments without supplementary light.
Advanced anti-spoofing protection against photo, video and 3D mask attacks.
Multiple authentication methods: Face / Fingerprint / Card / Password.
In-glass fingerprint sensor.
2MP WDR binocular camera.
10,000 face template capacity.
10,000 fingerprint template capacity.
10,000 user capacity.
Optional 125kHz ID, HID Prox and 13.56MHz IC card support.
Optional dual-frequency ID & IC & DESFire EV1/EV2 card module.
TCP/IP, Wiegand, RS485 and USB connectivity.
Optional Wi-Fi and 4G communication.
Optional PoE and backup battery.

Product Advantages

Combines facial and fingerprint biometrics with card and password verification.
Visible Light Facial Recognition provides touchless authentication.
Extended recognition distance of 0.3 to 2 meters.
Supports reliable facial recognition in low-light environments.
Advanced anti-spoofing technology improves biometric security.
Large 10,000-user capacity makes it suitable for medium and large installations.
Flexible communication options simplify integration with access control systems.
Optional Wi-Fi, 4G and PoE provide flexible installation possibilities.
Suitable for both time attendance and access control applications.

Technical Specifications

Specification	Details
Model	FaceDepot 4A/ID
Product Type	Hybrid Biometric Time Attendance & Access Control Terminal
Operating System	Linux
Display	4.3" TFT Color Touch LED Screen, 480 × 800
Authentication Method	Fingerprint / Face / Card / Password (Virtual Keypad)
Biometrics Algorithm	ZKFace V6.0 ZKFingerprint V10.0
Camera	Binocular Camera @ 2MP WDR
Fingerprint Sensor	In-Glass Fingerprint Sensor
Face Template Capacity	10,000 (1:N) Standard
Fingerprint Template Capacity	10,000 (1:N) Standard
Card Capacity	10,000 (1:N) Optional
User Capacity	10,000 (1:N) Standard
Card Types	ID Card @ 125kHz (Optional) HID Prox @ 125kHz (Optional) IC Card @ 13.56MHz (Optional)
Multi-Tech Card Module	ID & IC & DESFire EV1/EV2 125kHz & 13.56MHz Dual Frequency
Communication	TCP/IP Wi-Fi @ 2.4GHz / 5GHz (Optional) Wiegand Input & Output RS485 USB Type-A
Access Control Interface	Auxiliary Input Electric Lock Door Sensor Exit Button Alarm Output
Hardware	Quad Core @ 1.2GHz CPU 1GB RAM 8GB ROM 8 Ohm @ 1W Speaker
Supplement Light	No
Dimension	193.00 × 100.00 × 32.40mm (L × W × H)
Net Weight	0.402kg
Gross Weight	0.447kg
Power Supply	DC 12V 3A
PoE	IEEE 802.3af (Optional)
Backup Battery	Optional
Operating Temperature	0°C to 45°C
Operating Humidity	20% to 80% RH (Non-condensing)
Certifications	ISO14001, ISO9001, CE, FCC, RoHS
Supported Software	easy TimePro / ZKBio CVSecurity (T&A Module)

Main Features

Visible Light Facial Recognition.
Masked face identification.
0.3 to 2 meter facial recognition distance.
Low-light facial recognition without supplementary light.
2MP WDR binocular camera.
In-glass fingerprint sensor.
10,000 face templates.
10,000 fingerprint templates.
10,000 users.
Optional 10,000 cards.
Face, fingerprint, card and password authentication.
125kHz ID card support.
125kHz HID Prox support.
13.56MHz IC card support.
DESFire EV1/EV2 dual-frequency card module option.
TCP/IP communication.
Wiegand input and output.
RS485 communication.
USB Type-A interface.
Optional Wi-Fi and 4G.
Optional PoE and backup battery.

Security & Anti-Spoofing

Visible Light Facial Recognition

Advanced visible light facial recognition technology enables touchless authentication from approximately 0.3 to 2 meters.

Low-Light Recognition

The terminal can perform visible light facial recognition in dimly lit environments without supplementary lighting.

Anti-Spoofing Protection

The facial recognition system incorporates protection against print attacks, including laser, color and black-and-white photographs, video attacks and 3D mask attacks.

Multiple Verification Modes

Users can authenticate through facial recognition, fingerprint, RFID card or password according to the security requirements of the installation.

Connectivity & Access Control

TCP/IP: Network communication for centralized management.
Wi-Fi: Optional wireless connectivity at 2.4GHz / 5GHz.
4G: Optional mobile network communication.
Wiegand: Input and output interface for access control integration.
RS485: Communication with compatible ZKTeco devices.
USB: Type-A interface for USB drive operations.
PoE: Optional IEEE 802.3af support.
Door Control: Supports electric lock, door sensor and exit button.
Alarm: Dedicated alarm output for security integration.

Applications

Corporate Offices
Business Parks
Factories and Industrial Facilities
Schools and Educational Institutions
Government Buildings
Hospitals and Healthcare Facilities
Hotels and Commercial Buildings
Warehouses
Data Centers
Secure Access Control Areas
Employee Time Attendance
Multi-Modal Biometric Authentication

Why Choose FaceDepot 4A/ID?

Advanced visible light facial recognition technology.
Supports facial recognition in low-light conditions without supplementary light.
Multiple authentication options in one compact device.
10,000 face and fingerprint template capacity.
10,000-user capacity for larger deployments.
Enhanced anti-spoofing protection.
Optional RFID technologies for flexible credential management.
Optional Wi-Fi, 4G and PoE connectivity.
Integrated access control interfaces for door security.
Compatible with easy TimePro and ZKBio CVSecurity.

Package Highlights

FaceDepot 4A/ID Biometric Terminal
4.3-inch TFT Color Touch Display
2MP WDR Binocular Camera
In-Glass Fingerprint Sensor
Access Control Interface
Power Supply
Installation Accessories

Ideal For

Visible Light Facial Recognition Terminal
Hybrid Biometric Access Control
Fingerprint Time Attendance
Facial Recognition Attendance
RFID Access Control
Multi-Biometric Authentication
Touchless Access Control
Employee Attendance Management
Commercial Security Systems
Enterprise Access Control

Technical Specifications
