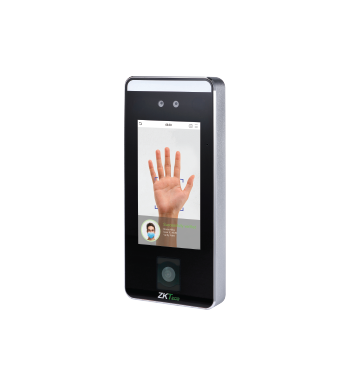

ZKTeco SpeedFace-V5L+QR Face & QR Code Attendance Terminal
ZKTeco SpeedFace-V5L+QR Face & QR Code Attendance Terminal
Couldn't load pickup availability
Product Details

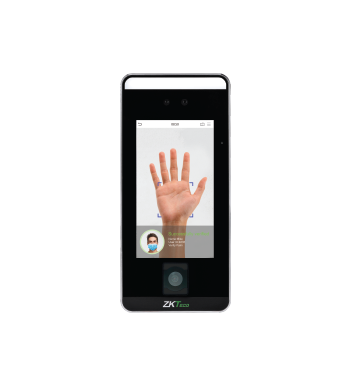

SpeedFace-V5L[QR] – QR Code & Biometric Verification Terminal
The SpeedFace-V5L[QR] is a QR code and biometric verification terminal designed for secure and convenient access control and time attendance applications. It combines Visible Light Facial Recognition, palm, QR code, card and password authentication to provide flexible multi-biometric verification.
The terminal supports touchless biometric authentication and masked individual identification, helping provide a more hygienic verification experience. Its integrated barcode scanner supports multiple 2D barcode formats, while the anti-spoofing algorithm is designed to protect against print, video and 3D mask attacks.
Key Features
- QR Code and biometric verification terminal.
- Visible Light Facial Recognition technology.
- Touchless facial and palm biometric authentication.
- Mask detection and masked individual identification.
- Supports Face, Palm, QR Code, Card and Password verification.
- 2D barcode scanning for QR Code, PDF417, Data Matrix, MicroPDF417 and Aztec.
- Scramble QR code support through the ZKBio CVAccess Mobile App.
- Advanced anti-spoofing algorithm for enhanced biometric security.
- Adjustable brightness LED supplement light.
- 125 kHz EM card and 13.56 MHz IC card options.
Multiple Verification Methods
Provides touchless facial authentication and supports masked individual identification for convenient and hygienic verification.
Supports palm biometric authentication with a customized ArmaturaPalm algorithm and a capacity of up to 3,000 palm templates.
The integrated barcode scanner supports QR Code and several 2D barcode formats, including PDF417, Data Matrix, MicroPDF417 and Aztec.
Supports 125 kHz EM cards, with 13.56 MHz IC cards available as an optional function.
Users can authenticate through password verification for additional flexibility in access control and attendance applications.
Anti-Spoofing & Security
- Anti-spoofing protection against laser-printed photos.
- Protection against color and black-and-white photo attacks.
- Protection against video attacks.
- Protection against 3D mask attacks.
- Mask detection function.
- Multiple verification methods for flexible authentication.
- Tamper switch alarm.
- Anti-passback support.
- Access levels, groups and holiday management.
QR Code & Barcode Scanning
- QR Code
- PDF417
- Data Matrix
- MicroPDF417
- Aztec
- Scramble QR codes through the ZKBio CVAccess Mobile App
Technical Specifications
| Specification | Details |
|---|---|
| Model | SpeedFace-V5L[QR] |
| Product Type | QR Code and Biometric Verification Terminal |
| Display | 5-inch Touch Screen |
| Face Template Capacity | 6,000 (Optional: 10,000) |
| Palm Capacity | 3,000 (Customized) |
| Card Capacity | 10,000 |
| Transaction Capacity | 200,000 |
| Operating System | Linux |
| CPU | 900MHz Dual Core |
| Memory | 1GB RAM / 8GB Flash |
| Camera | 2MP WDR Low Light Camera |
| Supplement Light | Adjustable Brightness LED |
| Biometric Authentication Methods | Face / Palm / QR Code / Card / Password |
| QR Sensor | QR Code, PDF417, Data Matrix, MicroPDF417, Aztec |
| Facial Recognition Speed | ≤1 second |
| Biometric Algorithm | ZKFace 3.9 & ArmaturaPalm (Customized) |
| Card Type | 125 kHz EM Card / 13.56 MHz IC Card (MF, Optional) |
| Communication | TCP/IP, Wi-Fi (Optional), Wiegand Input / Output, RS485 |
| Access Control Interface | 3rd-Party Electric Lock, Door Sensor, Exit Button, Auxiliary Input, Auxiliary Output (Alarm) |
| Standard Functions | ID Card, ADMS, T9 Input, DST, Camera, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods |
| Optional Functions | 13.56 MHz IC Card (MF), Wi-Fi |
| Power Supply | DC 12V 3A |
| Operating Temperature | -10°C to 45°C / 14°F to 113°F |
| Operating Humidity | 10% to 90% |
| Dimensions | 91.93 × 202.93 × 21.5 mm (W × H × D) |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity / BioTime Cloud / BioTime 9.5 |
| Mobile Applications | ZKBio TimeCloud / ZSmart |
Communication & Connectivity
- TCP/IP communication.
- Optional Wi-Fi connectivity.
- Wiegand input and output.
- RS485 communication.
- Third-party electric lock interface.
- Door sensor connection.
- Exit button connection.
- Auxiliary input.
- Auxiliary alarm output.
Access Control Functions
- Third-party electric lock connection.
- Door sensor support.
- Exit button support.
- Auxiliary input.
- Alarm output.
- Access levels and groups.
- Holiday management.
- Anti-passback.
- Tamper switch alarm.
- Multiple verification methods.
Applications
- Access Control Systems
- Time & Attendance
- Corporate Offices
- Commercial Buildings
- Factories and Industrial Facilities
- Educational Institutions
- Secure Entry Points
- QR Code-Based Access Control
- Touchless Biometric Authentication
Why Choose SpeedFace-V5L[QR]?
- Combines facial, palm, QR code, card and password verification in one terminal.
- Supports touchless biometric authentication for improved hygiene.
- Integrated 2D barcode scanner supports multiple barcode formats.
- Supports scramble QR codes through the ZKBio CVAccess Mobile App.
- Visible Light Facial Recognition provides convenient touchless face authentication.
- Mask detection supports identification of masked individuals.
- Advanced anti-spoofing technology helps protect against photo, video and 3D mask attacks.
- Up to 10,000 face templates with the optional capacity.
- Up to 3,000 palm templates in the customized configuration.
- Supports up to 10,000 cards and 200,000 transactions.
