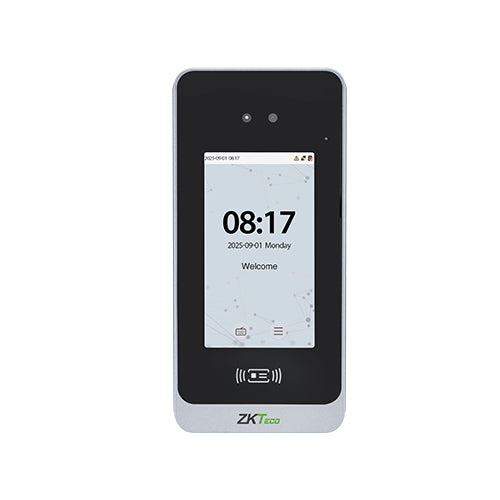

ZKTeco SpeedFace M4 AI Face Recognition Attendance Terminal

SpeedFace M4 – Visible Light Facial Authentication Terminal

The ZKTeco SpeedFace M4 is a Visible Light Facial Authentication Terminal designed for advanced time attendance and access control applications. Powered by ZKTeco's customized CPU and intelligent facial authentication algorithm, the terminal provides fast and reliable biometric verification with support for face, card, password, and optional palm authentication.

The SpeedFace M4 features a 5-inch ISP color LCD screen with 1280 × 720 resolution and a 2MP WDR binocular camera. It supports up to 10,000 face templates and 10,000 users, while optional palm recognition supports up to 3,000 palm templates. Additional functions include mask detection, dynamic QR code authentication, optional Wi-Fi and PoE, and advanced access control interfaces.

Key Features

• Visible light facial authentication technology.
• 2MP WDR binocular camera.
• 5-inch ISP color LCD display with 1280 × 720 resolution.
• Face, card, password, and optional palm authentication.
• Face template capacity of up to 10,000.
• Optional palm template capacity of up to 3,000.
• RFID card capacity of up to 10,000.
• User capacity of up to 10,000.
• Transaction capacity of 200,000, with optional 500,000 capacity.
• Fast facial authentication in less than 0.1 seconds.
• Mask detection function.
• Dynamic QR code authentication through ZKBio CVAccess mobile application.
• Optional Wi-Fi and PoE connectivity.
• IP66 waterproof and dustproof protection.

Product Advantages

• Combines facial recognition, RFID, password, and optional palm authentication in one terminal.
• High-capacity biometric storage for demanding access control and attendance applications.
• Fast facial authentication helps support high-traffic entrances.
• 2MP WDR binocular camera provides reliable visible light facial image capture.
• Optional multi-technology card module supports multiple card technologies.
• Dynamic QR code support provides an additional touchless authentication option.
• Optional PoE simplifies power and network installation.
• IP66 protection allows installation in suitable indoor and outdoor environments.
• Supports both time attendance and access control applications.

Authentication Methods

• Facial Authentication
• RFID Card Authentication
• Password Authentication via Virtual Keypad
• Palm Authentication – Optional
• Dynamic QR Code Authentication via ZKBio CVAccess Mobile Application

Card Compatibility

• ID Card @ 125 kHz – Standard
• IC Card @ 13.56 MHz – Optional
• HID Prox @ 125 kHz – Optional
• FeliCa Card @ 13.56 MHz – Optional
• ID & IC & DESFire EV1 / EV2 Multi-Technology Module – Optional

Technical Specifications

Communication & Access Control

• TCP/IP communication.
• Optional dual-band Wi-Fi connectivity.
• Wiegand input and output.
• ZKTeco RS485 communication.
• Auxiliary input.
• Electric lock interface.
• Door sensor interface.
• Exit button interface.
• Alarm interface.
• 12V output.
• Optional IEEE 802.3at PoE.

Standard Functions

• ADMS
• Photo Capture
• Event Photo Capture
• Up to 14-Digit User ID
• Access Levels
• Groups
• Holidays
• Anti-Passback
• Record Query
• Schedule Bell
• Tamper Switch Alarm
• Automatic Status Switch
• Multiple Verification Methods
• T9 Keyboard Input
• AC Push and TA Push Protocol Switch
• HTTPS / SSH Backend Access
• Mask Detection
• Dynamic QR Code

Optional Functions

• Webserver
• Video Door Phone
• SIP Client Version 2.0
• ONVIF Support
• Wi-Fi
• PoE
• SRB
• External Bell

Video Intercom

Supported Software

• ZKBio CVAccess – On-Premise Access Control
• ZKBio Time – On-Premise Time Attendance
• ZKBio Zlink – Cloud-Based Management
• ZKBio Zlink Web Portal
• ZKBio Zlink Mobile Application
• BioTalk Pro – Video Intercom

Applications

• Corporate Offices
• Commercial Buildings
• Factories and Industrial Facilities
• Educational Institutions
• Government Buildings
• Warehouses
• Hotels
• Residential Buildings
• Time Attendance Systems
• Access Control Systems
• High-Traffic Entrance Points
• Indoor and Outdoor Security Installations

Why Choose SpeedFace M4?

• Fast visible light facial authentication with less than 0.1-second authentication speed.
• Supports up to 10,000 face templates and 10,000 users.
• Optional palm recognition with up to 3,000 palm templates.
• Supports multiple RFID card technologies.
• Built-in mask detection functionality.
• Dynamic QR code authentication provides an additional touchless verification option.
• Optional Wi-Fi and PoE provide flexible installation and networking.
• IP66 protection makes the terminal suitable for demanding environments.
• Supports advanced access control and time attendance functions.
• Compatible with ZKBio CVAccess, ZKBio Time, and ZKBio Zlink platforms.
