ZKTeco F22 Fingerprint Access Control & Attendance Terminal – Slim, Wi-Fi, 3,000 Fingerprints
ZKTeco F22 Fingerprint Access Control & Attendance Terminal – Slim, Wi-Fi, 3,000 Fingerprints

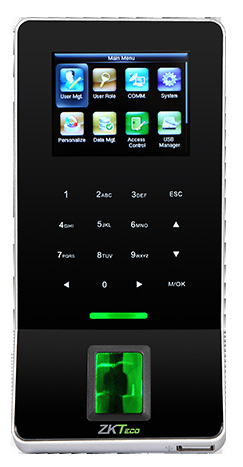

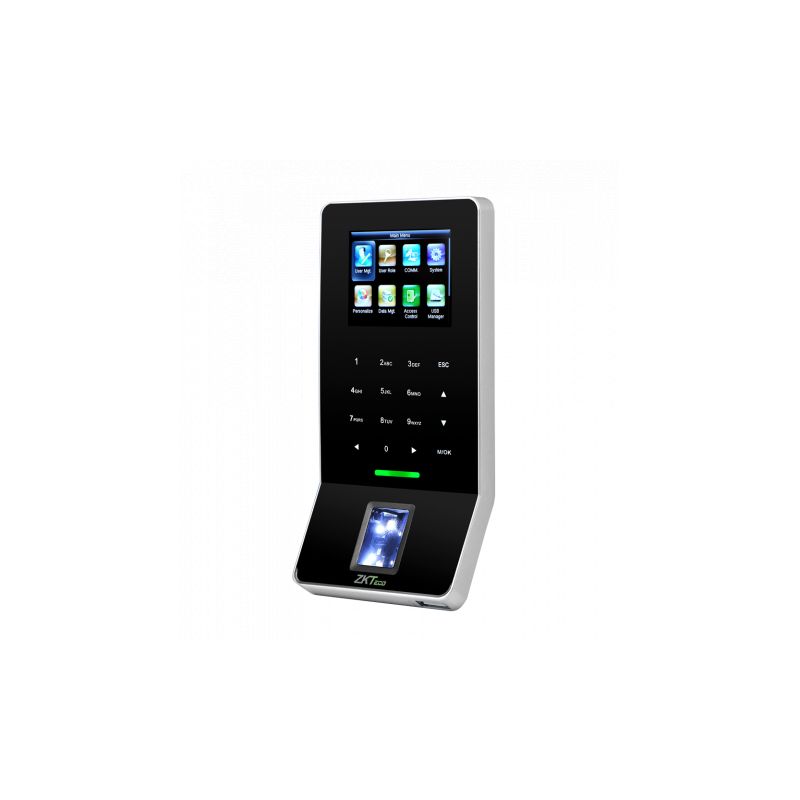

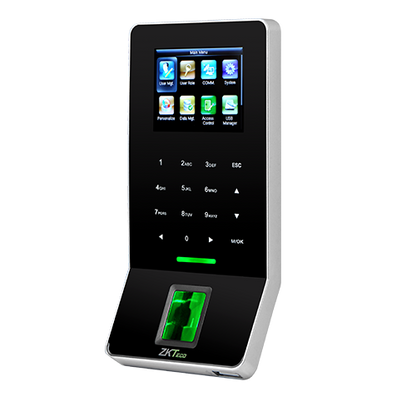

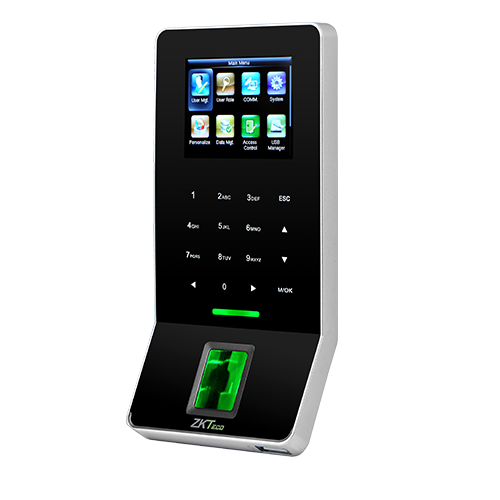

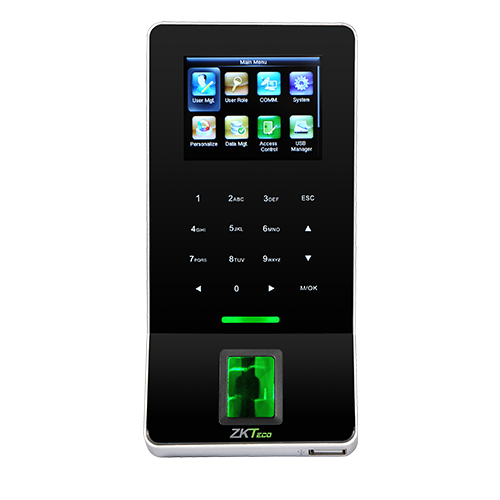

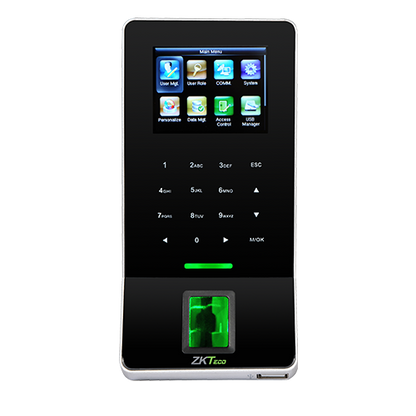

The ZKTeco F22 is a slim fingerprint terminal for door access control and time attendance, with a 2.4-inch colour screen and a Z-ID fingerprint sensor.
Key specifications
| Fingerprint capacity | 3,000 |
| Card capacity | 5,000 (optional ID or IC) |
| Record capacity | 1,00,000 |
| Display | 2.4-inch TFT colour |
| Communication | TCP/IP, Wi-Fi, RS232/485, USB host |
| Wiegand | Input and output |
| Power | 12V DC 3A |
| Dimensions | 158.5 × 78 × 19.4 mm |
| Operating temperature | 0 °C to 45 °C |
Who should purchase it?
Offices, server rooms and cabins that need a slim 78 mm-wide fingerprint reader on a door, with attendance recording built in.
How many users can it support?
Up to 3,000 fingerprints, 5,000 ID or IC cards (optional) and 1,00,000 records.
Which biometric methods does it support?
Fingerprint (Z-ID sensor, ZKFinger V10.0 algorithm), with ID or IC card as an option.
Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?

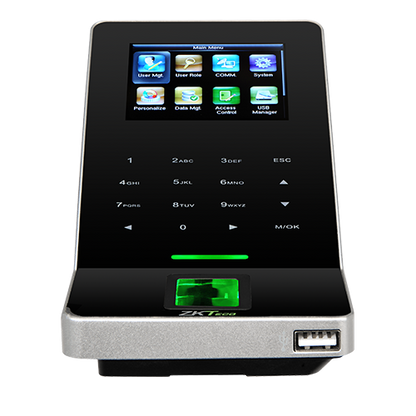

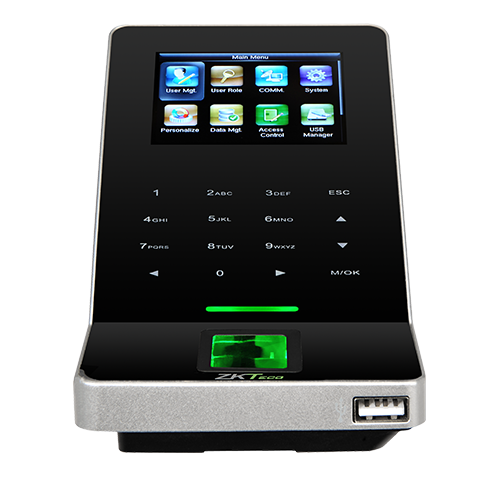

TCP/IP, Wi-Fi, RS232/485 and USB host, plus Wiegand input and output.
Does it support an attendance application?
ZKTeco lists ADMS cloud push as an optional function.
Which software is compatible?
ZKBio Access software and the PUSH AC SDK. AmpleTrails can integrate the attendance data with your payroll or HRMS.
Does it support access control?

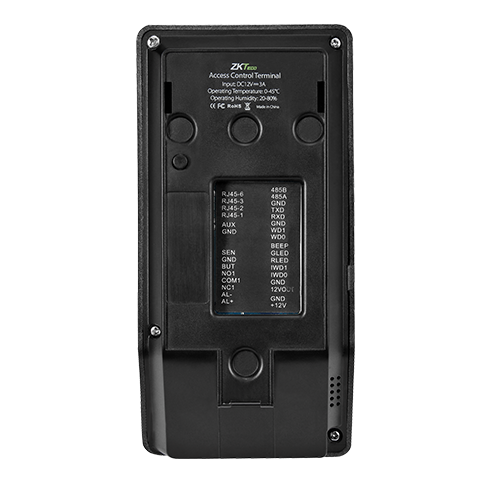

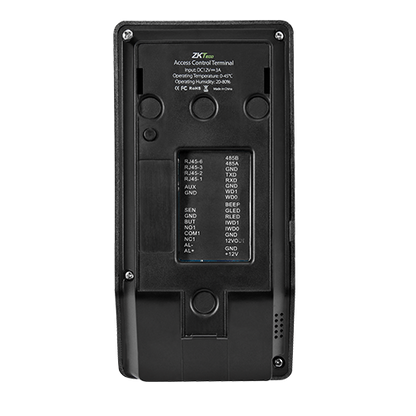

Yes. It drives a third-party electric lock and supports a door sensor, exit button and alarm, with Wiegand in/out, an auxiliary input for linkage, and anti-passback.
What are the installation requirements?
Powered by 12V DC 3A. Operating range 0 °C to 45 °C, 20% to 80% humidity. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.
What is included in the box?
The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.
What is the warranty?
Supplied with the manufacturer warranty. The exact warranty term is stated on your invoice, and the AmpleTrails support team handles warranty claims for you.
What alternatives are available?
- ZKTeco SF1005 (WiFi + PoE) – fingerprint terminal with physical keypad, PoE and IP65
- ZKTeco SF100 – compact fingerprint reader for tight spaces
- ZKTeco MA300 – rugged metal housing for outdoor doors
- Browse all biometric attendance machines or the full ZKTeco attendance machines.
Buy with installation and support
AmpleTrails supplies, installs and supports ZKTeco F22 across India. Call +91 90347 57673 or WhatsApp us for a quotation including installation.
Specifications: ZKTeco India official product page. Specifications may change with manufacturer revisions; our team confirms the current version on your quotation.
