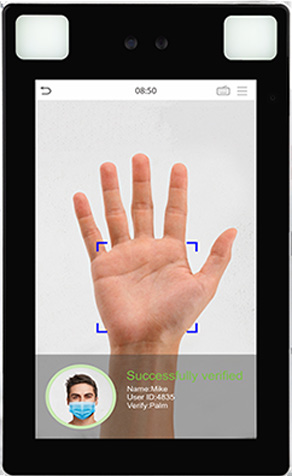

ZKTeco FaceDepot-8AL Outdoor IP66 Face Recognition Terminal
ZKTeco FaceDepot-8AL Outdoor IP66 Face Recognition Terminal
Couldn't load pickup availability
Product Details
ZKTeco FaceDepot 8AL Facial Recognition Terminal
The ZKTeco FaceDepot 8AL is a high-performance facial recognition terminal designed for advanced access control and secure identity verification. Featuring a ZKTeco-customized CPU and intelligent facial recognition technology, the terminal provides fast and reliable authentication with facial recognition speeds of less than 0.3 seconds.
FaceDepot 8AL supports a large facial template capacity of up to 50,000 templates and incorporates powerful face liveness detection technology to help protect against fake photo and video attacks. Its touchless identification capability provides a convenient and hygienic authentication experience.
Designed for demanding environments, the FaceDepot 8AL supports operation in strong lighting conditions of up to 50,000 lux and a wide temperature range. With IP68 dust and waterproof protection and IK04 protection, it is suitable for both indoor and outdoor access control applications.
Key Features
- High-speed facial recognition in less than 0.3 seconds.
- Touchless facial user identification.
- Supports up to 50,000 facial templates.
- Face liveness detection for enhanced anti-spoofing protection.
- Protection against fake photo and video attacks.
- ZKTeco-customized high-performance CPU.
- Supports operation under strong lighting conditions up to 50,000 lux.
- IP68-rated dust and waterproof protection.
- IK04-rated physical protection.
- Suitable for indoor and outdoor installation.
- Supports RFID, fingerprint, barcode and QR-code reader integration through compatible interfaces.
- Supports Wiegand, RS485 and RS232 connectivity.
- Supports ZKBioSecurity software.
- Supports event snapshots.
- Supports anti-passback, access levels, groups and holidays.
- Supports tamper switch alarm and duress mode.
Product Advantages
- Fast facial authentication reduces waiting time at controlled entrances.
- Large template capacity makes the terminal suitable for organizations with a high number of users.
- Touchless authentication improves convenience and reduces physical interaction.
- Advanced liveness detection provides enhanced protection against facial spoofing attempts.
- IP68 protection enables deployment in demanding outdoor environments.
- Wide operating temperature capability supports installations exposed to harsh environmental conditions.
- Multiple communication and reader interfaces provide flexible access control integration.
- Large transaction storage supports long-term event management and access records.
Facial Recognition Technology
High-Speed Face Recognition
The FaceDepot 8AL provides facial recognition at speeds of less than 0.3 seconds, enabling fast authentication for busy entrances and controlled access points.
Large Face Template Capacity
The terminal supports 30,000 facial templates for 1:N identification, with an optional capacity of up to 50,000 facial templates.
Face Liveness Detection
Built-in face liveness detection helps distinguish genuine users from presentation attacks involving photographs and videos, providing an additional layer of identity security.
Strong-Light Performance
The FaceDepot 8AL is designed to operate under strong lighting conditions of up to 50,000 lux, making it suitable for challenging installation environments.
Access Control & Integration
The FaceDepot 8AL provides a range of interfaces for integration with access control equipment and external authentication devices.
- Lock relay output.
- Alarm output.
- Auxiliary input.
- Exit button connection.
- Door sensor connection.
- Wiegand interface.
- RS485 interface.
- RS232 slave reader support.
- Compatibility with fingerprint, RFID, barcode and QR-code readers.
- Security relay box compatibility.
- ZKBioSecurity software compatibility.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FaceDepot 8AL |
| Product Type | Facial Recognition Access Control Terminal |
| Facial Recognition Algorithm | ZKLiveFace 5.8 |
| Facial Recognition Speed | Less than 0.3 seconds |
| Face Capacity | 30,000 (1:N) / 50,000 (Optional) |
| Card Capacity | 50,000 |
| Transaction Capacity | 1,000,000 |
| Event Capacity | 10,000 |
| Face Liveness Detection | Supported |
| Strong Light Operation | Up to 50,000 lux |
| Access Control Interface | Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor |
| Compatibility | Security Relay Box / Wiegand / RS485 / RS232 Slave Reader with FP / RFID / Barcode / QR-code / ZKBioSecurity Software |
| Communication | Wiegand / RS485 / RS232 |
| HTTPS Encryption | Optional |
| Event Snapshot | Supported |
| Power Supply | 12V DC |
| Current Draw | < 2,000 mA |
| Protection Rating | IP68 & IK04 |
| Dimensions (L × W × D) | 227 × 143 × 26 mm |
| Storage Humidity | ≤93% |
| Working Humidity | ≤93% |
| Storage Temperature | -40°C to +65°C |
Multi-Credential Compatibility
RFID & Card Authentication
The FaceDepot 8AL supports integration with compatible RFID/card readers, allowing organizations to combine facial recognition with conventional card-based authentication.
Fingerprint Authentication
Compatible external fingerprint reader options can be integrated through supported interfaces, allowing flexible multi-factor access control configurations.
QR & Barcode Authentication
The terminal supports compatible QR-code and barcode reader integration, providing additional credential options for modern access control deployments.
Security & Access Control Functions
- Access Levels
- Groups
- Holidays
- Daylight Saving Time (DST)
- Duress Mode using password
- Anti-Passback
- Record Query
- Tamper Switch Alarm
- Event Snapshot
- Custom Wallpaper
- Screen Saver
IP68 Outdoor Protection
The FaceDepot 8AL features an IP68-rated enclosure designed to provide a high level of protection against dust and water. Combined with its wide temperature tolerance and IK04 protection, the terminal is suitable for demanding indoor, outdoor and semi-exposed access control installations.
Environmental Performance
Wide Temperature Range
The FaceDepot 8AL provides a storage temperature range of -40°C to +65°C, supporting deployment in environments with significant temperature variation.
High Humidity Tolerance
The terminal supports storage and working humidity of up to 93%, subject to the specified operating conditions.
Compact Design
With dimensions of only 227 × 143 × 26 mm, the FaceDepot 8AL offers a slim form factor that can be installed in a variety of controlled access locations while maintaining a modern appearance.
Applications
- Office Buildings
- Corporate Entrances
- Commercial Buildings
- Factories & Industrial Facilities
- Warehouses
- Hotels & Hospitality Facilities
- Educational Institutions
- Residential Buildings
- Government Facilities
- Security Checkpoints
- Restricted Access Areas
- Outdoor Entrance Gates
- Parking & Facility Access Points
Why Choose ZKTeco FaceDepot 8AL?
- Less than 0.3-second facial recognition speed.
- Up to 50,000 facial templates with optional capacity.
- Advanced face liveness detection and anti-spoofing protection.
- IP68 dust and waterproof protection.
- IK04 protection against physical impact.
- Designed for indoor and outdoor installation.
- Strong-light operation up to 50,000 lux.
- 1,000,000 transaction capacity.
- Supports RFID, fingerprint, barcode and QR-code reader integration.
- Multiple access control interfaces including Wiegand, RS485 and RS232.
- Compatible with ZKBioSecurity software.
- Compact 26 mm-depth design.
Package Includes
- 1 × ZKTeco FaceDepot 8AL Facial Recognition Terminal
- Installation Accessories
- Installation Documentation
