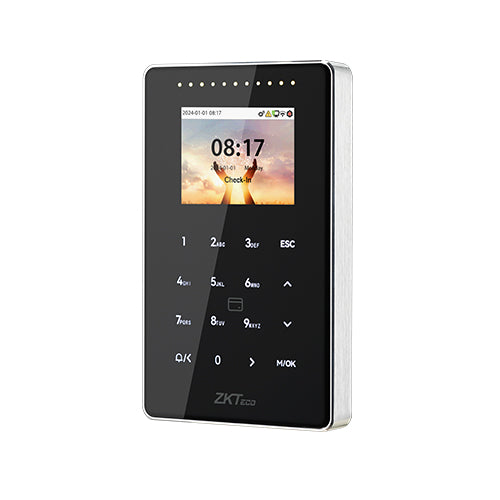

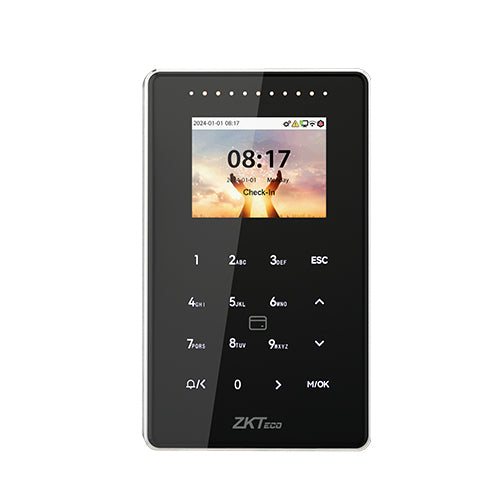

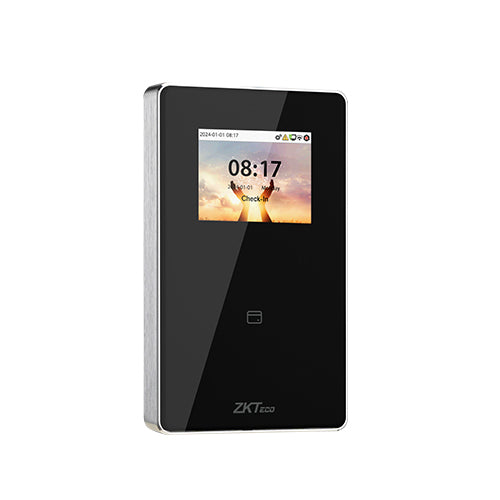

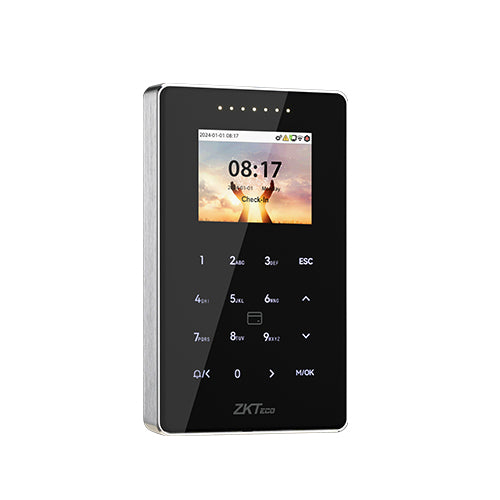

ZKTeco SC800 + ID Waterproof RFID Access Control Terminal
The ZKTeco SC800 + ID is a Linux-based, waterproof RFID access control terminal designed specifically for outdoor applications. It features a durable metal midframe housing with a 2.5D tempered glass panel, providing IP65 waterproof and IK04 vandal-proof protection.
The SC800 features a 2.4-inch color TFT LCD screen and a hidden touch keypad that provides a convenient and touchless unlocking experience. The terminal supports RFID authentication and can be configured with different RFID modules depending on the required card technology.
With TCP/IP, Wiegand, RS485, OSDP and optional Wi-Fi communication, the SC800 can integrate with various access control systems. Its Wiegand input supports external proximity readers, while the Wiegand output allows the terminal to work as an external reader for an access controller.
Key Features
- Linux-based RFID access control terminal.
- Designed for outdoor applications.
- IP65 waterproof protection.
- IK04 vandal-proof protection.
- Metal midframe housing with 2.5D tempered glass panel.
- 2.4-inch TFT LCD color screen.
- Hidden touch keypad for convenient touchless unlocking.
- Standard 125 kHz ID card support.
- Optional Multi-Tech RFID modules available.
- Supports Wiegand input and output.
- Supports RS485 readers.
- OSDP Version 2.1.7 support.
- Optional Wi-Fi connectivity.
- AES-256 data encryption.
- Supports anti-passback functionality.
RFID Technology
Standard RFID Module
The standard module supports 125 kHz ID cards.
Optional Multi-Tech RFID Modules
The SC800 can be configured with optional Multi-Tech RFID modules for broader card compatibility.
- Module 1: ID, IC, DESFire EV1/EV2
- Module 2: ID, IC, DESFire EV1/EV2, FeliCa, Legic, HID Prox
- Module 3: ID, IC, DESFire EV1/EV2, FeliCa, Legic, HID Prox, HID iCLASS
Access Control Features
Wiegand Input & Output
The SC800 provides both Wiegand input and output. The input can connect an external proximity reader, while the output allows the SC800 to operate as an external reader for a third-party access controller.
Multiple Access Control Interfaces
The terminal supports third-party electric locks, door sensors, exit buttons, alarms and doorbells for complete access control installations.
Data Protection
User and access control data is protected using AES-256 encryption.
Product Advantages
- Suitable for demanding outdoor access control applications.
- IP65 waterproof construction for protection against water and dust.
- IK04 vandal-proof design for improved physical protection.
- Multiple RFID technology options for different access cards.
- Hidden touch keypad provides a modern touchless unlocking experience.
- Supports both Wiegand input and output.
- Compatible with external RS485 readers.
- OSDP 2.1.7 support for compatible reader communication.
- Optional Wi-Fi for flexible connectivity.
- Supports anti-passback and automatic status switching.
- Supports ZKBio CVAccess software.
Applications
- Corporate Offices
- Factories & Manufacturing Units
- Warehouses
- Industrial Entry Points
- Commercial Buildings
- Educational Institutions
- Hospitals & Healthcare Facilities
- Parking & Gate Access
- Restricted Access Areas
- Outdoor Access Control Installations
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC800 + ID |
| Product Type | Waterproof RFID Access Control Terminal |
| Operating System | Linux |
| Display | 2.4-inch TFT LCD Color Screen |
| Card Capacity | 50,000 (Optional: 100,000) |
| Logs Capacity | 200,000 (Optional: 1,000,000) |
| User Password | 6 Digits |
| RFID | Standard ID Card; Optional Multi-Tech Card Modules |
| Communication | TCP/IP, Wiegand, RS485, OSDP 2.1.7, RS232, Optional Wi-Fi |
| Wired Network | 10/100 Mbps, Auto MDI/MDI-X |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Auxiliary Interface | 1 AUX Input |
| Indication Light | Breathing Light: White; Status Light: Red/Green |
| Processor | 1 GHz Dual Core CPU |
| Memory | DDR2 64M, Flash 256M |
| Data Protection | AES-256 Encryption |
| Keypad | Hidden Touch Keypad |
| Wiegand Signal | Wiegand In / Out |
| Standard Functions | ID Card, Web Server, Automatic Status Switch, Self-Service Query, DST, 14-Digit User ID, Scheduled Bell, Anti-Passback, HTTPS, Protocol Convert (AC Push to TA Push) |
| Optional Functions | Wi-Fi, Multi-Tech Card Module, Printer |
| Power Supply | DC 12V 3A |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10% to 90% RH |
| Dimensions | 143 × 85 × 19.8 mm |
| Protection | IP65 Waterproof, IK04 Vandal Proof |
| Protocol | A&C Push (Default) / T&A Push |
| Supported Software | ZKBio CVAccess |
Supported Software
- ZKBio CVAccess
Why Choose ZKTeco SC800 + ID?
- Purpose-built for outdoor RFID access control.
- IP65 waterproof and IK04 vandal-proof protection.
- Supports 50,000 cards as standard.
- Large 200,000 log capacity.
- Supports multiple RFID technologies with optional modules.
- Modern hidden touch keypad design.
- Wiegand input and output for flexible integration.
- OSDP and RS485 support for compatible readers.
- AES-256 encryption for enhanced data protection.
- Compatible with ZKBio CVAccess.
Package Includes
- 1 × ZKTeco SC800 + ID RFID Access Control Terminal
