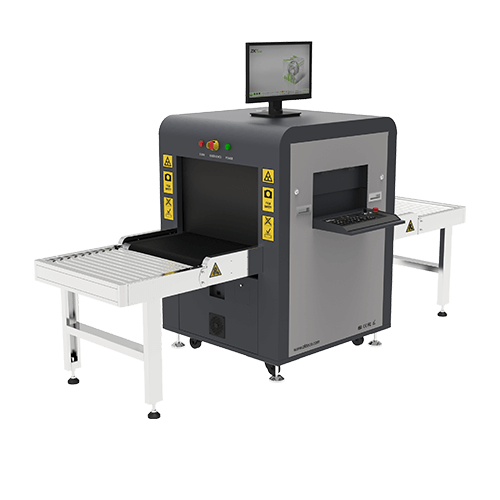

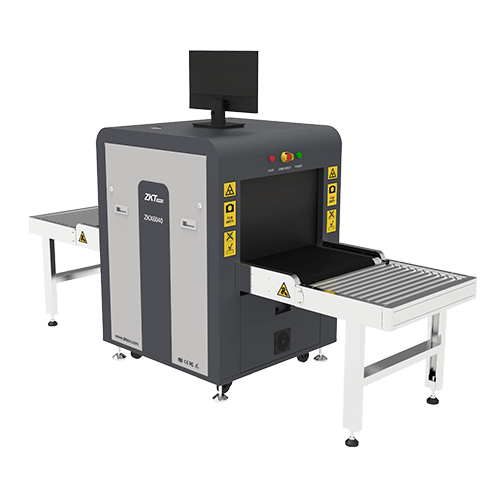

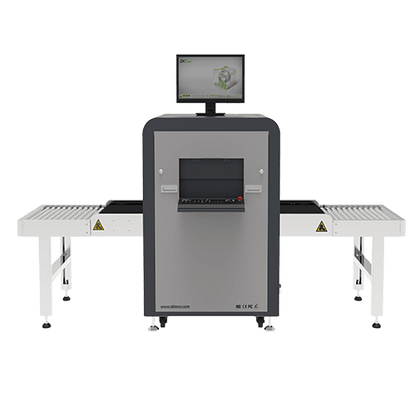

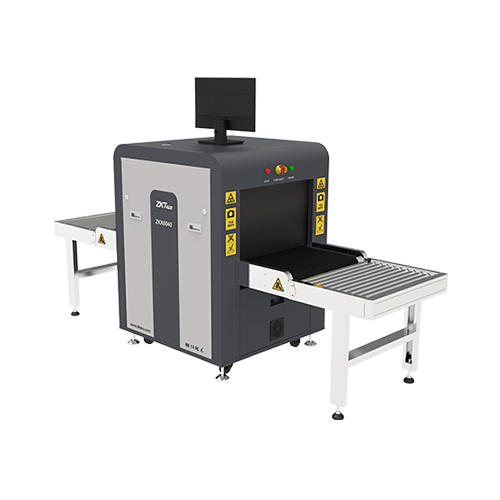

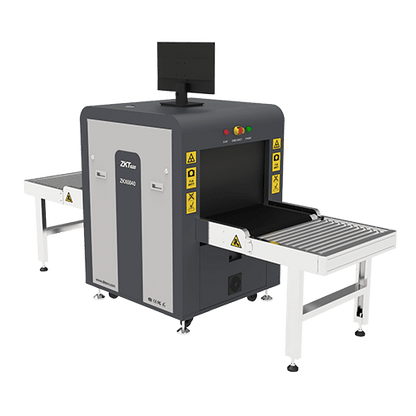

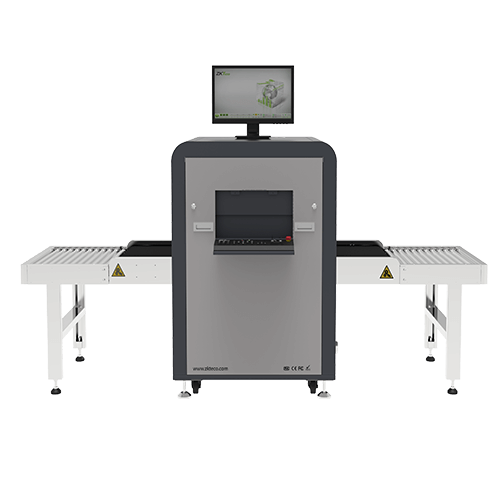

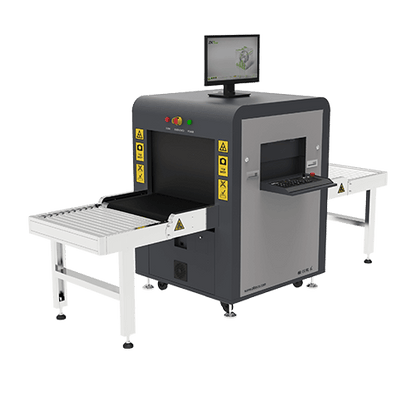

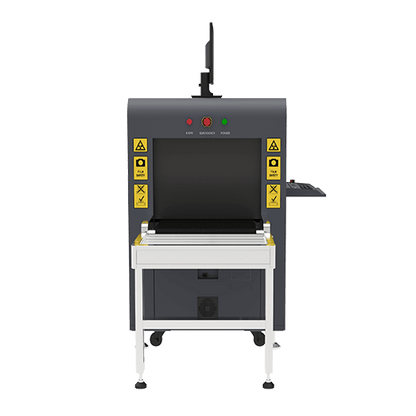

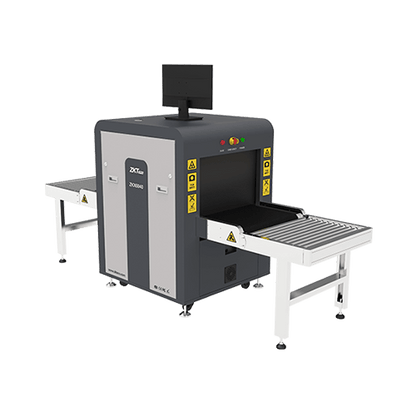

ZKTeco ZKX6040 X-Ray Baggage Scanner

ZKX6040 X-ray Inspection System

The ZKX6040 X-ray Inspection System is a compact and mobile security screening solution designed for inspecting briefcases, carry-on luggage, and small cargo packages. With a 600mm × 400mm tunnel opening, it provides efficient inspection capabilities for factories, shopping malls, transportation hubs, and similar environments.

The system uses a reliable dual-energy X-ray generator and detector combined with advanced image algorithms to produce clear scanning images, helping operators visually identify potential threat items.

Key Features

• 600mm × 400mm tunnel opening for small luggage and cargo inspection.
• Dual-energy detector technology.
• Compact design for convenient deployment.
• Foldable keyboard for improved mobility.
• Designed for briefcases, carry-on luggage, and small cargo packages.
• Conveyor speed of 0.30 m/sec.
• Maximum conveyor load of 120kg with adequate distribution.
• 140 kV X-ray generator.
• 30mm steel penetration capability.
• 36 AWG wire resolution.
• 32 AWG penetration resolution.
• 21.5-inch Full HD color LED monitor.
• Supports storage of up to 200,000 scanned images.
• RJ45 TCP/IP communication interface.
• Compatible with ZKBio SIS software.

Product Advantages

• Compact design makes the system suitable for locations where space and mobility are important.
• Dual-energy imaging provides clear X-ray scanning results.
• Foldable keyboard improves transportation and deployment flexibility.
• 120kg maximum conveyor load supports a wide range of small luggage and packages.
• 30mm steel penetration enables inspection of relatively dense objects.
• Advanced image processing helps operators identify potential threat items.
• TCP/IP connectivity enables integration with supported security inspection software.
• Suitable for factories, shopping malls, transportation hubs, and similar facilities.

Technical Specifications

X-ray Generator & Image Performance

• 140 kV anode voltage.
• 0.5 mA tube current.
• 36 AWG wire resolution.
• 30mm steel penetration.
• Horizontal spatial resolution of Φ1.3mm.
• Vertical spatial resolution of Φ1.3mm.
• 32 AWG penetration resolution.
• Sealed oil bath with forced-air generator cooling.
• Vertically upward beam direction.
• L-shaped detector line.

Computer & Storage

• Windows 10 operating system.
• N100 processor.
• 8GB RAM.
• 128GB SSD + 2TB HDD.
• Storage capacity of up to 200,000 scanned images.
• 21.5-inch color LED display.
• 1920 × 1080P monitor resolution.

Safety & Environmental Specifications

• Radiation leak dosage of less than 0.5 μSv/h at 10cm from the surface.
• Compliant with radiation safety standards for cabinet X-ray systems.
• Operating temperature from -10°C to +45°C.
• Storage temperature from -20°C to +60°C.
• Operating humidity of 5% - 95%, non-condensing.
• Film safety rating: ASA/ISO1600.
• Power consumption below 300W.
• Noise level below 58 dB(A).

Applications

• Factories
• Shopping Malls
• Transportation Hubs
• Security Checkpoints
• Commercial Facilities
• Small Cargo Inspection
• Carry-on Luggage Screening
• Briefcase Inspection
• General Security Screening

Why Choose ZKX6040?

• Compact 600 × 400mm tunnel design for small luggage and cargo inspection.
• Dual-energy detector technology for effective X-ray imaging.
• 30mm steel penetration capability.
• High-quality image performance with advanced image algorithms.
• Foldable keyboard for improved mobility.
• Up to 200,000 scanned image storage capacity.
• 21.5-inch Full HD color LED monitor.
• TCP/IP connectivity through RJ45 interface.
• Compatible with ZKBio SIS.
• Suitable for a wide range of commercial and security inspection environments.
