ETERNITY NENX312 Hybrid IP PBX with 3 FXO and 12 FXS Ports

ETERNITY NENX312 Hybrid IP PBX with 3 FXO and 12 FXS Ports

The ETERNITY NENX312 Hybrid IP PBX is a feature-rich telecommunication solution designed for businesses of all sizes. With its advanced hybrid capabilities, this system integrates traditional and modern IP telephony to deliver seamless communication.

Key Features of ETERNITY NENX312

• Hybrid Compatibility: Supports both analog and IP-based telephony.
• Expandable Capacity: Accommodates up to 50 IP users, 12 FXS/SLT ports, and 3 FXO/CO ports.
• Advanced Connectivity: Includes 2 GSM/3G/4G ports and supports 8 SIP trunks.
• Voicemail and Fax Support: Comes with voicemail functionality and T.38 fax protocol.

Perfect for Growing Businesses

The ETERNITY NENX312 is ideal for businesses looking to transition to modern IP telephony without sacrificing compatibility with legacy systems. Its compact 1U rack-mount design, low power consumption, and reliable performance make it a valuable addition to any office setup.

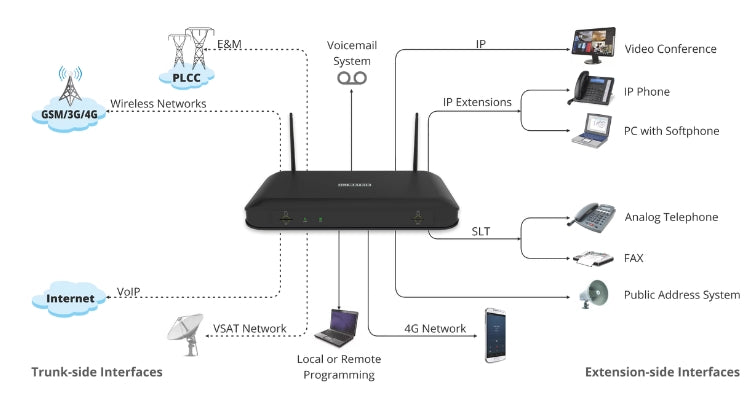

Architecture Diagram

Features

• Supports up to 50 IP users.
• 12 FXS/SLT ports for analog devices.
• 3 FXO/CO ports for external phone line connectivity.
• 2 GSM/3G/4G ports for mobile network integration.
• 8 SIP trunks and advanced VoIP protocols like SIP, SDP, RTP, and SRTP.
• 6-party conference call capability and video call support.
• Built-in voicemail and T.38 fax protocol.
• Durable 1U rack-mount design with low power consumption of 15W.
• Supports advanced codecs (G.711, G.723, G.729AB, GSM-FR, iLBC).

Technical Specifications

• Model: ETERNITY NENX312
• FXO Ports: 3
• FXS Ports: 12
• GSM/3G Ports: 2
• IP Users: 50
• VoIP Trunks: 8
• Max. VoIP Channels: 8
• Max. VMS Channels: 4
• Max. IP to IP Calls: 25
• Conference Capacity: 6-party
• Video Call Support: Yes
• Transport Protocols: UDP, TCP, TLS
• Power Consumption: 15W
• Dimensions: 320.2 x 51.1 x 208.1 mm
• Operating Environment: 0°C to 45°C, 5-95% RH non-condensing

Why Choose ETERNITY NENX312 Hybrid IP PBX?

• Future-Ready Technology: Combines traditional telephony with modern IP capabilities.
• Cost-Effective: Reduces operational costs by integrating VoIP and GSM technologies.
• Scalable Solution: Suitable for small, medium, and growing businesses.
• Reliable Performance: Low power consumption and robust operation in diverse environments.
• User-Friendly Design: Easy to mount and manage with minimal maintenance.
