BG-DC-101

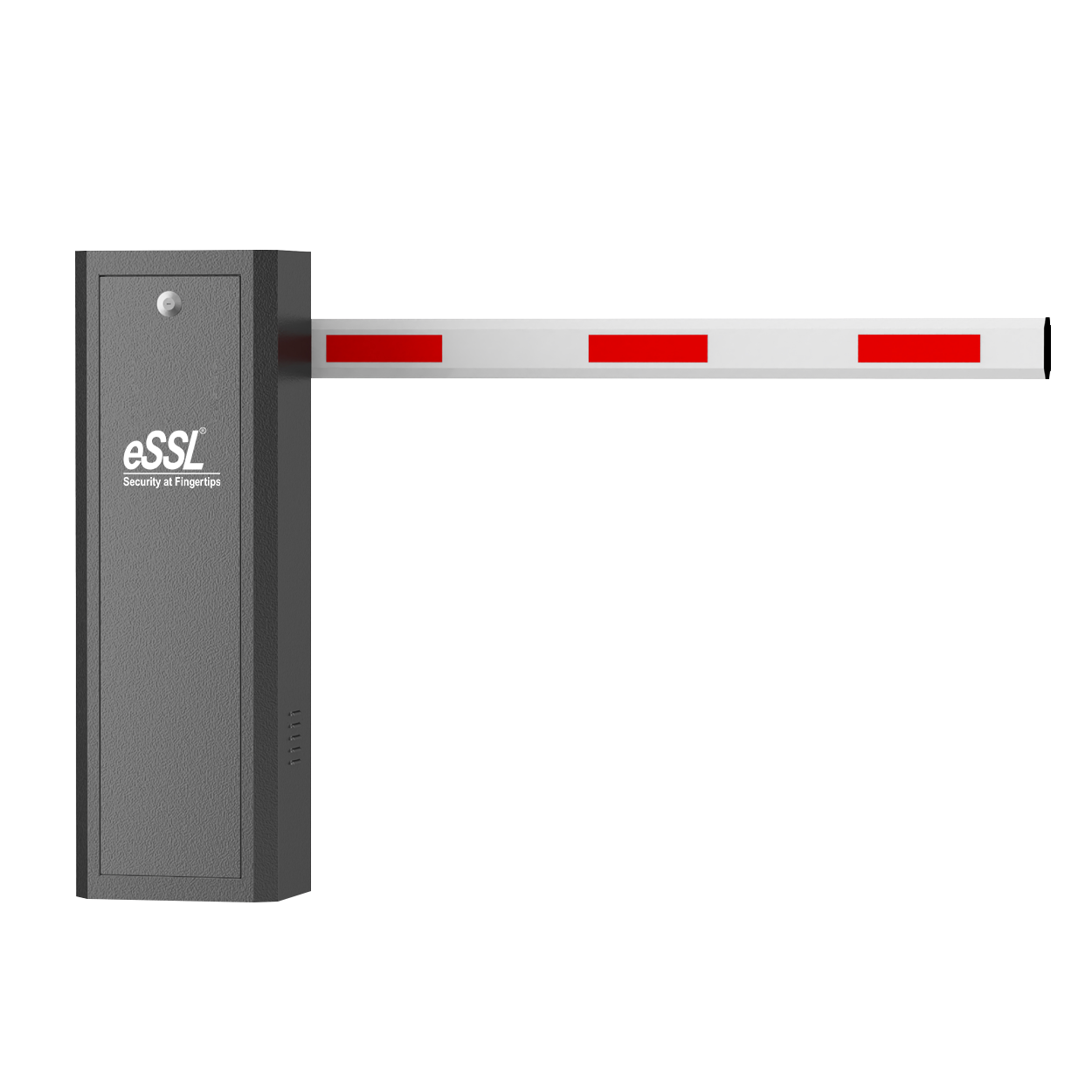

BG-DC-101 - BG-DC-101 is a high-performance automatic boom barrier driven by a 24V brushless DC motor for quiet, reliable, and low-maintenance operation. Designed for parking lots, gated communities, commercial premises, and industrial traffic control.

Features:
Motor Type: 24Volt DC Brushless Motor,
Operational Type: Electromechanical,
Power Supply：220 Volts ,
Frequency: 60Hz.

Specifications

• Motor Type: 24Volt DC Brushless Motor
• Operational Type: Electromechanical
• Power Supply：220 Volts
• Frequency: 60Hz
• Operational Voltage: 24 Volts DC
• Max power Consumption: 120 W
• Working Temperature：-35°C to 70°C
• Boom Barrier Arm Length & Operating Speed：6m (6s), 4m (3s), 3m (1.5s)
• Boom Barrier Arm Type: 6Mts (3.6 Straight + 2.7 Extension) Telescopic Boom
• Barrier Mechanism: Supported by 2 Springs
• Environment humidity： 10%~90% (non-condensing)
• IP class： IP54
• Working Temperature: -20°C to 80°C
• Barrier Dimension: 348*248*1060 mm
• Boom Barrier Weight: 45Kg
• Boom Barrier Remote Range: 土 ≤20Mts
• MCBF: 2Million

• 24V DC Brushless Motor drive, safe electrical, no risk of leakage.
• DC brushless mechanism, DC brushless motor, hull limit switch, operate stably, low sound, long lifetime.
• Operate speed at the fastest 1.2S, the speed adjustment is available, soft start and soft stop function, high efficiency pass.
• With reverse, auto-close, & auto-intelligent check functions are available.
• External Interface suitable device, loop detector, radar sensor, Photocell, Access Controller with UHF Readers & RS485 is optional.
• Cabinet is electrophoresis, then powder coating, for outdoor use.
• Manual Lift and Lower: Equipped with a motorized hand wheel, the lever can be manually raised and lowered during a power outage
• Ingenious Design: Utilises a sinusoidal mechanism and maintenance-free bearings to minimize wear & tear on components
• Safe Use: The lever will not rapidly rise or fall.
