Project Series 5MP IR Bullet Camera Surveillance

Project Series 5MP IR Bullet Camera Surveillance

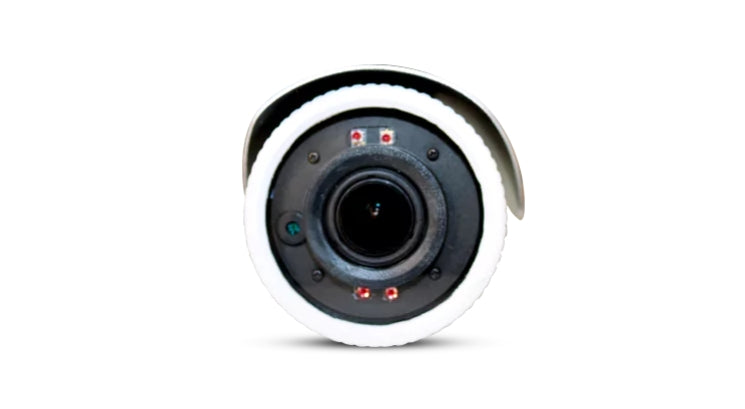

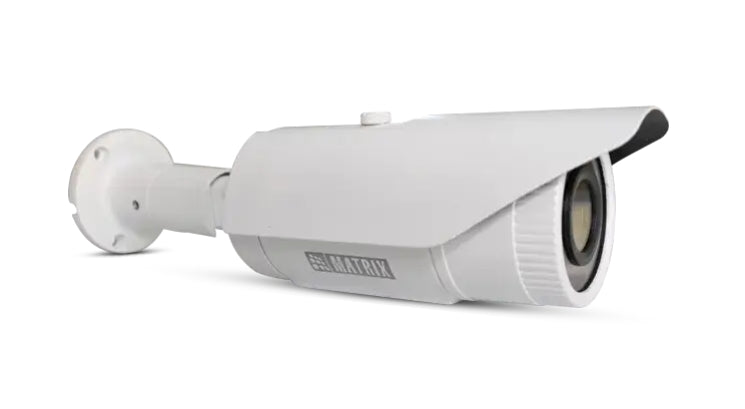

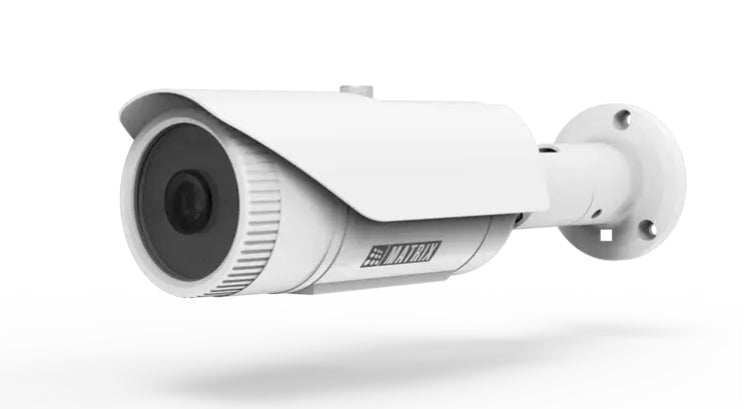

The 5MP IR Bullet Camera delivers 5MP resolution (2592x1944) using a SONY CMOS image sensor that offers incredible clarity, even in low light. Featuring True WDR (120dB) and a 50m IR range, this camera ensures sharp and detailed images in any lighting condition, making it ideal for both day and night surveillance.

Audio Support and Advanced Features

This camera supports two-way audio, allowing clear communication via the 3.5mm audio jack. It also includes motion detection, tamper detection, and object intrusion features, making it a reliable choice for modern security needs.

Durable Design for Outdoor Use

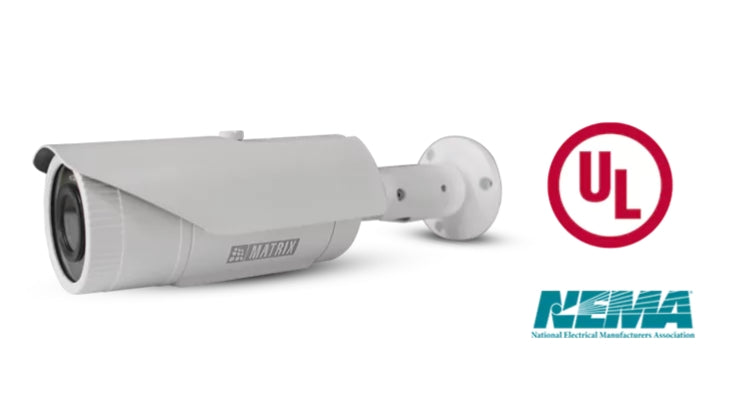

Built for rugged environments, the 5MP IR Bullet Camera meets IK10, IP67, and NEMA 4X standards, making it resistant to tampering, weather, and harsh conditions. It is NDAA compliant, ensuring high-quality performance in secure, regulated environments.

Interface Diagram

Features

• 5MP Resolution for high-definition imaging (2592x1944)
• SONY CMOS sensor with STARVIS series back-illuminated technology
• 120dB True WDR for superior image quality in high-contrast lighting
• 50m IR range with 850nm IR LEDs for superior night vision
• Audio support with two-way audio via 3.5mm jack
• Multiple lens options: 2.8mm, 4mm, 6mm, and manual motorized varifocal lens
• Power over Ethernet (PoE) for simplified installation
• High durability: IK10, IP67, NEMA 4X, and BIS, CE, FCC certifications
• Advanced video analytics: Motion detection, tamper detection, zone intrusion, and more
• SD card support up to 512GB for local storage

Technical Specifications

• Image Sensor: 1/2.8" SONY CMOS 5MP Active Pixel, Progressive Scan, Back-Illuminated (STARVIS)
• Resolution: 5MP (2592x1944)
• Minimum Illumination: Color – 0.01 Lux @F1.2 (AGC ON), Monochrome – 0 Lux
• Focal Length: 2.8mm, 4mm, 6mm, Manual Varifocal (2.8mm-12mm)
• Field of View:
• 2.8mm: HFOV 107.6°, VFOV 57°
• 4mm: HFOV 87.6°, VFOV 46.4°
• 6mm: HFOV 54.3°, VFOV 29.2°
• Lens Type: Fixed lens (2.8mm, 4mm, 6mm), Varifocal lens (F1.6-F3.2)
• IR Range: Up to 50m with 850nm IR LEDs
• Audio: Two-way audio, Audio IN/OUT (3.5mm jack)
• Storage: SD card up to 512GB
• Video Compression: H.265, H.264, MJPEG
• Bitrate: 128kbps-16Mbps
• Frame Rate: 1-30fps
• Shutter Speed: 1/15s - 1/100000s
• Power Supply: 12V DC, PoE (802.3af)
• Operating Temperature: -30°C to 60°C
• Operating Humidity: Less than 95% RH (non-condensing)
• Dimensions: Φ302mm x 93mm x 85mm
• Weight: 840g
• Certifications: BIS, CE, IP67, FCC, IK10, NEMA 4X, NDAA Compliant

Why Choose the 5MP IR Bullet Camera?

If you're seeking a high-quality surveillance solution that guarantees reliable performance in all conditions, this 5MP IR Bullet Camera is your answer. Offering superior resolution, night vision, and advanced video analytics, it's designed to meet the rigorous demands of both residential and commercial applications. With its durable build and NDAA compliance, this camera provides peace of mind, knowing that you're investing in secure and future-proof surveillance technology.
