Cosec Path DCCX Card-Based Access Control & Time-Attendance Door Controller BLE & RFID Support

Cosec Path DCCX – Secure and Efficient Card-Based Access Control & Time-Attendance Solution

The Cosec Path DCCX is a high-performance card-based access control and time-attendance door controller, offering multi-credential support for Bluetooth® (BLE) and RFID cards. This compact, IP65-rated device is designed for seamless integration into diverse environments, ensuring enhanced security and efficiency.

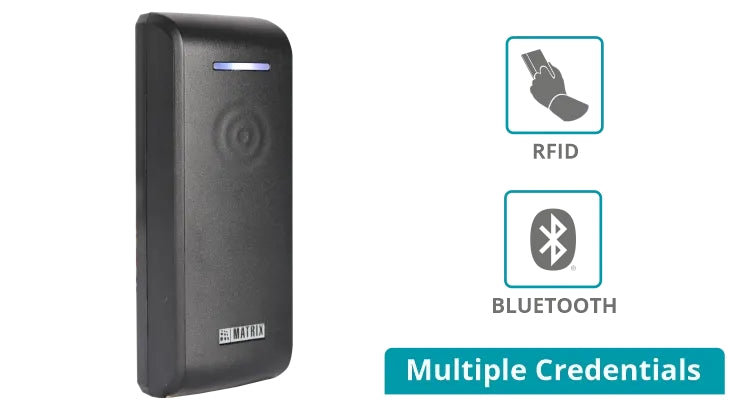

Multi-Credential Authentication for Flexible Access Control With support for Bluetooth® (BLE) and various RFID cards (including EM Proximity, MIFARE Classic®, DESFire EV1 & EV2, and HID iClass), the Cosec Path DCCX provides flexible and reliable access control solutions for your business or government facility.

Massive Storage and Fast Event Logging The Cosec Path DCCX offers excellent storage capabilities, supporting 50,000 users and 500,000 event logs, ensuring reliable data handling in high-traffic environments.

Multi-Connectivity Options for Seamless Integration This device supports multiple connectivity options, including Wi-Fi, Ethernet, Bluetooth®, PoE, and RS-232, providing enhanced integration options to suit your system's needs.

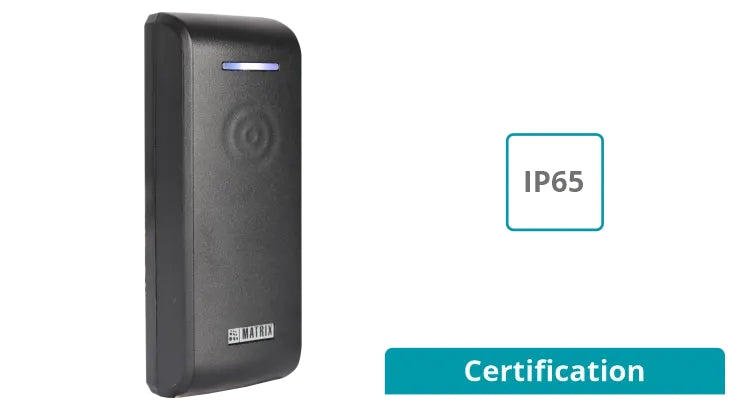

Compact and Durable Design The Cosec Path DCCX boasts a compact design with an IP65 rating, ensuring reliability and durability in a range of environments, from indoor offices to harsh outdoor settings.

Interface Diagram

Product Features

• Multi-Credential Support: BLE and RFID card options (EM Prox, MIFARE Classic®, DESFire EV1 & EV2, HID iClass)
• Display: LED indicator
• Maximum Users: 50,000
• Event Buffer: 500,000 logs
• Connectivity: Wi-Fi, Bluetooth®, Ethernet, PoE, RS-232
• Environmental Protection: IP65, Operating Temperature: 0°C to +50°C
• Power Supply: 12V DC @ 2A, Power to Lock 12V DC @ 0.5A

Technical Specifications

General:

• Credential Support: Bluetooth® (BLE) and RFID Card (EM Prox, MIFARE, HID iClass)
• Ingress Protection: IP65

Capacity:

• Max Users: 50,000
• Event Buffer: 500,000

Communication:

• Wi-Fi: Yes
• Bluetooth®: Yes
• Ethernet: Yes (10/100 Mbps)
• PoE: Yes (IEEE 802.3 af)
• RS-232: Yes
• RS-485: Yes
• Wiegand: Yes (Selectable IN/OUT)

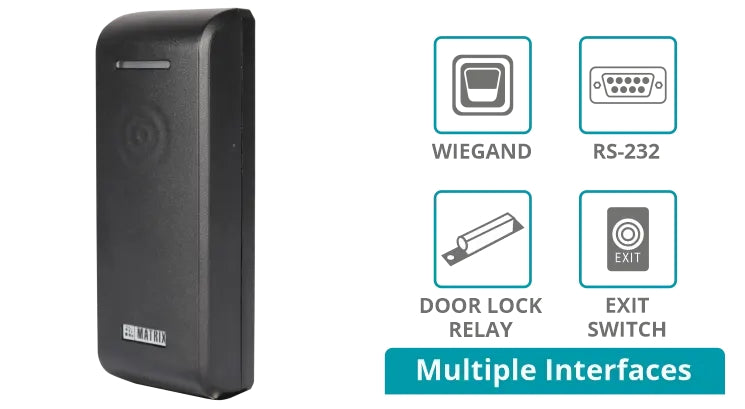

Interface:

• Exit Switch Port: Yes
• Door Status Sense: Yes (2-Stage)
• Door Lock Relay: Yes
• Door Lock Power: 12V DC @ 0.5A (from device), 30V DC @ 1A (from external source)
• Aux-Out: No

Hardware:

• CPU: 800 MHz ARM Cortex A8 Processor
• Memory: 512 MB Flash + 512 MB DDR3 RAM
• LED Indicator: Yes
• Buzzer: Yes
• Operating Temperature: 0°C to +50°C
• Weight: 0.154 kg (0.33 lbs)

Compatibility:

• System Integration: API for Software Integration
• Operational Modes: Direct Door with COSEC CENTRA / COSEC VYOM Panel or Door with COSEC PANEL200P

Installation:

• Wall Mount: Yes

Accessories:

• Power Adapter: 12V DC @ 2A
• Battery Backup: Yes (External – 6 hours on COSEC PATH BBU & COSEC PATH PSBB)

Why Choose Cosec Path DCCX?

The Cosec Path DCCX offers a compact and highly secure solution for access control and time-attendance management. Supporting BLE and RFID cards, it provides seamless integration, enhanced security features, and a durable design that suits both commercial and industrial applications.
