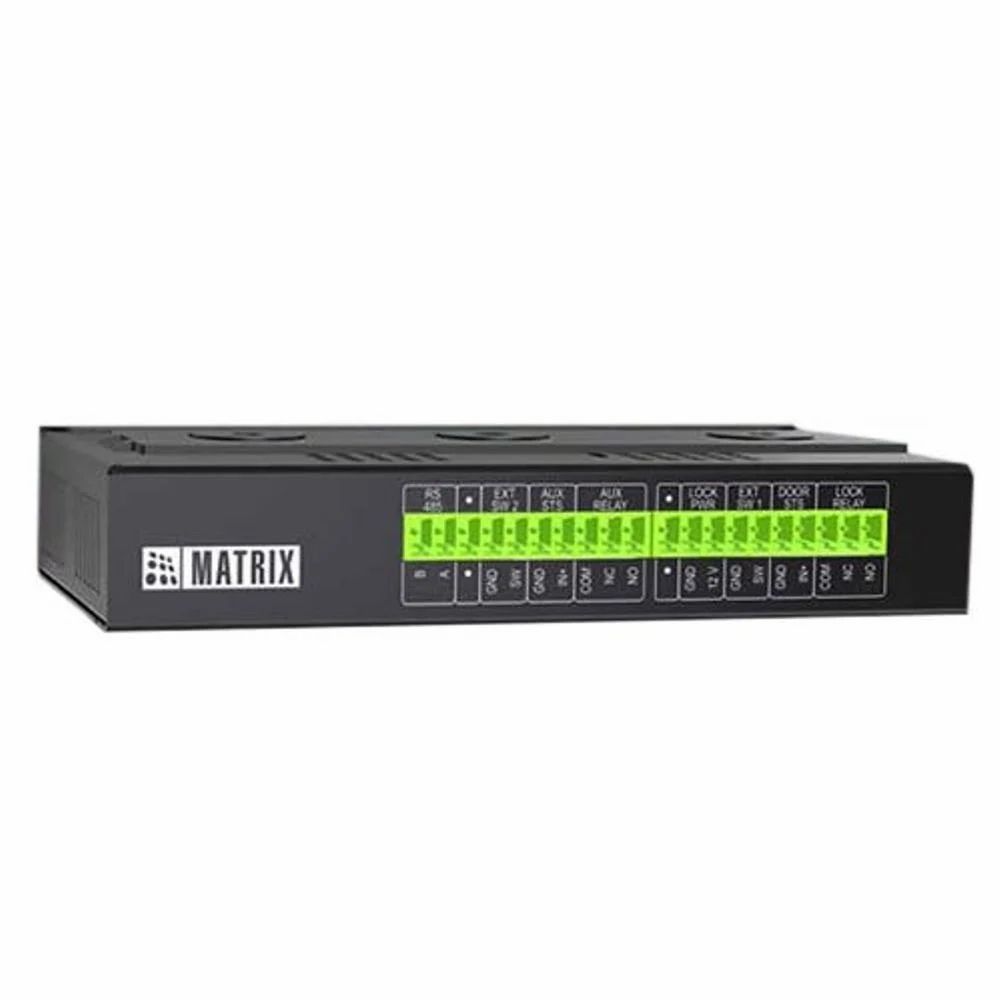

Two Door Controller with PoE+
Matrix COSEC ARC DC200S is a next-generation door controller, based on the “IP to door” concept eliminating the need for age-old individual cable laying requirements between access panel to the reader or lock for Access Control applications. COSEC ARC DC200 works on forefront PoE+ IT infrastructure with door controller on each door with minimum wiring that improves solution reliability and reduces installation cost drastically. It supports two Matrix RFID or fingerprint readers on RS-485 or third-party readers on the Wiegand interface for entry or exit. Moreover, COSEC ARC is an SSL-enabled access control IP panel that provides secure communication between controller and server makes it an ideal panel lite controller for any, critical or simple access control organizational applications. COSEC ARC also supports multi-mount options such as wall-mount and standard din rail mount.
With COSEC CENTRA (with COSEC PANEL LITE V2 for Dual Door Mode)
Panel Door Mode
With COSEC PANEL
READERS
Reader Power output
Max. 12V DC @ 0.250A
Reader Types
2 Reader Port for any Wiegand or Matrix Reader
Interface
RS-485 (For Matrix Reader Only) and Wiegand IN
IN/OUT PORTS
Exit Switch Port
Yes
Door Status Sense
Programmable NO, NC
Door Lock Relay
Maximum 30 V DC @ 2A, Relay SPDT, Form C
Door Lock Power
12V DC @ 0.5A
AUX-IN Port
Yes
AUX-Out Port
30V DC @ 2A, Relay SPDT, Form C
AUDIO-VISUAL
LED
Yes (Tri Color)
ELECTRICAL
Input Power
PoE+ (IEEE 802.3 af),12VDC @ 1.8A OR 12 VDC @ 2A Power Adaptor
CPU
ARM Processor, 800MHz
Memory
256MB Flash, 2GB RAM
PHYSICAL
Mounting
Wall Mount OR Din-Rail Mounting Options
Dimensions (W x H x D) (mm3)
140mm(H) x 78mm(W) x 25mm(D)
Weight (kg)
0.45 (0.99 lbs.)
ENVIRONMENTAL
Humidity
5% to 85% RH Non-Condensing
Operating Temperature
-10°C to + 50°C (32°F to 122°F)
OTHERS
System Integration
API for Software Integration
CERTIFICATIONS
CE, FCC, RoHS and UL
[/su_table]
Key Features
IP Technology on Existing Wi-Fi/ LAN/WAN
Industry Standard CAT5 and CAT6 Wiring
Installation near the Door Reduces Wiring and Improves Reliability
PoE+ Powers PANEL, Readers and Locks, no Need of Local Power Point or Backup
Neat, Elegant, Reliable and Easy-To-Maintain Installation
Distributed Architecture; Robust Security
Industry Standard DIN Rail Mounting
Centralized Management and Control using COSEC PANEL Web Pages from anywhere.
