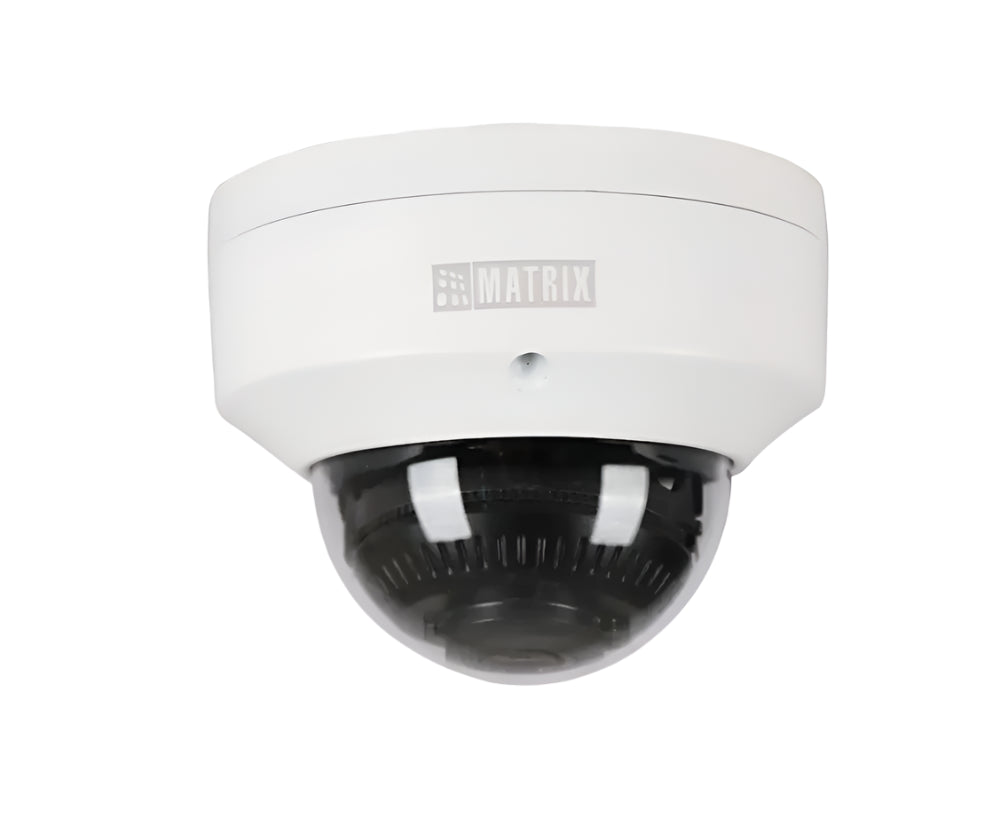

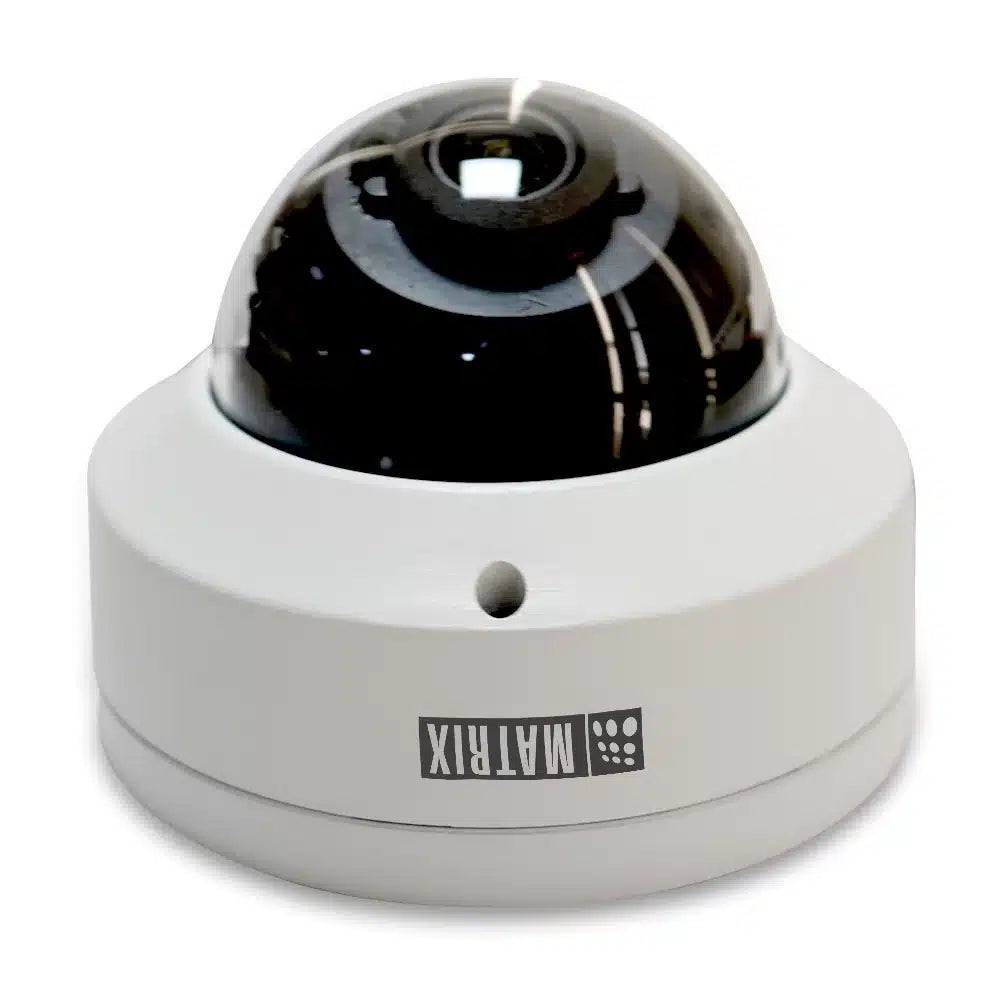

Matrix SATATYA CIDR50FL40CWP P2 5MP IR Dome Camera (4.0mm Lens)
Matrix SATATYA CIDR50FL40CWP P2 5MP IR Dome Camera (4.0mm Lens)
Couldn't load pickup availability
Matrix SATATYA CIDR50FL40CWP P2 5MP IR Dome Camera (4.0mm Lens)
The Matrix SATATYA CIDR50FL40CWP P2 5MP IR Dome Camera delivers advanced security with a sharp 5MP resolution and a fixed 4.0mm lens. Powered by a SONY STARVIS CMOS sensor, it offers clear visibility even in total darkness, with an IR range of up to 50 meters. Designed for indoor and outdoor use, it includes True WDR, 3D Noise Reduction, and smart video analytics for efficient, accurate surveillance. The camera is cyber secured as per ISO/IEC 27402, NDAA compliant, and supports NEMA 4X protection on request for harsher environments.
Features
5MP resolution with 4.0mm fixed lens and detailed viewing
SONY STARVIS CMOS sensor for superior night and low-light imaging
0 Lux capability with IR LED on, IR range up to 50 meters
True WDR and 3D Noise Reduction for balanced, noise-free images
Smart analytics: Tripwire, Intrusion, and Motion Detection
Video compression: H.265, H.264, and MJPEG
Quad stream support with ROI and Smart/Adaptive Streaming
1/1 Audio I/O and 1/1 Alarm I/O for interactive control
Storage: NAS and SD Card support up to 512GB
Power over Ethernet (PoE) and 12V DC compatible
Certified: BIS, CE, FCC, RoHS, IK10, IP67, UL
Cyber secured as per ISO/IEC 27402, NDAA compliant
NEMA 4X protection available on request
Technical Specifications
Image Sensor: 1/2.8” SONY CMOS (STARVIS Series)
Resolution: 5MP
Lens: 4.0mm Fixed (F1.6 default / F2.0 on demand)
Minimum Illumination: 0 Lux (with IR LED on)
IR Range: Up to 50 meters
Video Compression: H.265, H.264, M-JPEG
Audio Interface: 1 Audio In / 1 Audio Out
Alarm Interface: 1 Alarm In / 1 Alarm Out
Power Supply: PoE / 12V DC
SNR: > 70 dB
Certifications: BIS, CE, FCC, RoHS, IK10, IP67, UL
Cybersecurity: ISO/IEC 27402 Compliant, NDAA Compliant
Environmental Protection: NEMA 4X on request
Storage: SD Card up to 512GB and NAS
Streaming: Quad Stream with Adaptive and Smart Streaming
Analytics: Tripwire, Intrusion Detection, Motion Detection
Why Choose Matrix SATATYA CIDR50FL40CWP P2 5MP IR Dome Camera?
This 5MP camera offers clear imaging, long-range IR visibility, and powerful analytics for complete surveillance. It’s rugged, IP67 rated, and built for high-security applications. With compliance to NDAA and ISO/IEC cybersecurity standards, it's ideal for commercial and critical installations.
