Matrix SATATYA NVR3202X P2 32 Channel NVR with 4K Support and 2 HDD Slot

Matrix SATATYA NVR3202X P2 32 Channel NVR with 4K Support and 2 HDD Slot

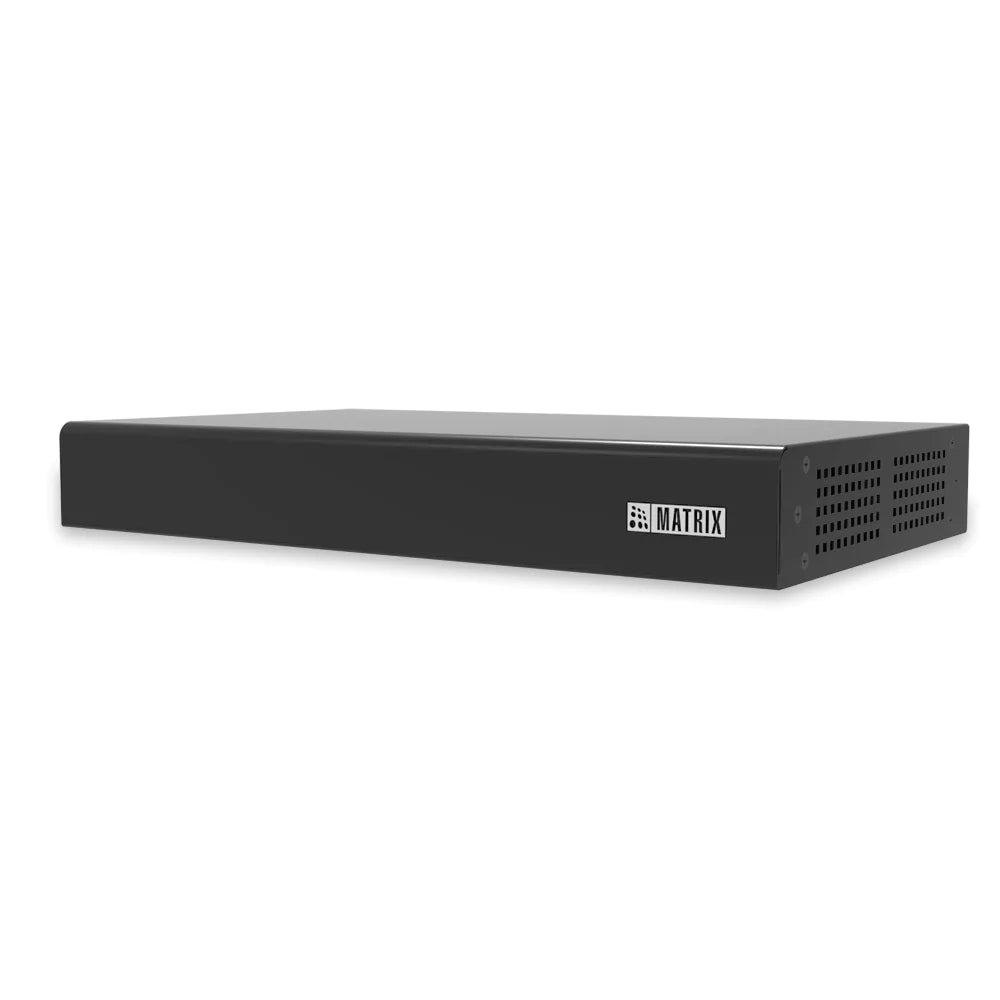

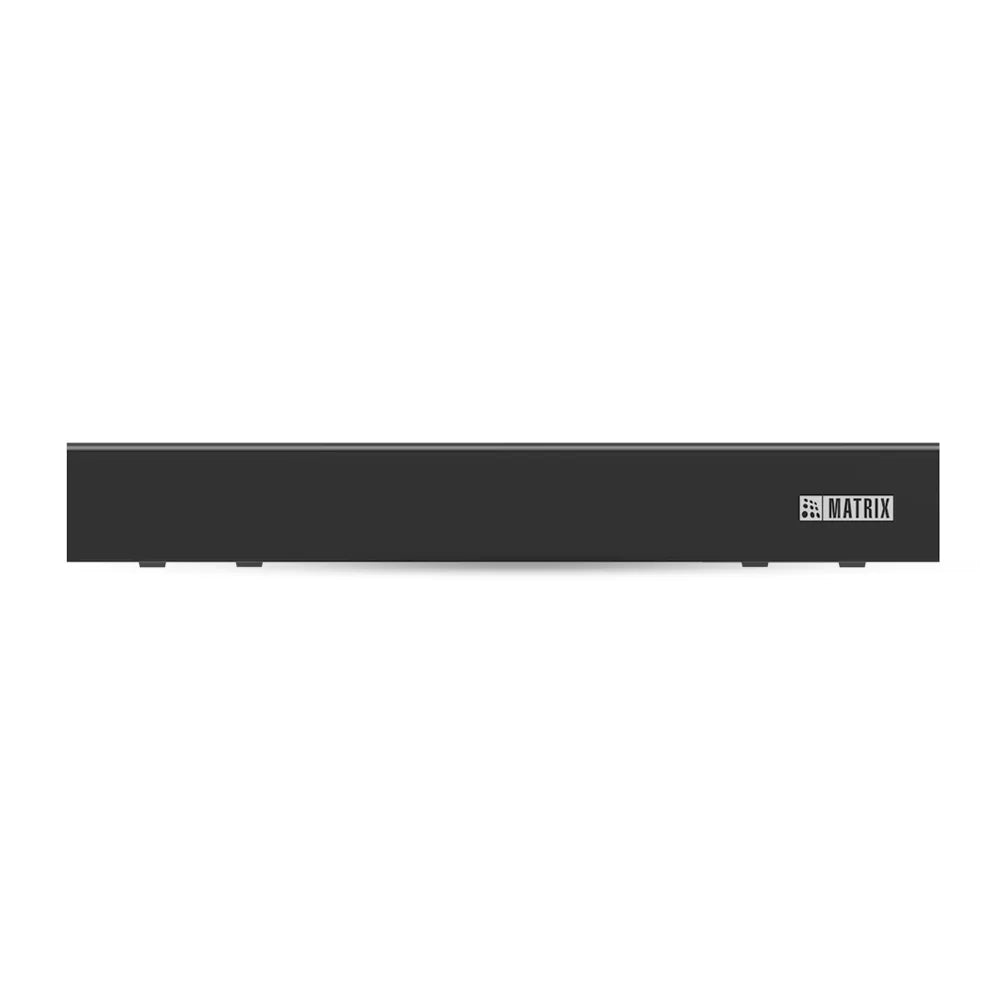

The Matrix SATATYA NVR3202X P2 is a robust 32-channel network video recorder built for large-scale surveillance needs. With 4K HDMI output, support for ultra-high-definition recording up to 12MP, and advanced local decoding, this NVR ensures top-tier video quality and storage efficiency. It features dual HDD slots, smart storage controls, and instant alerts via the Matrix SATATYA SIGHT mobile app. Its ONVIF support and NDAA compliance make it reliable and secure for enterprise environments.

Features

32 IP camera inputs with support for resolutions up to 12MP
4K HDMI output with real-time decoding up to 4x 4K or 16x 1080p
Dual SATA HDD slots supporting up to 18TB per slot (HDDs not included)

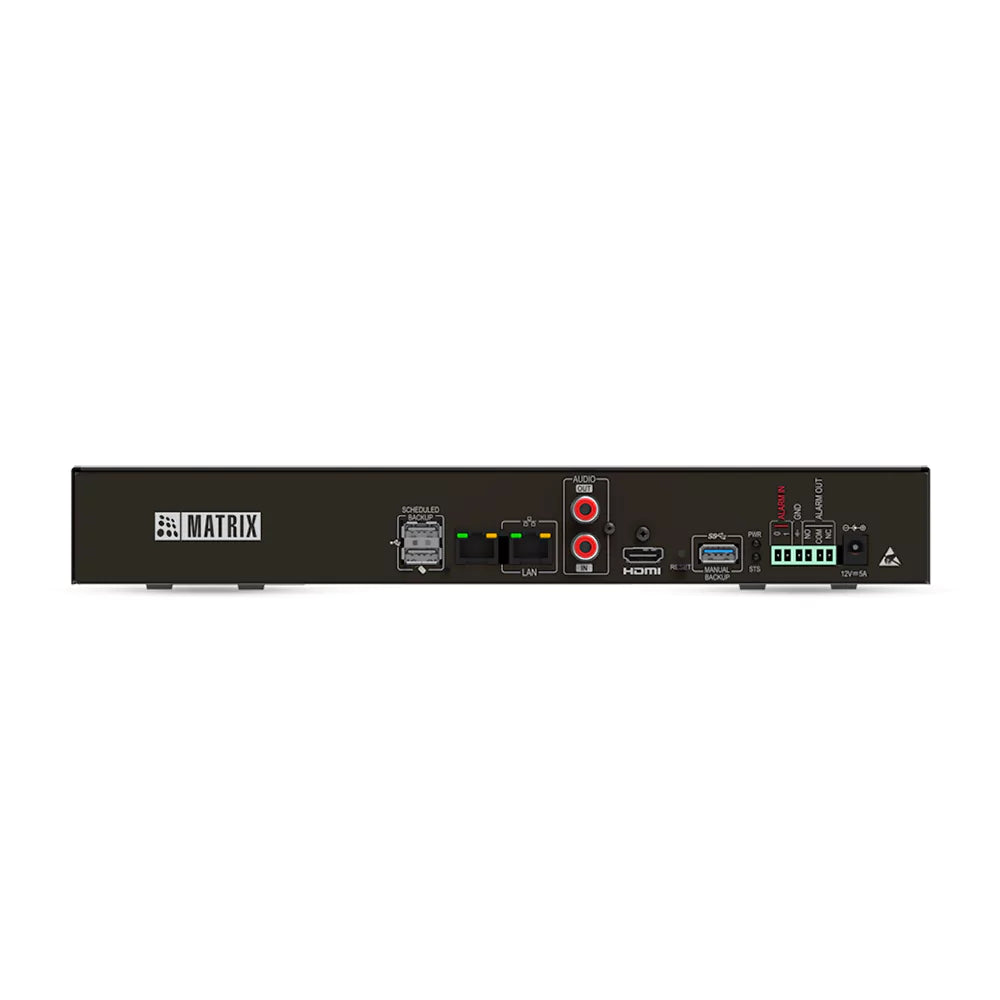

1 audio input/output and 2/1 alarm I/O for enhanced integration
Smart storage management with adaptive recording and camera-wise retention
Alerts via SMS, email, video pop-up, and instant mobile calling
High throughput performance: 512Mbps uplink and 512Mbps downlink
Cascading support to monitor and control multiple Matrix NVRs centrally
ONVIF compliant and compatible with major IP camera brands
NDAA compliant for trusted government and commercial use

Technical Specifications

Video Input: 32 IP Channels
Video Output: 4K HDMI
Audio Interface: 1 Audio In / 1 Audio Out
Alarm Interface: 2 In / 1 Out
Recording Resolution: 12MP, 8MP, 5MP, 4MP, 3MP, 2MP, 720p, D1, CIF
Decoding Capability: 4x 4K, 10x 3MP, or 16x 1080p
HDD Support: 2 SATA HDDs up to 18TB each (not included)
Throughput: 512Mbps uplink + 512Mbps downlink
Storage Features: Adaptive Recording, Camera-wise Retention
Alerts: SMS, Email, Video Pop-up, Mobile Call via Matrix SATATYA SIGHT
Compliance: ONVIF, NDAA

Why Choose Matrix SATATYA NVR3202X P2 32 Channel NVR?

Built for large installations, the NVR3202X P2 delivers powerful performance with high storage capacity, real-time 4K decoding, and smart alerts. It’s a future-ready NVR designed to provide scalable and secure video surveillance.
