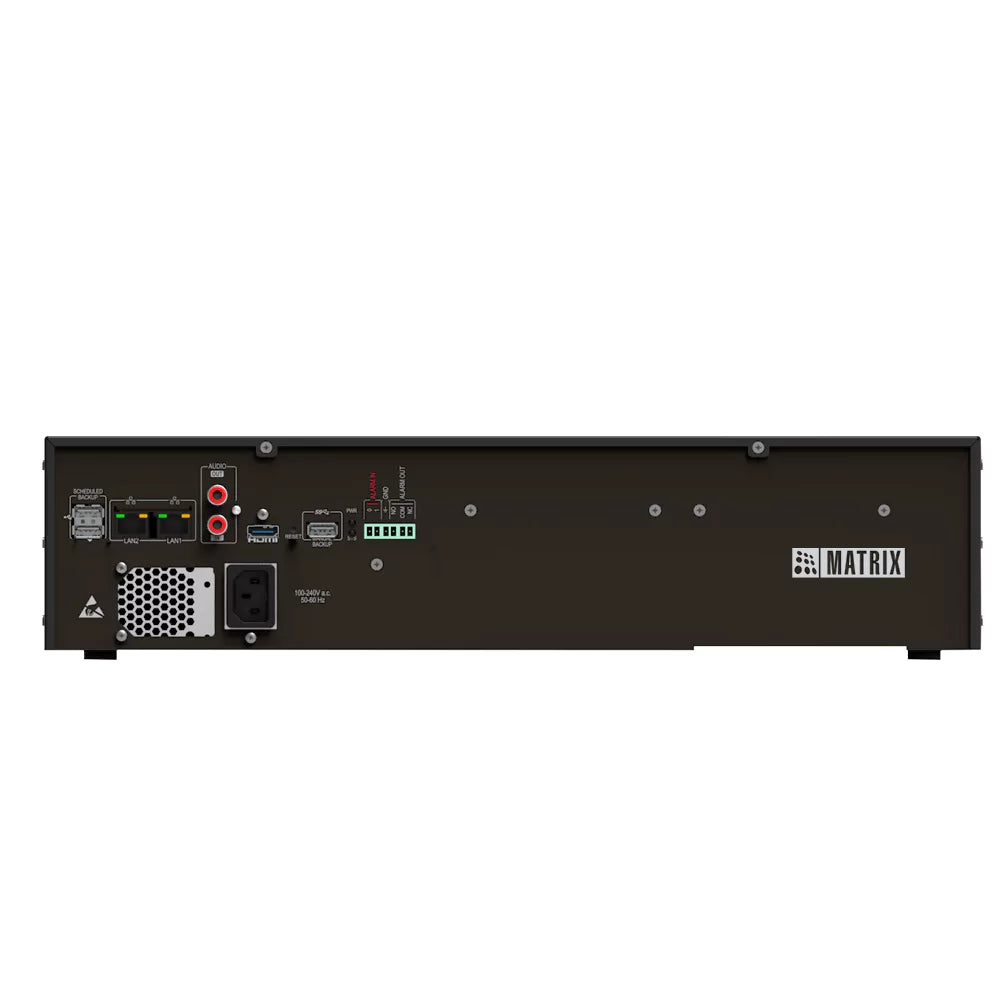

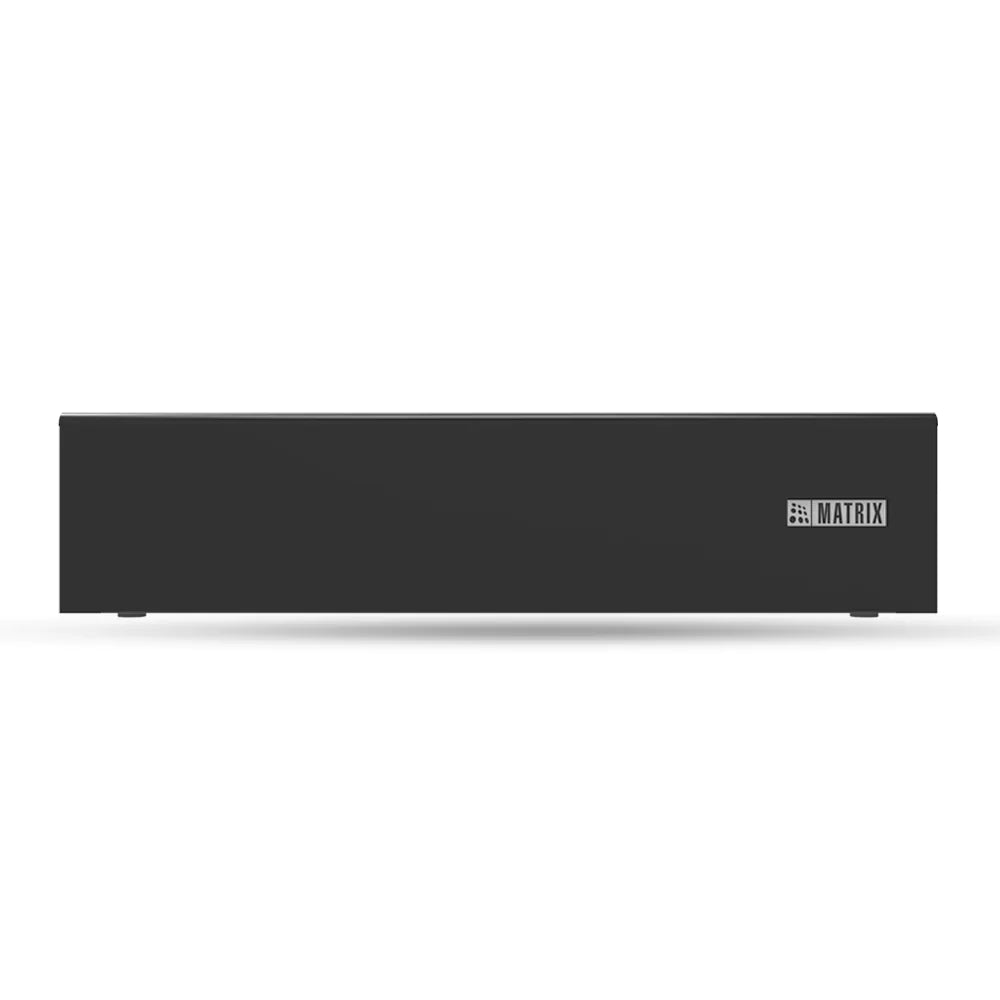

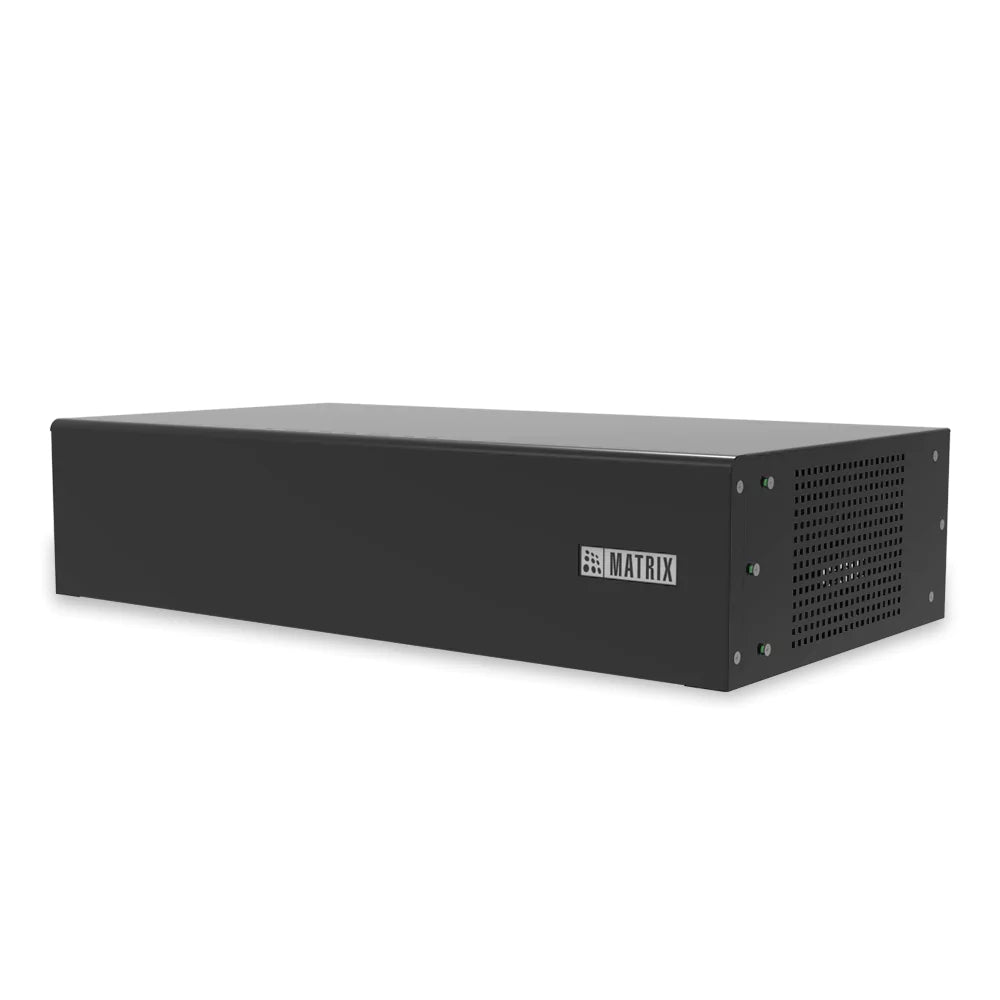

Matrix SATATYA NVR3204X P2 32 Channel NVR with 4K Support and 4 HDD Slots

Matrix SATATYA NVR3204X P2 32 Channel NVR with 4K Support and 4 HDD Slots

The Matrix SATATYA NVR3204X P2 is a high-capacity 32-channel NVR designed for demanding surveillance environments. It supports 4K video output, real-time decoding, and ultra-high resolutions up to 12MP. With four HDD slots supporting up to 18TB each, you get extended storage for long-term recording. Smart storage features like adaptive recording and camera-wise retention help save space. Stay alert with real-time notifications and instant mobile calling through the Matrix SATATYA SIGHT app.

Features

32 IP camera inputs with ultra-high-definition recording up to 12MP
4K HDMI output with decoding up to 4x 4K or 16x 1080p at 30FPS
4 SATA HDD slots supporting up to 18TB per slot (HDDs not included)
1/1 audio I/O and 2/1 alarm I/O for integrated control
Smart storage with adaptive recording and per-camera retention
Real-time alerts via SMS, email, video pop-up, and mobile notifications
Massive 512Mbps uplink and 512Mbps downlink throughput
Cascading support to monitor multiple Matrix NVRs from a central location
ONVIF compliant and compatible with third-party camera brands
NDAA compliant – suitable for government and enterprise use

Technical Specifications

Video Input: 32 IP Channels
Video Output: 4K HDMI
Audio Interface: 1 Audio In / 1 Audio Out
Alarm Interface: 2 In / 1 Out
Recording Resolution: 12MP to CIF
Decoding Capability: 4x 4K, 10x 3MP, or 16x 1080p
HDD Support: 4 SATA HDDs up to 18TB each (not included)
Throughput: 512Mbps Uplink + 512Mbps Downlink
Storage Optimization: Adaptive Recording, Camera-wise Retention
Notifications: SMS, Email, Video Pop-up, App Alerts via SATATYA SIGHT
Compliance: ONVIF, NDAA

Why Choose Matrix SATATYA NVR3204X P2?

Built for professional-grade installations, this 32-channel NVR offers powerful decoding, extended storage, and smart alerts. It’s a future-ready solution that delivers secure and scalable video surveillance across large sites.
