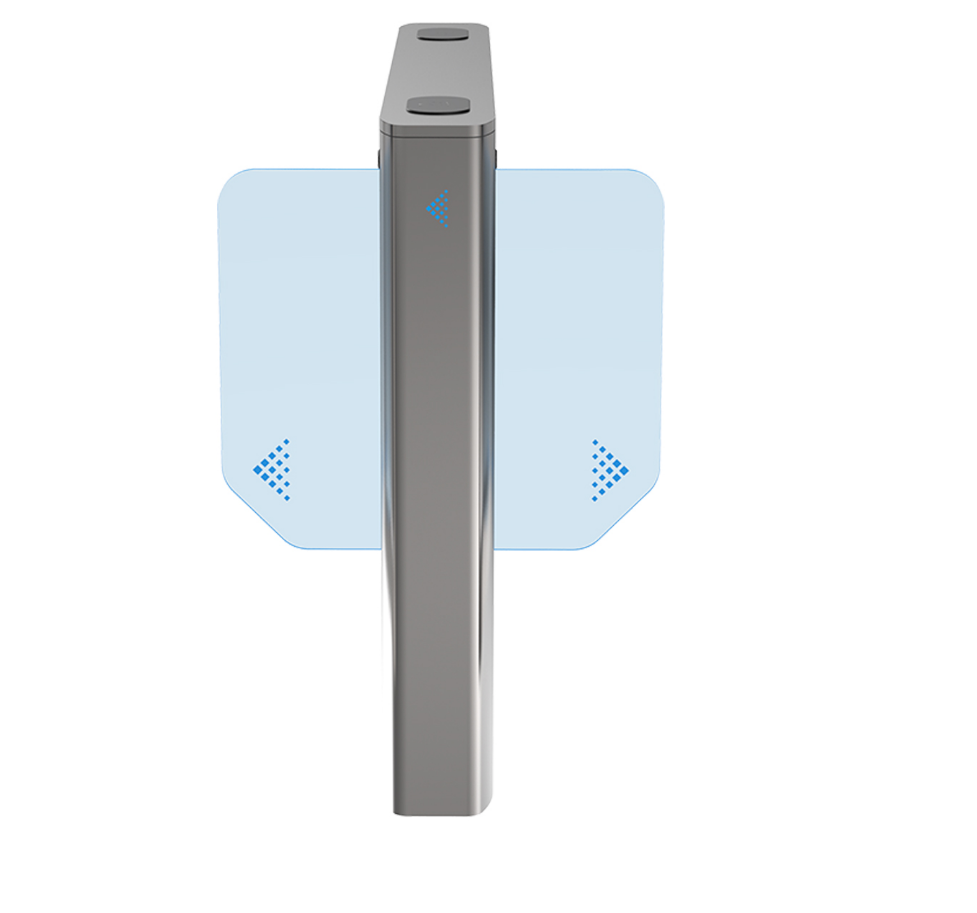

ESSL SB-ES-3216-2 Swing Barriers MULTI LANE SWING BARRIER

SB-ES-3216-2 swing barrier turnstile MULTI LANE SWING BARRIER

SB-ES-3216-2

As an industry expert, the SB-ES-3216-2 swing barrier turnstile offers efficient and secure multi-lane access control. With a swing barrier design, this turnstile ensures smooth entry and exit flow. Its advanced technology and durable construction provide reliable performance for any high-traffic environment.

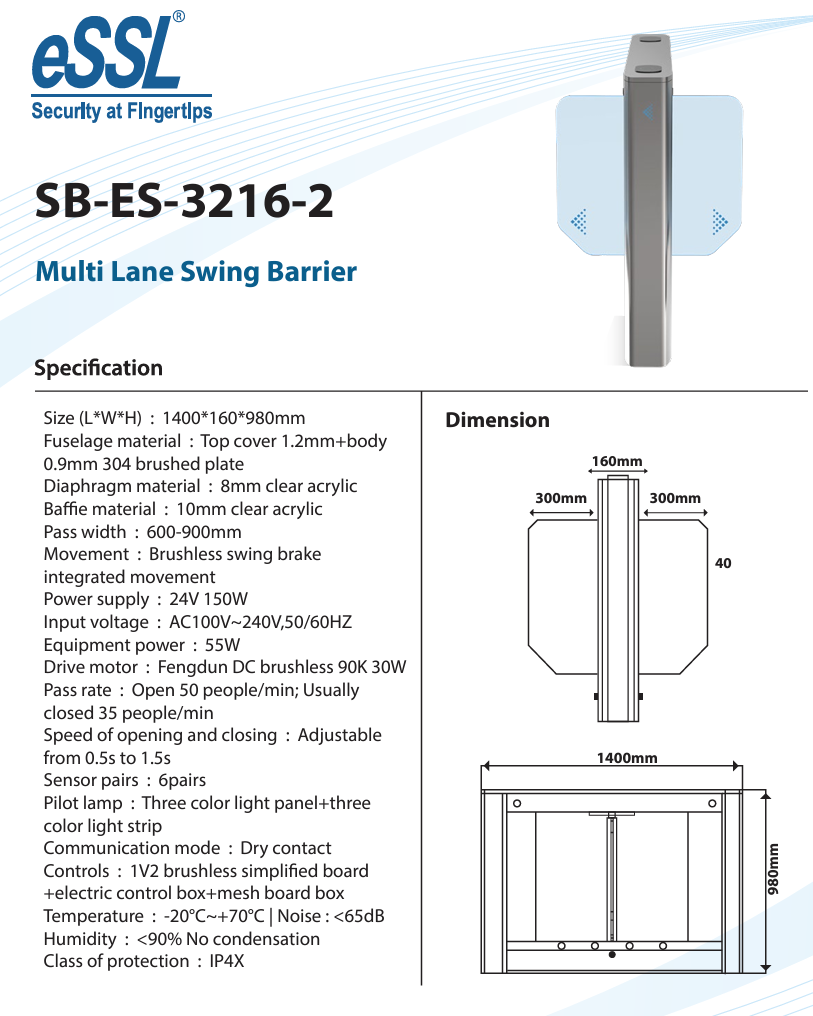

TECHNICAL SPECIFICATIONS

  • Size（L*W*H) : 1400*160*980mm
  • Fuselage material : Top cover 1.2mm+body 0.9mm 304 brushed plate
  • Diaphragm material : 8mm clear acrylic
  • Baffle material : 10mm clear acrylic
  • Pass width : 600-900mm
  • Movement : Brushless swing brake integrated movement
  • Power supply : 24V 150W
  • Input voltage : AC100V~240V,50/60HZ
  • Equipment power : 55W
  • Drive motor : Fengdun DC brushless 90K 30W
  • Pass rate : Open 50 people/min; Usually closed 35 people/min
  • Speed of opening and closing : Adjustable from 0.5s to 1.5s
  • Sensor pairs : 6 pairs
  • Pilot lamp : Three color light panel + three color light strip
  • Communication mode : Dry contact
  • Controls : 12V brushless simplified board + electric control box + mesh board box /li>
  • Temperature : -20℃~+70℃ | Noise : ≤65dB
  • Humidity : ≤90% No condensation
  • Class of protection : IP4X

FEATURES

  • Reasonable and reliable design, low noise, smooth operation and long service life
  • With function of opening doors automatically under power-off¬ state to meet the need of fire-fighting passage
  • With functions of anti-tail, anti-reverse pass and so on
  • Card can be set "with memory" or "without memory" functions
  • With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set
  • With infrared anti-clip function (anti-clip when gate is open or running)
  • Compatible with IC, ID card, scanning and face recognition, etc
  • Two modes of operation are available: open or closed
  • Various working modes are available, including two-way card reading and one-way card reading, etc.
  • Size（L*W*H) : 1400*160*980mm,
  • Fuselage material : Top cover 1.2mm+body 0.9mm 304 brushed plate ,
  • Diaphragm material : 8mm clear acrylic,
  • Pass width : 600-900mm.
