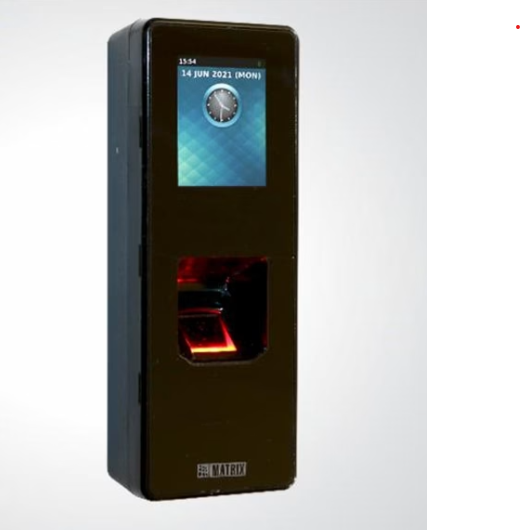

ATOM RD300SFI

HID iCLASS Card based Reader with Fingerprint & Bluetooth

HID iCLASS Card, PIN and Bluetooth Support

Connect with Third-party Control Panel/Controller over Wiegand Interface

Open Door over BLE from User’s Mobile

Compatible with COSEC ARC over RS-485 and COSEC PATH V2 DCXX, COSEC VEGA and COSEC ARGO over RS-232

Tamper Detection

Tri-color LED

CE, FCC, ROHS, BIS Certification

Matrix COSEC ATOM RD300SFI

HID iCLASS Card based Reader with Fingerprint & Bluetooth

General

• Credential Support: Fingerprint, BLE, PIN, and Card
• RF Options:
  • ATOM RD300SFE: EM Proximity Card
  • ATOM RD300SFM: Mifare Classic®/Desfire EV1 & EV2, Combo cards, NFC Tag
  • ATOM RD300SFI: HID iCLASS, MIFARE®, Desfire, Combo cards

Communication

• Inbuilt Bluetooth: Yes
• Wi-Fi: Yes (802.11 b/g/n)

Interface

• RS-232: Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2)
• Wiegand: Yes
• RS-485: Yes (Compatible with ARC DC200P)

Hardware

• Display: 2” Touch screen Display
• Display Resolution: 320 x 240 Pixel
• Dimensions (H x W x D): 153mm x 56mm x 37mm
• Weight: 330 grams (0.72 lbs)
• Gorilla Glass: Yes (Gorilla Glass 3)
• CPU: AM3352
• Tamper Detection: Yes
• Buzzer: Yes (12V Magnetic buzzer)
• LEDs: No
• Ingress Protection (IP): Yes (IP65)
• Vandal Proof (IK): Yes (IK06)

Environmental

• Operating Temperature: -20°C to +55°C
• Humidity: 5% to 95% RH Non-Condensing

Fingerprint Sensor

• Sensor Type: Optical
• Sensor Name: SFM6030-OC6
• Sensor Surface: Scratch Free
• Resolution: 500 DPI
• Sensing Area: 16.0mm x 18.0mm
