Optical Fingerprint and Card-Based Door Controller
COSEC door controllers are the front-end terminals that people use during entry and exit. Door controllers read biometric credentials - fingerprint and palm vein or RFID cards to log each entry/exit and control door locks. Door controllers are connected with the COSEC or site controller. These automatic door controllers can monitor and control additional readers, doors, and auxiliary input and output ports. They store all user access information and send entry-exit details to the COSEC in real-time.
Featuring Ethernet, Wi-Fi, and 3G/4G connectivity, COSEC door controllers offer extra flexibility in designing a security solution while reducing installation and maintenance costs. These advanced door controllers have multi-functional supervised auxiliary input and output ports to control various applications. Input devices such as motion detectors, fire alarm panels, video surveillance, etc. and external devices like video recorders, siren, etc. can be connected to these ports.
Modules such as Time-Attendance, Access Control, Cafeteria Management, Visitor Management, Visitor Management, Contract Workers Management, and Field Visit Management are supported by these door controllers. Hence, COSEC door controllers are futuristic and versatile devices designed for reliability, modularity, and high performance.
Proximity (EM Prox, HID Prox) and
Smart Cards (Mifare, NFC Tag and HID iCLASS) (COSEC CPM Module Required)
CAPACITY
Max. Users
50,000
Max. Template Storage
9,600 in 1: N Mode and 100,000 in 1:1 Mode
Event Buffer
500,000
Templates per User
Up to 10 (Single Template per Finger Mode)
Up to 5 (Dual Template per Finger Mode)
Cards per User
Up to 2
COMMUNICATION
Ethernet
Yes (10/100 Mbps)
RS-232
Yes
Mobile Broadband
Yes
Wiegand
Wiegand IN Available
USB
2 USB Port (Data Transfer and 2G-3G Dongle)
INTERFACE
Exit Switch
Yes
Door Status Sense
Programmable NO, NC, Supervised
Door Lock Relay
30V DC @ 1 A, Form C, SPDT Relay
Door Lock Power
Internal 12V DC @ 0.5A or External
Aux-In
Programmable NO, NC, Supervised
Aux-Out
30V DC @1 A, Form C, SPDT Relay
Reader Interface Types
RS-232, and Wiegand IN
HARDWARE
CPU
400 MHz ARM 9 Based Processor
Memory
256 MB Flash + 128 MB DDR3 RAM
Display
128 x 64 Dot Matrix Display
Display Size
38.1mm x 60.96mm (1.5” x 2.4”)
LED
4 LED (Status, Alarm, Allowed, Denied)
Buzzer
Yes
Keypad
16 Touch Sense Keys
Operating Temperature
0°C to +45°C (32°F to 113°F)
Humidity
5% to 85% RH Non - Condensing
Tamper Detection
Yes
Power
12V DC @ 2A
Power to Door Lock
12V DC @ 0.5A (Power to Lock from COSEC DOOR FOP)
30V DC @1 A (Power to lock from External Adaptor)
Dimensions (W x H x D)
100mm x 220mm x 56mm (3.93"x 8.66"x 2.20")
Weight
0.65 Kgs (1.43 lbs.)
COMPATBILITY
System Integration
API for Software Integration
Operational Modes
Direct Door with COSEC CENTRA Server
Panel Door with COSEC PANEL LITE V2
SENSOR
Sensor Name
Suprema Sensor
Sensor Technology
Optical Sensing
Encryption
256-bit AES
Water-proof
Yes
False Acceptance Ratio (FAR)
0.001%
False Rejection Ratio (FRR)
0.01%
Resolution (dpi)
500 dpi
Sensing Area
16.0mm x 19.0mm
Template Size
256 ̴ 384 bytes (Configurable, 384 bytes default)
Image Size (Pixel)
272mm x 320mm
APPLICATIONS
Access Control
Time-Attendance
Visitor Management
Contract Workers' Management
Cafeteria Management
Job Processing and Costing
[/su_table]
TECHNICAL SPECIFICATIONS
If you want to get more details please fill the form below. Our experts will contact you to give face attendance and various other solutions as per your requirements. Call us at 9315441078 or email us at info@ampletrails.com
[wpforms id="25849"]
Share
Got questions? Email at info@ampletrails.com Call us 24/7! +91 9315441053, +91 9315441078, +91 9034757673

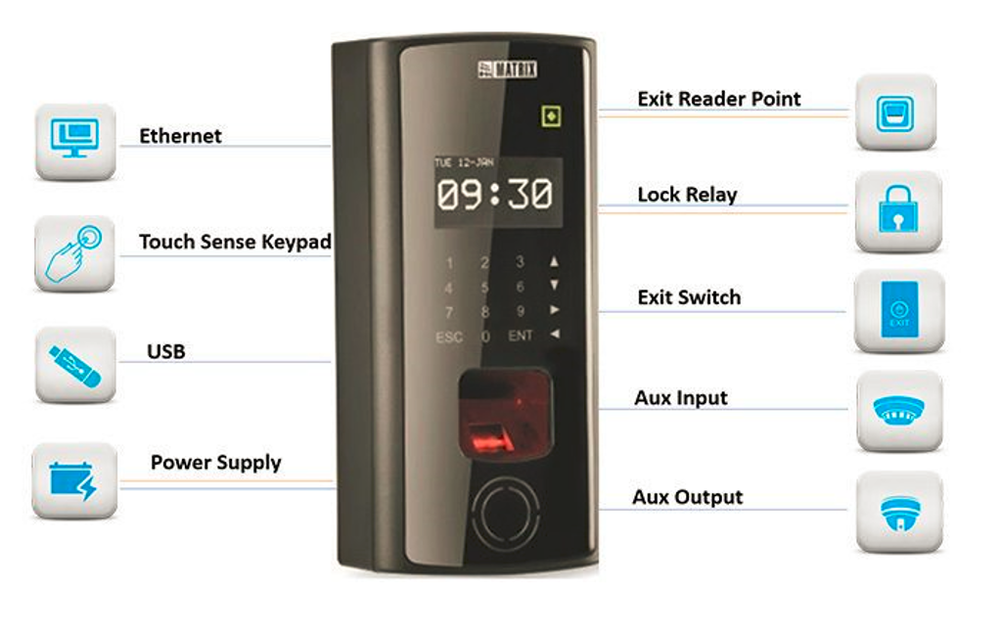

COSEC DOOR FOP V3[/caption]
