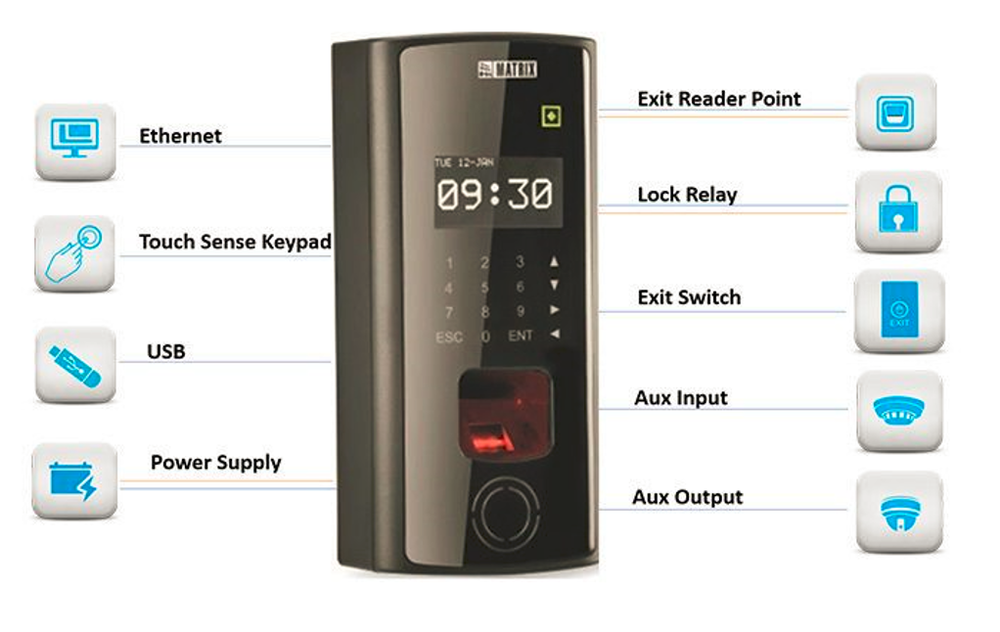

COSEC DOOR FOTW

Features of COSEC DOOR FOTW

Fingerprint and Card based Time-Attendance Terminal with PoE, Wi-Fi and BLE COSEC door controllers are the front-end terminals that people use during entry and exit. Door controllers read biometric credentials - fingerprint and palm vein or RFID cards to log each entry/exit and control door locks. Door controllers are connected with the COSEC or site controller. These automatic door controllers can monitor and control additional readers, doors, and auxiliary input and output ports. They store all user access information and send entry-exit details to the COSEC in real-time. Featuring Ethernet, Wi-Fi, and 3G/4G connectivity, COSEC door controllers offer extra flexibility in designing a security solution while reducing installation and maintenance costs. These advanced door controllers have multi-functional supervised auxiliary input and output ports to control various applications. Input devices such as motion detectors, fire alarm panels, video surveillance, etc. and external devices like video recorders, siren, etc. can be connected to these ports. Modules such as Time-Attendance, Access Control, Cafeteria Management, Visitor Management, Visitor Management, Contract Workers Management, and Field Visit Management are supported by these door controllers. Hence, COSEC door controllers are futuristic and versatile devices designed for reliability, modularity, and high performance.

COSEC VARIANTS

• ARGO Series
• VEGA Series
• DOOR Series
• PATH Series
• ARC Series

[caption id="attachment_21714" align="aligncenter" width="1420"] COSEC DOOR FOTW[/caption] Technical_Specification_COSEC_DOOR_FOTW [su_button url="https://ampletrails.com/wp-content/uploads/2020/10/Technical_Specification_COSEC_DOOR_FOTW.pdf" target="blank" style="soft" center="yes" icon="icon: envelope-o" text_shadow="0px 0px 0px #000000" desc="Download Datasheet "] COSEC DOOR FOTW [/su_button]   [su_table]

GENERAL
Credential Support	Fingerprint, RFID Card and PIN
RF Option	Proximity (EM Prox) (COSEC CPM Module Required)

CAPACITY
Max. Users	50,000
Max. Template Storage	9,600 in 1: N Mode and 100,000 in 1:1 Mode
Event Buffer	500,000
Templates per User	Up to 10 (Single Template per Finger Mode) Up to 5 (Dual Template per Finger Mode)
Cards per User	Up to 2

COMMUNICATION
Ethernet	Yes (10/100 Mbps)
PoE	YES (IEEE 802.3 af)
Wi-Fi	Yes
BLE	Yes, Built-In (BLE version 4.2)
Mobile Broadband	Yes (External USB Dongle Required)
USB	2 USB Port (Data Transfer and 2G-3G Dongle)

HARDWARE
CPU	800 MHz Cortex A8 (TI AM3352)
Memory	256 MB Flash + 128 MB DDR3 RAM
Display	128 x 64 Dot Matrix Display
Display Size	38.1mm x 60.96mm (1.5” x 2.4”)
LED	4 LED (Status, Alarm, Allowed, Denied)
Buzzer	Yes
Keypad	16 Touch Sense Keys
Operating Temperature	0°C to +45°C (32°F to 113°F)
Humidity	5% to 85% RH Non - Condensing
Tamper Detection	Yes
Power	12V DC @ 2A
Dimensions (W x H x D)	100mm x 220mm x 56mm (3.93"x 8.66"x 2.20")
Weight	0.65 Kgs (1.43 lbs.)

SENSOR
Sensor Name	Suprema Sensor
Sensor Technology	Optical Sensing
Encryption	256-bit AES
Water-proof	Yes
False Acceptance Ratio (FAR)	0.001%
False Rejection Ratio (FRR)	0.01%
Resolution (dpi)	500 dpi
Sensing Area	16.0mm x 19.0mm
Template Size	256 ? 384 bytes (Configurable, 384 bytes default)
Image Size (Pixel)	272mm x 320mm

APPLICATIONS

• Access Control
• Time-Attendance
• Visitor Management
• Contract Workers' Management
• Cafeteria Management
• Job Processing and Costing
