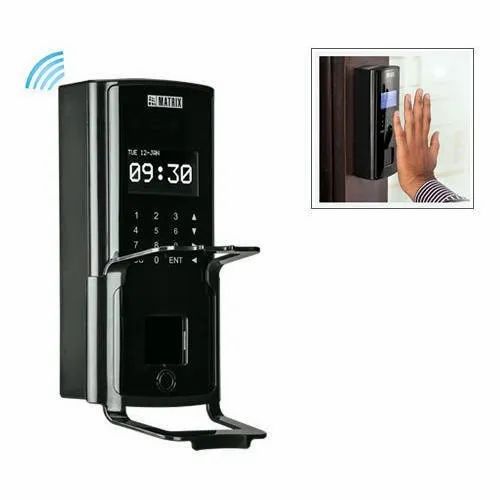

COSEC DOOR PVR Access Control System

The COSEC DOOR PVR is a high-security palm vein-based door controller designed for advanced biometric access control and attendance management. It uses palm vein recognition technology, which offers superior accuracy and security compared to traditional fingerprint systems. The device is suitable for high-security environments where strong authentication and anti-spoofing capabilities are required.

It is part of the COSEC ecosystem and supports centralized management of access control, attendance, visitor tracking, and workforce management through COSEC CENTRA software.

⬇ Download Datasheet PDF

Key Features

Palm Vein, RFID Card & PIN-based authentication
Advanced palm vein biometric recognition technology
Supports EM Prox, HID Prox, MIFARE, NFC & HID iCLASS cards (via CPM module)
Ethernet (10/100 Mbps), Wi-Fi & RS-232 connectivity
Wiegand IN/OUT support for external integration
Mobile broadband support via USB dongle
Up to 10,000 users capacity
Up to 20,000 biometric templates storage
Event buffer storage up to 100,000 records
Supports up to 10 palm templates per user
Supports 2 palms per user registration
16-key touch keypad with LED indicators & buzzer
Tamper detection for enhanced physical security
Built-in relay for door lock control
Supports internal and external door lock power supply

Advanced Capabilities

Highly secure palm vein authentication prevents spoofing and duplication
Real-time event synchronization with COSEC server
Supports standalone and networked deployment modes
Integration with multiple security modules and COSEC platform
Supports multi-device and multi-door access control systems
API support for third-party software integration
Secure AES 256-bit encrypted biometric processing

Why Choose COSEC DOOR PVR?

Most secure biometric modality (palm vein technology)
High resistance to spoofing and fake authentication attempts
Ideal for high-security zones like banks and government facilities
Flexible connectivity options for enterprise deployment
Scalable system for centralized access control
Reliable performance in harsh usage environments
Seamless integration with COSEC CENTRA platform

Applications

Banking & Financial Institutions
Government Buildings
Defence & High-Security Areas
Corporate Offices
Research Laboratories
Healthcare & Hospitals
Data Centers
Restricted Access Zones

Technical Specifications

Specification	Details
Credential Support	Palm Vein, RFID Card, PIN
RF Options	EM Prox, HID Prox (via COSEC CPM module)
User Capacity	Up to 10,000 Users
Template Storage	Up to 20,000 Templates
Event Buffer	Up to 100,000 Records
Palm Templates per User	Up to 10 (Multi-Palm Support)
Palm Registration	Up to 2 Palms per User
Connectivity	Ethernet, Wi-Fi, RS-232, Wiegand IN/OUT, USB (Mobile Dongle Support)
Display	128 × 64 Dot Matrix Display
Keypad	16 Touch Sense Keys
Sensor Type	Suprema Palm Vein Sensor
Encryption	AES 256-bit biometric security
False Acceptance Rate (FAR)	0.001%
False Rejection Rate (FRR)	0.01%
Power Supply	12V DC @ 2A
Operating Temperature	0°C to 45°C
Humidity	5% to 85% RH (Non-condensing)
Protection	Water-resistant, Tamper Detection Enabled
Dimensions	100mm × 220mm × 56mm
Weight	0.65 kg
