COSEC DOOR PVR ES

Features of COSEC DOOR PVR ES

Palm Vein based Door Controller With External Sensor COSEC door controllers are the front-end terminals that people use during entry and exit. Door controllers read biometric credentials - fingerprint and palm vein or RFID cards to log each entry/exit and control door locks. Door controllers are connected with the COSEC or site controller. These automatic door controllers can monitor and control additional readers, doors, and auxiliary input and output ports. They store all user access information and send entry-exit details to the COSEC in real-time. Featuring Ethernet, Wi-Fi, and 3G/4G connectivity, COSEC door controllers offer extra flexibility in designing a security solution while reducing installation and maintenance costs. These advanced door controllers have multi-functional supervised auxiliary input and output ports to control various applications. Input devices such as motion detectors, fire alarm panels, video surveillance, etc. and external devices like video recorders, siren, etc. can be connected to these ports. Modules such as Time-Attendance, Access Control, Cafeteria Management, Visitor Management, Visitor Management, Contract Workers Management, and Field Visit Management are supported by these door controllers. Hence, COSEC door controllers are futuristic and versatile devices designed for reliability, modularity, and high performance.

COSEC VARIANTS

• ARGO Series
• VEGA Series
• DOOR Series
• PATH Series
• ARC Series

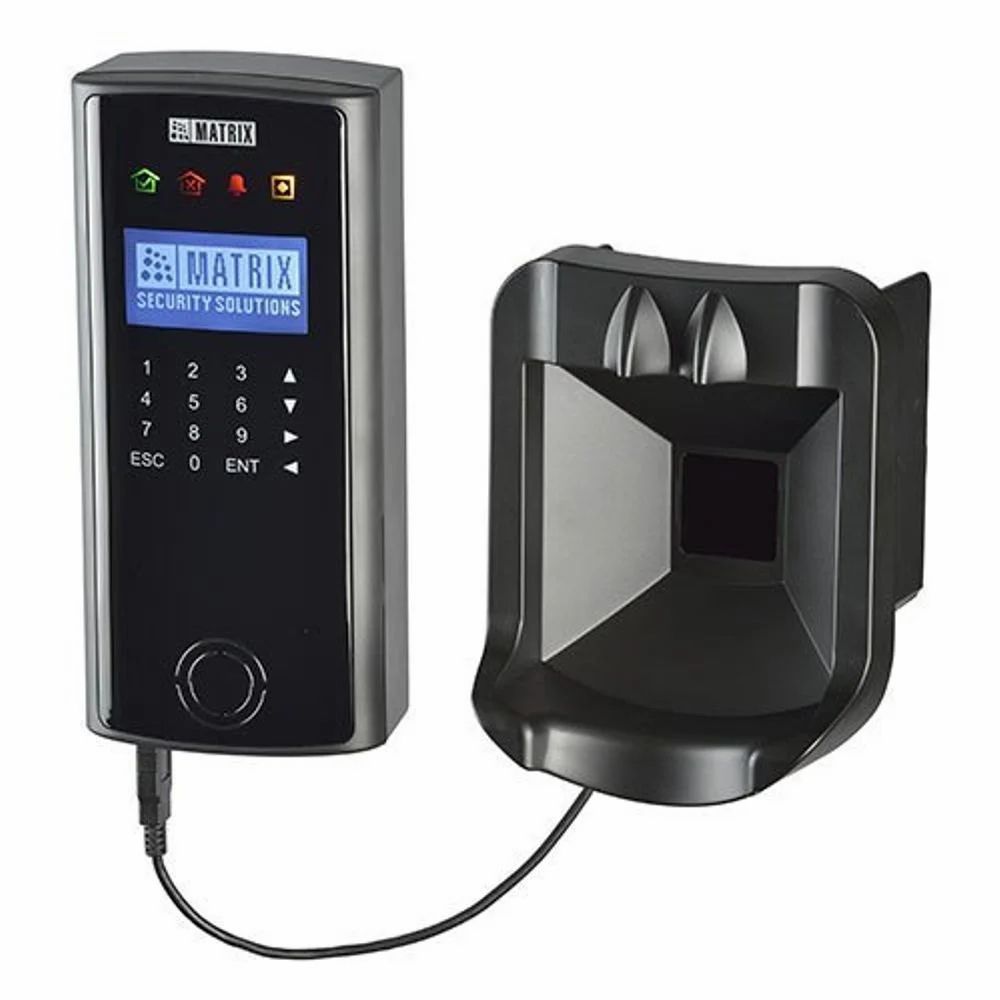

[caption id="attachment_21714" align="aligncenter" width="1420"] COSEC DOOR PVR ES[/caption] Technical_Specification_COSEC_DOOR_PVR_ES [su_button url="https://ampletrails.com/wp-content/uploads/2020/10/Technical_Specification_COSEC_DOOR_PVR_ES.pdf" target="blank" style="soft" center="yes" icon="icon: envelope-o" text_shadow="0px 0px 0px #000000" desc="Download Datasheet "] COSEC DOOR PVR ES [/su_button]   [su_table]

GENERAL
Credential Support	Palm Vein, RFID Card and PIN
RF Option	Proximity (EM Prox and HID Prox) and Smart Cards (Mifare, NFC Tag and HID iCLASS) (COSEC CPM Module Required)

CAPACITY
Max. Users	10,000
Max. Template Storage	20,000
Event Buffer	100,000
Templates per User	Up to 10 Templates (Multi-Palm)
Cards per User	Up to 2
Palms per User	Up to 2

COMMUNICATION
Wi-Fi	Yes (802.11 b/g/n)
Ethernet	Yes (10/100 Mbps)
RS-232	Yes
Mobile Broadband	Yes
Wiegand	Wiegand IN, Wiegand OUT Available
USB	2 USB Port (Data Transfer and Broadband Dongle)

INTERFACE
Exit Switch	Yes
Door Status Sense	Programmable NO, NC, Supervised
Door Lock Relay	30V DC @ 1 A, Form C, SPDT Relay
Door Lock Power	Internal 12 VDC @ 0.5A or External
Aux-In	Programmable NO, NC, Supervised
Aux-Out	30V DC @1 A, Form C, SPDT Relay
Reader Interface Types	RS-232, and Wiegand IN/OUT

HARDWARE
CPU	1 GHz ARM Cortex A8 Based Processor
Memory	256 MB Flash + 512 MB DDR3 RAM
Display	128 x 64 Dot Matrix Display

Display Size	38.1mm x 60.96mm (1.5” x 2.4”)
LED	4 LED (Status, Alarm, Allowed, Denied)
Buzzer	Yes
Keypad	16 Touch Sense Keys
Operating Temperature	0°C to +45°C (32°F to 113°F)
Humidity	5% to 85% RH Non - Condensing
Tamper Detection	Yes
Power	12V DC @ 2A
Power to Door Lock	12V DC @ 0.5A (Power to Lock from COSEC DOOR PVR) 30V DC @1 A (Power to lock from External Adaptor)
Dimensions (W x H x D)	100mm x 220mm x 56mm (3.93"x 8.66"x 2.20")
Weight	0.65 Kgs (1.43 lbs.)

CERTIFICATES
	CE, FCC, RoHS, IEC, BIS



COMPATBILITY
System Integration	API for Software Integration
Operational Modes	Direct Door with COSEC CENTRA Server Panel Door with COSEC PANEL LITE V2



SENSOR
Sensor Name	Suprema Sensor
Sensor Technology	Optical Sensing
Encryption	256-bit AES
Water-proof	Yes
False Acceptance Ratio (FAR)	0.001%
False Rejection Ratio (FRR)	0.01%
Resolution (dpi)	500 dpi
Sensing Area	16.0mm x 19.0mm
Template Size	256 ? 384 bytes (Configurable, 384 bytes default)
Image Size (Pixel)	272mm x 320mm

APPLICATIONS

• Access Control
• Time-Attendance
• Visitor Management
• Contract Workers' Management
• Cafeteria Management
• Job Processing and Costing
