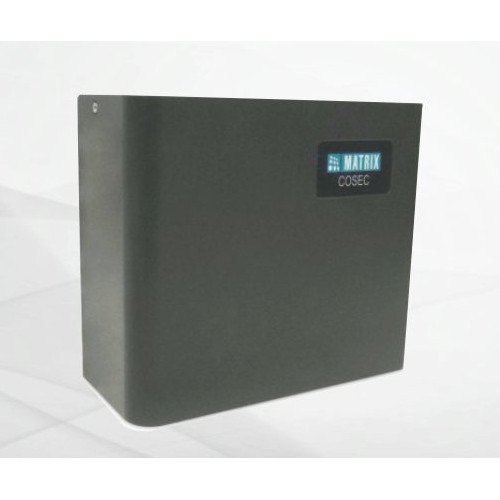

Matrix COSEC PSBB12V

Matrix COSEC PSBB12V Power Supply & Battery Backup System

The Matrix COSEC PSBB12V is a reliable power supply unit with integrated battery backup designed to ensure uninterrupted operation of COSEC door controllers. It provides continuous power during electricity failures, making it an essential component for access control systems in critical security environments.

This unit is designed to support COSEC PATH, VEGA, ARGO, and other COSEC series devices, ensuring stable performance and protection against power interruptions. It is widely used in enterprise, industrial, and institutional access control deployments.

Key Features

• Universal AC input support (100–265 VAC)
• Built-in battery backup system for uninterrupted operation
• Stable DC output for COSEC door controllers
• Supports 12V sealed lead acid battery
• Designed for COSEC PATH, VEGA, ARGO and SIGMA controllers
• Provides backup power for approximately 4–5 hours
• Low ripple voltage for stable performance
• Compact and durable design

Power Backup & Reliability

• Ensures continuous operation during power failure
• Automatic battery charging and switching system
• Protects controllers from sudden power loss
• Enhances overall system uptime and reliability

Electrical Specifications

• Main Input Voltage: 100–265 VAC, 47–63 Hz
• Maximum Power Output: 60W
• Output Voltage: 13.8 VDC
• Output Current: 2A
• Battery Charging Voltage: 13.8V
• Battery Charging Current: 1A
• Ripple Voltage: < 100mV

Battery Specifications

• Battery Type: 12V Sealed Lead Acid
• Recommended Capacity: 3.2Ah
• Suggested Model: Vision CP-1232 or equivalent
• Battery is not included with unit

Protection & Safety Features

• Glass fuse protection (1A fast blow)
• Overload and short-circuit protection
• Stable voltage regulation for sensitive devices
• Safe battery charging mechanism

Physical Specifications

• PSBB12V Dimensions: 173mm × 150mm × 80mm
• Battery Dimensions: 134mm × 67mm × 67mm
• Compact wall-mountable design
• Suitable for indoor installation

Applications

• Access Control Systems
• Time-Attendance Systems
• Corporate Offices
• Industrial Facilities
• Government Buildings
• Educational Institutions
• Critical Security Installations

Summary

COSEC PSBB12V is a robust and efficient power supply with battery backup designed to ensure uninterrupted operation of Matrix COSEC door controllers. With stable voltage output, automatic battery charging, and reliable backup support, it is an essential component for maintaining continuous access control system performance.
