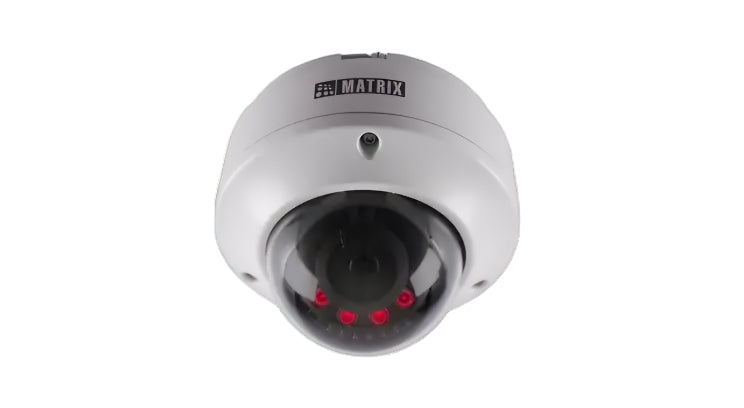

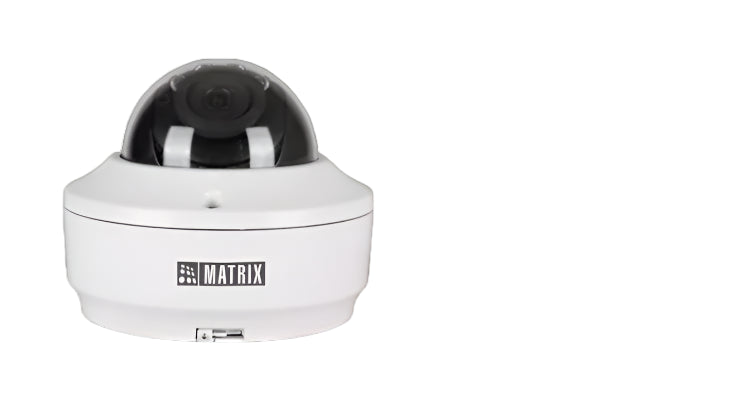

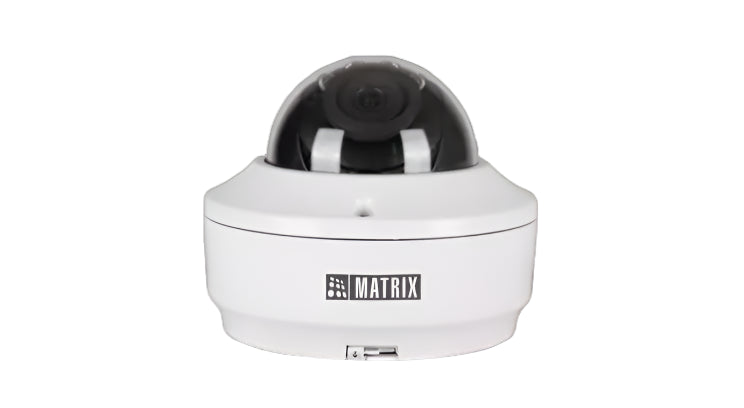

Matrix Satatya MIDR80FL28CWP 8MP IR Dome Camera with 2.8mm Lens and Audio Support

Matrix Satatya MIDR80FL28CWP 8MP IR Dome Camera with 2.8mm Lens and Audio Support

Designed for compact, discreet indoor surveillance, the Matrix Satatya MIDR80FL28CWP combines powerful performance with sleek aesthetics. Equipped with a high-quality SONY STARVIS CMOS sensor, this 8MP dome camera captures crystal-clear video, even in low light. With quad-streaming, smart streaming, and edge recording up to 512GB, it delivers exceptional bandwidth management and storage optimization. Ideal for offices, retail spaces, and indoor corridors, it offers a seamless blend of smart features, cybersecurity, and versatile installation.

Proactive, Secure, and Efficient

Engineered for reliability and built with enterprise-grade cybersecurity, this camera features intelligent video analytics, two-way audio, and NDAA compliance—making it suitable for critical indoor surveillance scenarios. Its wide field of view, adaptive bitrate streaming, and multiple lens options make it a flexible choice for diverse installation needs.

Features

8MP SONY STARVIS CMOS Sensor for low-light performance

Wide Field of View – Up to 127.9° diagonal (2.8mm lens)

True WDR (120dB) and 3D Noise Reduction for enhanced image clarity

IR Range up to 30m with Auto/Manual IR switching

Two-way Audio Support (Premium Variants)

Video Compression: H.265, H.264, MJPEG

Quad Stream Support with smart streaming and adaptive bitrate

Region of Interest (ROI) streaming for bandwidth efficiency

Edge Recording with SD card support up to 512GB

Cybersecurity: AES 256-bit encryption, RSA 2048, secure boot, signed firmware

Video Analytics: Motion, Tamper, Intrusion, Tripwire Detection

ONVIF Profiles S & G, NDAA Compliant

Power Supply: 12V DC or PoE

Discreet Mini Dome Design for indoor ceiling mount applications

Technical Specifications

Image Sensor: 1/2.8" SONY – CMOS (STARVIS Series)
Resolution: 8MP (3840×2160)
Minimum Illumination: 0.01 Lux (Color), 0 Lux (B/W with IR ON)
Lens Options: 2.8mm, 3.6mm, 6mm (Fixed)
Field of View:

2.8mm: HFOV 106.9°, VFOV 56.9°, DFOV 127.9°

3.6mm: HFOV 84°, VFOV 47.8°, DFOV 96.4°

6mm: HFOV 51.26°, VFOV 28.84°, DFOV 58.74°

IR Range: Up to 30 meters
Audio Support: Two-way audio (Premium), G.711, G.726
Compression Formats: H.265, H.264, MJPEG
Bitrate: 128Kbps–16Mbps, CBR/VBR
Streams: 4 stream profiles, max 3840×2160 @30fps
Storage: SD Card up to 512GB, NAS, SFTP
Video Features: ROI, BLC, Day/Night, Privacy Masking (8), True WDR, Smart IR
Analytics: Motion, Intrusion, Tamper, Tripwire, Audio Exception (Premium only)
Cybersecurity: AES 256, RSA 2048, Secure Boot, Signed Firmware, TLS 1.2
Operating Temp: -30°C to +60°C
Certifications: NDAA Compliant, IP Conflict & Network Alerts
Power: 12V DC, PoE (802.3af), 7W max

Why Choose Matrix Satatya MIDR80FL28CWP 8MP IR Dome Camera?

If you need a compact, powerful camera for indoor surveillance with wide-angle clarity, the Matrix Satatya MIDR80FL28CWP is your go-to solution. With its intelligent analytics, advanced compression, and cybersecure architecture, it is built for modern businesses that demand both discretion and performance. Perfect for professional environments where aesthetics meet reliability.
