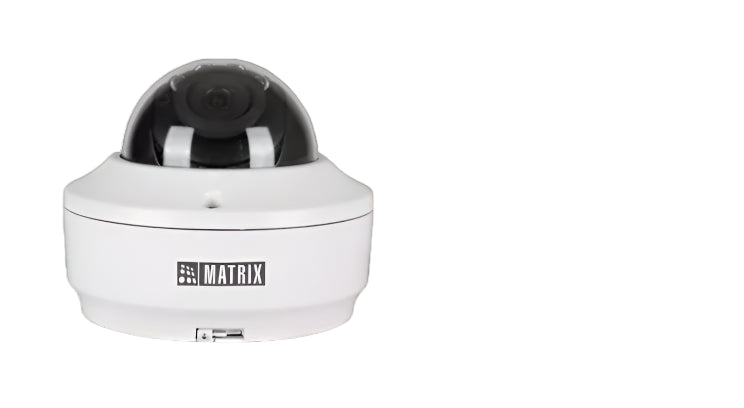

Matrix Satatya MIDR80FL36CWP 8MP IR Dome Camera with 3.6mm Lens and Audio Support

Matrix Satatya MIDR80FL36CWP 8MP IR Dome Camera with 3.6mm Lens and Audio Support

The Matrix Satatya MIDR80FL36CWP is a high-performance, compact IR dome camera designed for discreet, effective indoor surveillance. Equipped with a cutting-edge SONY STARVIS CMOS sensor, this 8MP camera provides exceptional image quality, even in low-light conditions. With its advanced streaming capabilities, including quad-streaming and smart streaming, along with edge recording support for up to 512GB of storage, it ensures efficient bandwidth management and optimized storage. Ideal for offices, retail spaces, and corridors, it combines powerful features with sleek design, offering a reliable solution for indoor surveillance.

Proactive, Secure, and Efficient Surveillance

Designed with enterprise-grade cybersecurity, this camera offers intelligent video analytics, two-way audio support (Premium variants), and NDAA compliance for secure and proactive surveillance. The camera’s wide field of view, adaptive bitrate streaming, and multiple lens options make it adaptable for a variety of surveillance needs, from large open spaces to more focused areas.

Features

8MP SONY STARVIS CMOS Sensor for superior low-light performance
Wide Field of View – Up to 96.4° diagonal (3.6mm lens)
True WDR (120dB) and 3D Noise Reduction for enhanced image clarity
IR Range up to 30m with Auto/Manual IR switching for reliable night-time performance
Two-way Audio Support (Premium Variants)
Video Compression: H.265, H.264, MJPEG for efficient storage and bandwidth use
Quad Stream Support with smart streaming and adaptive bitrate for flexibility
Region of Interest (ROI) streaming for bandwidth optimization
Edge Recording with SD card support up to 512GB for uninterrupted monitoring
Cybersecurity: AES 256-bit encryption, RSA 2048, secure boot, signed firmware for data protection
Video Analytics: Motion detection, Tamper detection, Intrusion detection, Tripwire detection, Audio exception (Premium variants only)
ONVIF Profiles S & G, NDAA Compliant for compatibility and secure integration
Power Supply: 12V DC or PoE for flexible installation
Discreet Mini Dome Design ideal for ceiling mount applications in indoor environments

Technical Specifications

Image Sensor: 1/2.8" SONY – CMOS (STARVIS Series)
Resolution: 8MP (3840×2160)
Minimum Illumination: 0.01 Lux (Color), 0 Lux (B/W with IR ON)
Lens Options: 3.6mm (Fixed), with additional options of 2.8mm and 6mm
Field of View:

2.8mm: HFOV 106.9°, VFOV 56.9°, DFOV 127.9°

3.6mm: HFOV 84°, VFOV 47.8°, DFOV 96.4°

6mm: HFOV 51.26°, VFOV 28.84°, DFOV 58.74°
IR Range: Up to 30 meters
Audio Support: Two-way audio (Premium), G.711, G.726
Compression Formats: H.265, H.264, MJPEG
Bitrate: 128Kbps–16Mbps, CBR/VBR
Streams: 4 stream profiles, max 3840×2160 @30fps
Storage: SD Card up to 512GB, NAS, SFTP
Video Features: ROI, BLC, Day/Night, Privacy Masking (8), True WDR, Smart IR
Analytics: Motion, Intrusion, Tamper, Tripwire, Audio Exception (Premium only)
Cybersecurity: AES 256, RSA 2048, Secure Boot, Signed Firmware, TLS 1.2
Operating Temp: -30°C to +60°C
Certifications: NDAA Compliant, IP Conflict & Network Alerts
Power: 12V DC, PoE (802.3af), 7W max

Why Choose Matrix Satatya MIDR80FL36CWP 8MP IR Dome Camera?

For those seeking a compact, powerful indoor surveillance solution with broad coverage and precise image quality, the Matrix Satatya MIDR80FL36CWP stands out. Its intelligent video analytics, robust compression technologies, and cybersecure architecture make it a perfect choice for modern business environments that demand both performance and reliability. Its discreet design and wide field of view make it an ideal fit for diverse indoor spaces, ensuring both form and function are met.
