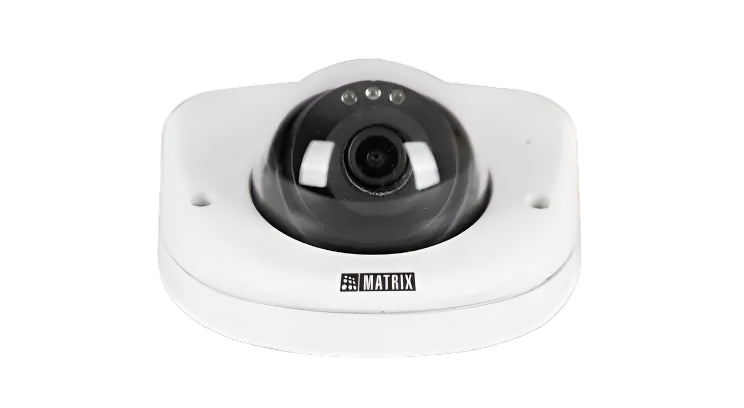

Matrix Satatya RIDR20FL36CWP 2MP IR Ruggedized Camera with 3.6mm Lens

Matrix Satatya RIDR20FL36CWP 2MP IR Ruggedized Camera with 3.6mm Lens

The Matrix Satatya RIDR20FL36CWP 2MP IR Ruggedized Camera is a high-performance IP camera engineered to meet the demands of mobile surveillance in the transportation sector. Whether deployed in railways or roadways, this ruggedized camera delivers crystal-clear imagery even in challenging environments. Equipped with a STARVIS Series SONY CMOS sensor, it ensures high-quality video in low-light and high-speed conditions. Designed to be shock-resistant and weatherproof, this camera offers complete reliability on the move. It supports multiple video streams, edge recording via SD card, PoE connectivity, and robust cybersecurity compliance, making it ideal for mission-critical applications in transit monitoring and mobile asset protection.

Features

Built for Transportation The Ruggedized Series is purpose-built for mobile applications like railways and roadways, ensuring durability and performance on the move.

Superior Low-Light Performance Equipped with a high-efficiency SONY STARVIS CMOS sensor to deliver exceptional image clarity even in near-dark environments.

Zero-Lux Clarity Provides complete visibility with IR LEDs that support zero-lux conditions and a night vision range up to 30 meters.

High Compression Efficiency Supports H.265, H.264, and M-JPEG compression to reduce bandwidth and storage consumption without compromising video quality.

Smart Audio & Alarm Integration Features built-in microphone, 1/1 audio I/O, and 1/1 alarm I/O for interactive monitoring and real-time alert management.

Robust Build & Protection Certified IK10 vandal-resistant, IP68 weatherproof, EN50155 and EN45545-HL2 railway-compliant, and NEMA 4X for outdoor protection.

Cyber-Secured Compliance Fully adheres to ISO / IEC 27402 standards and NDAA regulations to ensure a secure and trustworthy surveillance solution.

Technical Specifications

Image Sensor 1/2.8” SONY CMOS (STARVIS Series) for high-sensitivity performance

Resolution 2MP for Full HD video capture

Minimum Illumination 0 Lux with IR LED ON for total darkness imaging

IR Distance Up to 30 meters of infrared night vision

Lens 3.6mm fixed lens for optimal field of view

Video Compression Supports H.265, H.264, and M-JPEG formats

Streaming Quad stream support for optimized network usage

Audio & Alarm I/O 1/1 Audio I/O and 1/1 Alarm I/O for real-time monitoring and response

Storage Support SD card up to 512GB and NAS storage capabilities

Power PoE supported for simplified installation

Certifications BIS, CE, FCC, RoHS, IK10, IP68, EN50155, EN45545-HL2, NEMA 4X

Compliance Cyber Secured (ISO/IEC 27402), NDAA Compliant, and ER Compliant

Why Choose Matrix Satatya RIDR20FL36CWP 2MP Rugged Camera?

Choosing the Matrix Satatya RIDR20FL36CWP means investing in a rugged surveillance solution that thrives in motion. Whether monitoring a fast-moving train or a public bus, this camera delivers exceptional performance under harsh conditions. With superior low-light capabilities, robust environmental certifications, and a full suite of smart features, it's the ideal choice for mobile surveillance systems. Combine this with advanced cybersecurity compliance and industry certifications, and you have a camera built for today’s most demanding transportation environments.
