SATATYA CIBR20FL28CWS Matrix Camera

Rs. 0.00

Sale Sold out

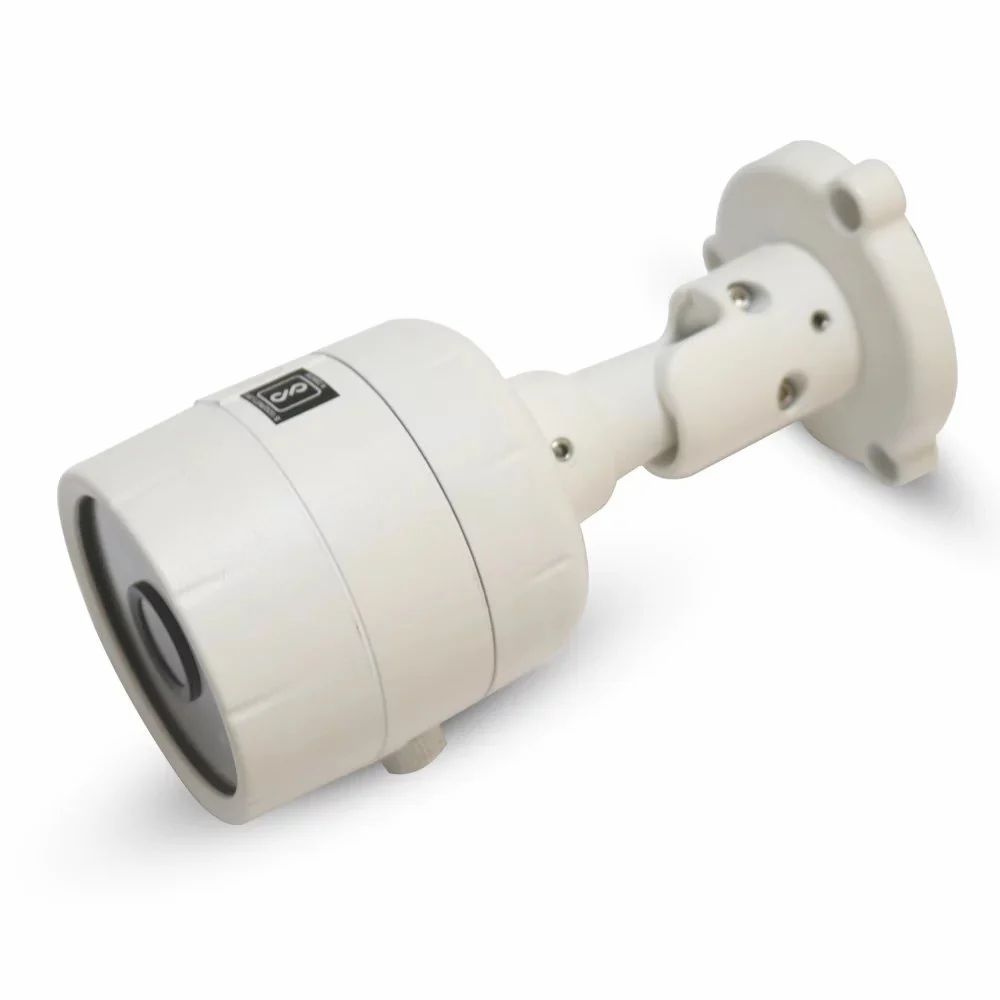

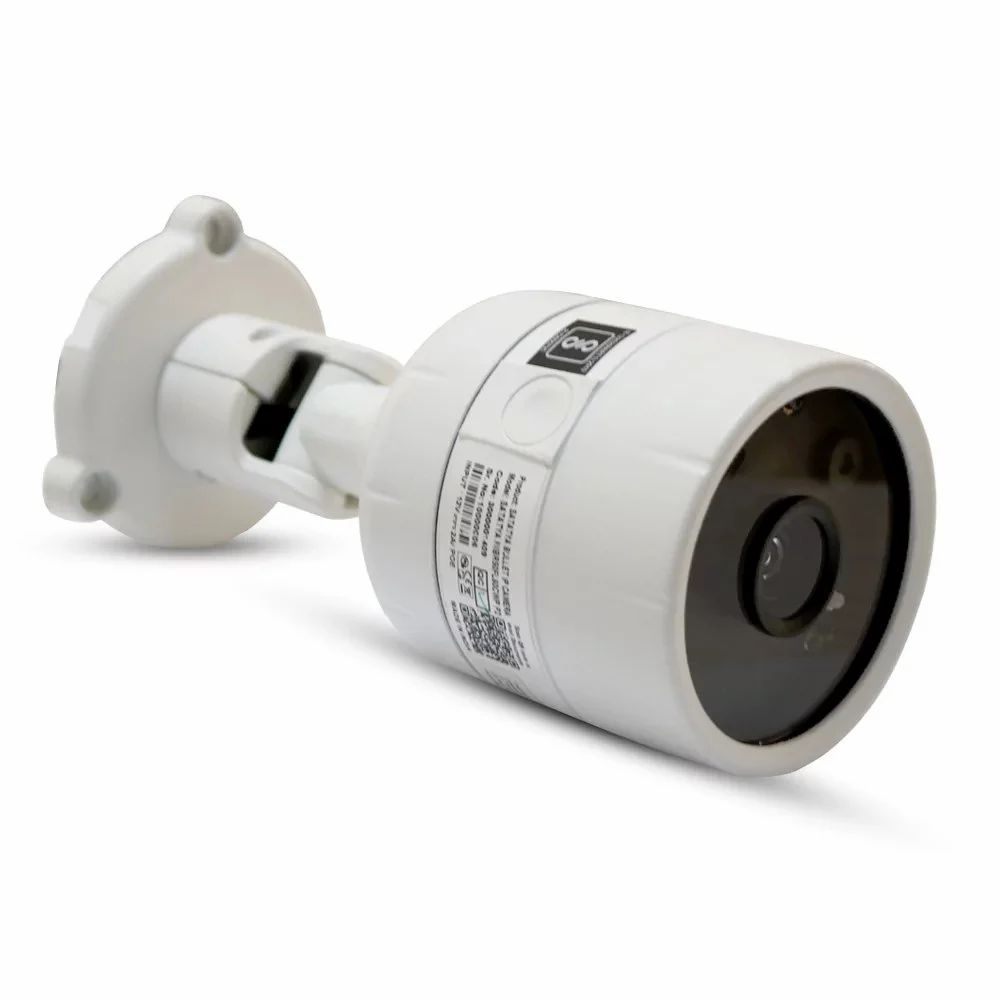

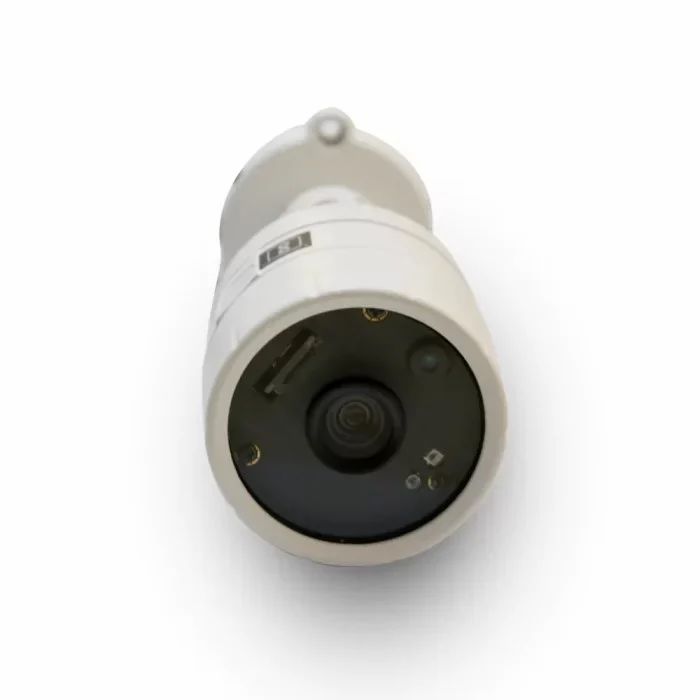

Matrix SATATYA CIBR20FL28CWS 2MP IR Bullet IP Camera

Matrix SATATYA CIBR20FL28CWS is a high-performance 2MP IR Bullet Network Camera designed for enterprise and project surveillance applications. Equipped with a SONY STARVIS sensor, H.265 compression, True WDR (120dB), and onboard storage support up to 512GB, this camera delivers excellent image quality even in low-light conditions while reducing bandwidth and storage requirements.

📄 Download Datasheet PDF

Product Description

The Matrix SATATYA CIBR20FL28CWS 2MP Bullet Camera is engineered to provide superior surveillance performance for commercial, industrial, and enterprise environments. Powered by Sony STARVIS technology, the camera captures clear and detailed images even under extremely low-light conditions.

Its H.265 compression technology minimizes bandwidth and storage usage by up to 50%, making it ideal for multi-location installations. With True Wide Dynamic Range (120dB), intelligent video analytics, adaptive streaming, and edge recording capabilities, this camera offers reliable and efficient monitoring around the clock.

Featuring a fixed 2.8mm lens with a wide 113° horizontal field of view and 50-meter IR range, the camera ensures excellent coverage for indoor and outdoor surveillance applications.

Key Features

SONY STARVIS Back-Illuminated Image Sensor
2MP Full HD Resolution (1920 × 1080)
H.265 / H.264 / MJPEG Video Compression
True WDR (120dB) for challenging lighting conditions
Smart Streaming and Adaptive Streaming Technology
Supports Edge Recording and Motion Recording
On-board Storage Support up to 512GB SD Card
High Signal-to-Noise Ratio (>70dB)
50 Meter IR Night Vision
IP66 Weatherproof and IK10 Vandal Resistant
PoE (802.3af) Support
Multiple Video Streams (Up to 4 Profiles)
Advanced Video Analytics
ONVIF Profile S and G Compliance

Why Choose Matrix SATATYA CIBR20FL28CWS?

Excellent low-light performance with SONY STARVIS sensor.
Full HD 1080p video quality.
Reduced storage and bandwidth consumption through H.265 compression.
Supports edge recording with SD card storage up to 512GB.
50m IR night vision for 24×7 monitoring.
IP66 weatherproof housing suitable for outdoor environments.
IK10 vandal-proof protection for harsh conditions.
Advanced video analytics and event-triggered notifications.
Easy integration with NVRs and VMS through ONVIF support.
Power over Ethernet (PoE) simplifies installation.

Technical Specifications

Camera Type	2MP IR Bullet IP Camera
Resolution	1920 × 1080 (Full HD)
Image Sensor	1/2.8" SONY CMOS STARVIS Sensor
Lens	2.8mm Fixed Lens
Field of View	HFOV 113°, VFOV 61°, DFOV 132°
Minimum Illumination	0.01 Lux (Color), 0 Lux (IR On)
IR Distance	50 Meters
IR Wavelength	850nm
Compression	H.265, H.264, MJPEG
Frame Rate	1–30 FPS
Bit Rate	128 Kbps – 8 Mbps
Streaming Profiles	Up to 4 Streams
WDR	True WDR (120dB)
SNR	71dB
Noise Reduction	2D & 3D DNR
Storage	SD Card Support up to 512GB, NAS
Video Analytics	Motion Detection, Tamper Detection, Trip Detection, Intrusion Detection
Recording	Edge Recording, Motion Recording, Alarm Recording
Protocols Supported	TCP/IP, HTTP, RTSP, RTP, HTTPS, FTP, SMTP, DHCP, DNS, DDNS
ONVIF	Profile S & G
Power Supply	12V DC / PoE (IEEE 802.3af)
Power Consumption	< 7W
Operating Temperature	-20°C to 50°C
Humidity	Less than 90% RH
Ethernet Interface	10/100 Mbps RJ45
Dimensions	301.6 × 84 × 92.5 mm
Weight	880g
Protection Rating	IP66, IK10
Certifications	BIS, CE, FCC, UL, ONVIF S & G

Applications

Office Buildings
Warehouses and Factories
Retail Stores
Banks and Financial Institutions
Educational Institutions
Hospitals and Healthcare Facilities
Parking Areas
Residential Complexes
Commercial Buildings
Industrial Security Monitoring

Package Contents

1 × Matrix SATATYA CIBR20FL28CWS IP Camera
User Manual
Mounting Accessories
Installation Hardware Kit

Ideal For

24×7 indoor and outdoor surveillance requiring Full HD video quality, intelligent analytics, long-range night vision, and reliable storage capabilities.
