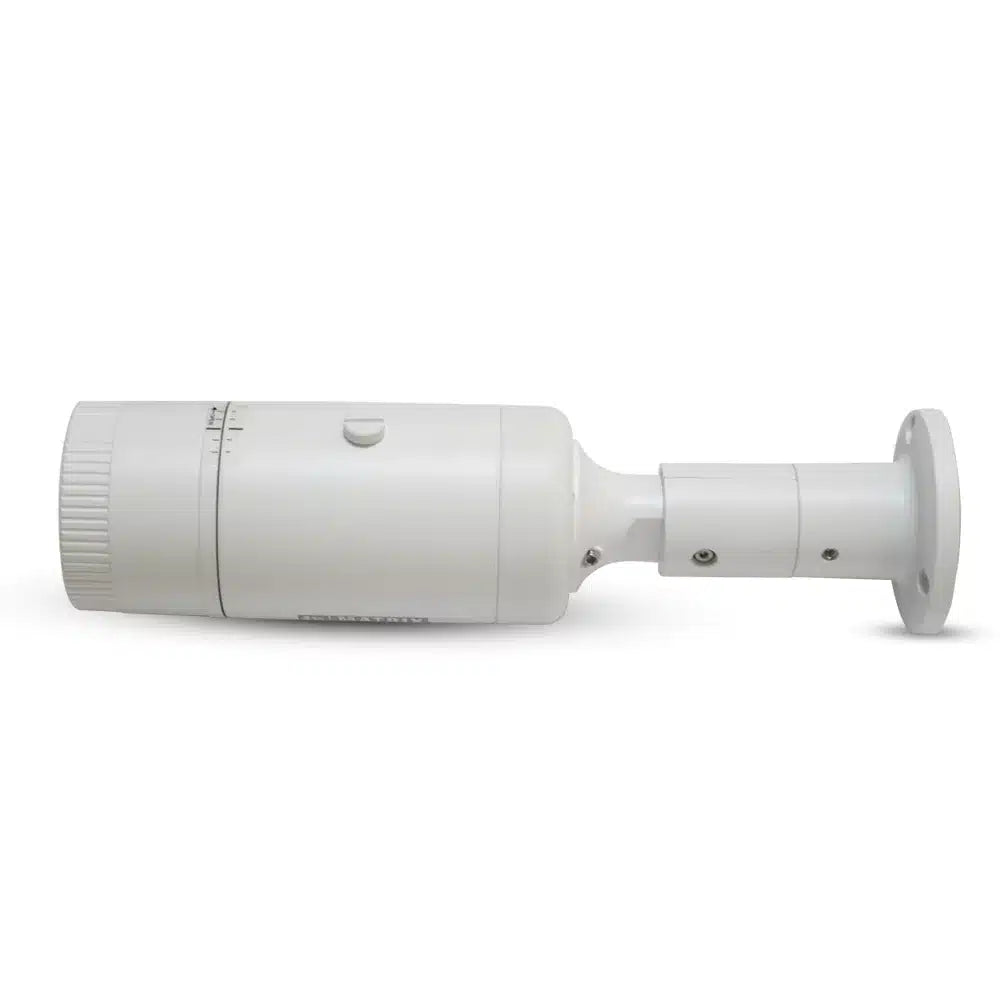

SATATYA CIBR50FL28CWS Matrix Camera

Rs. 0.00

Sale Sold out

Matrix SATATYA CIBR50FL28CWS 5MP IR Bullet Fixed Lens IP Camera

The Matrix SATATYA CIBR50FL28CWS is a high-performance 5MP Bullet IP Camera designed for professional surveillance applications. Powered by a SONY STARVIS sensor and equipped with a 2.8mm fixed lens, the camera delivers exceptional image quality in low-light environments. With H.265 compression, True WDR, adaptive streaming, intelligent video analytics, and support for up to 512GB onboard storage, it provides reliable and efficient monitoring for indoor and outdoor security deployments.

⬇ Download Datasheet PDF

Key Features

5MP Resolution (2592 × 1944)
SONY STARVIS Back-Illuminated Sensor
2.8mm Fixed Lens
50m IR Night Vision
H.265 Video Compression
True WDR (120dB)
High Signal-to-Noise Ratio (73dB)
Adaptive Streaming Technology
Edge Recording Support
On-board Storage up to 512GB
Advanced Video Analytics
PoE (IEEE 802.3af) Support
IP66 Weatherproof Protection
IK10 Impact Resistance

Why Choose Matrix SATATYA CIBR50FL28CWS?

Outstanding low-light performance with SONY STARVIS technology.
Ultra-clear 5MP resolution for detailed video monitoring.
Efficient bandwidth and storage utilization using H.265 compression.
Smart video analytics for proactive security monitoring.
Supports edge recording with up to 512GB SD card storage.
Rugged IP66 and IK10-rated design for outdoor applications.
Ideal for commercial, industrial, and enterprise security systems.

Applications

Office Buildings
Warehouses
Retail Stores
Banks and Financial Institutions
Factories
Educational Institutions
Hospitals
Hotels
Parking Areas
Commercial Complexes

Technical Specifications

Specification	Details
Resolution	5MP (2592 × 1944)
Image Sensor	1/2.8" SONY STARVIS CMOS Progressive Scan Sensor
Lens Type	Fixed Lens
Focal Length	2.8mm
Focus	Fixed Focus
Aperture	F1.8
Field of View	HFOV: 104°, VFOV: 75°, DFOV: 129°
Minimum Illumination	0.01 Lux (Color), 0 Lux (IR On)
IR Distance	50m
Video Compression	H.265, H.264, MJPEG
Frame Rate	1-30fps
Bitrate	128kbps - 16Mbps
Wide Dynamic Range	True WDR (120dB)
SNR	73dB
Noise Reduction	2D and 3D DNR
Storage	Micro SD Card up to 512GB, NAS
Video Analytics	Motion Detection, Tamper Detection, Trip Detection, Intrusion Detection, IP Conflict, Network Disconnect, Storage Full and Time Triggered Events
Network Protocols	TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, TLS/SSL, FTP, ICMP, IGMP v2/v3
ONVIF Profiles	S and G
Power Supply	12V DC / PoE (IEEE 802.3af)
Power Consumption	<7W
Operating Temperature	-20°C to 50°C
Humidity	Less than 90% RH (Non-Condensing)
Dimensions	301.6 × 84 × 92.5 mm
Weight	880g
Communication Interface	10Base-T / 100BaseTX Ethernet (RJ-45)
Storage Options	NAS, SD Card
Protection	IP66 Weatherproof, IK10 Impact Resistant
Certifications	CE, FCC, RoHS, BIS, IP66, IK10, UL
