Matrix

SATATYA CIBR50FL40CWP Matrix Camera

📞 Call 9315441078 for Best Price

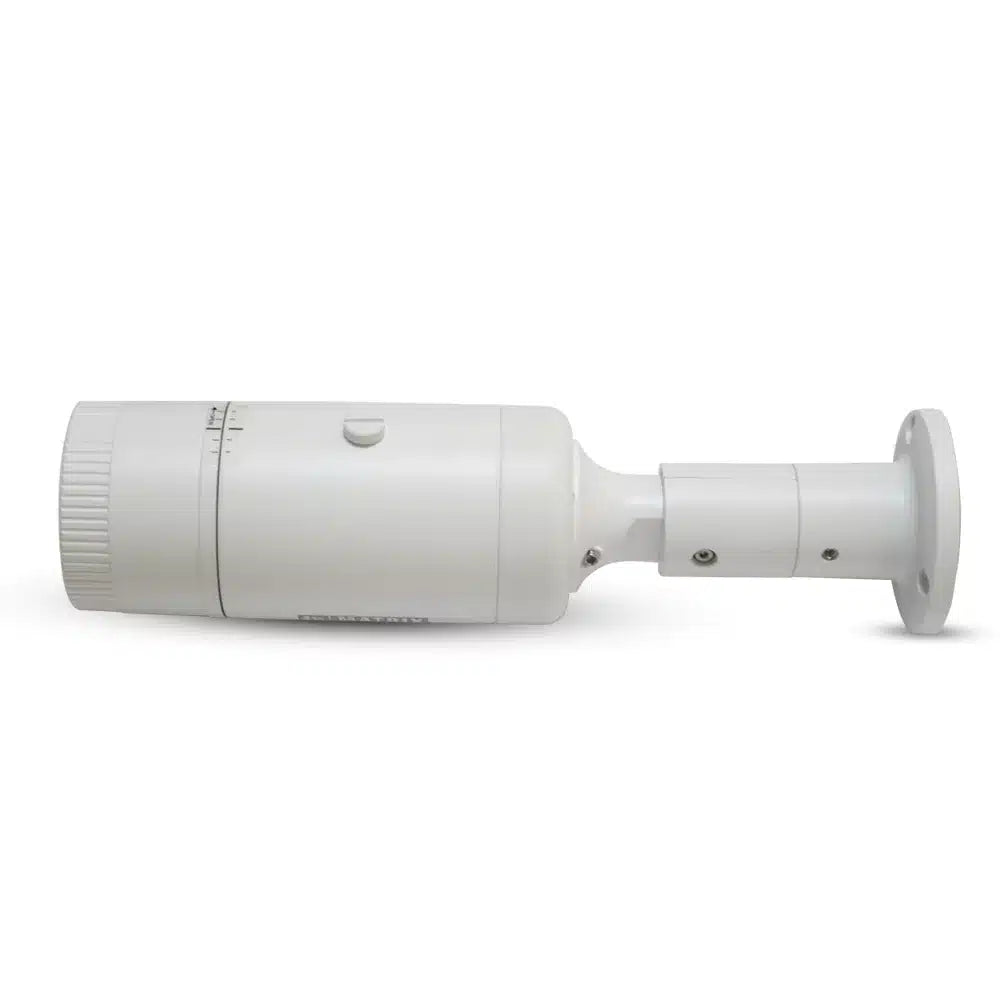

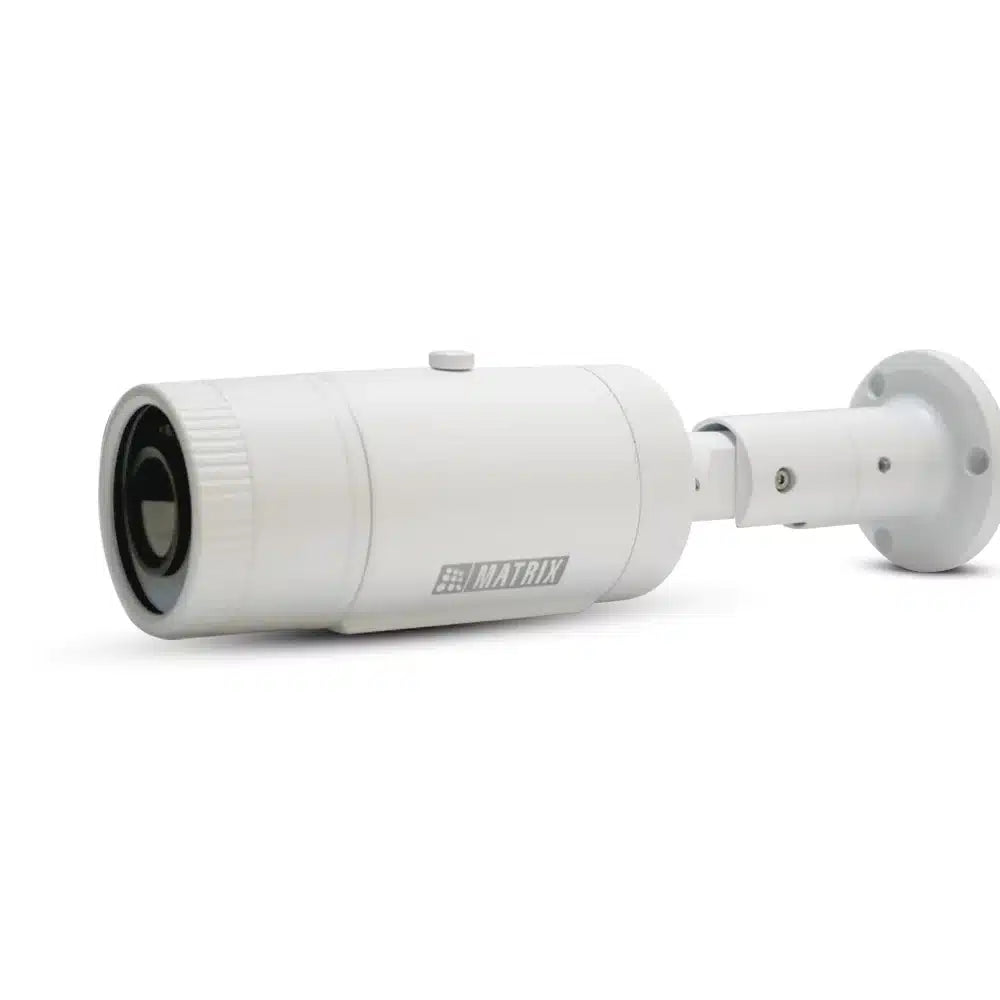

Matrix SATATYA CIBR50FL40CWP 5MP IR Bullet Fixed Lens IP Camera with Audio

The Matrix SATATYA CIBR50FL40CWP is a professional-grade 5MP Bullet IP Camera designed for enterprise and commercial surveillance applications. Powered by a SONY STARVIS sensor and equipped with a 4mm fixed lens, it delivers exceptional image quality even in challenging lighting conditions. Featuring H.265 compression, True WDR, two-way audio, intelligent video analytics, and support for up to 512GB onboard storage, this camera provides reliable and efficient security monitoring for indoor and outdoor environments.

⬇ Download Datasheet PDF

Key Features

5MP Resolution (2592 × 1944)
SONY STARVIS Back-Illuminated Sensor
4mm Fixed Lens
50m IR Night Vision
H.265 Video Compression
True WDR (120dB)
High Signal-to-Noise Ratio (73dB)
Adaptive Streaming Technology
Edge Recording Support
On-board Storage up to 512GB
Two-Way Audio Support
Advanced Video Analytics
PoE (IEEE 802.3af) Support
IP66 Weatherproof Protection
IK10 Impact Resistance

Why Choose Matrix SATATYA CIBR50FL40CWP?

Superior low-light performance with SONY STARVIS technology.
Crystal-clear 5MP video quality for detailed surveillance.
Built-in two-way audio enables remote communication.
Reduced bandwidth and storage requirements with H.265 compression.
Smart video analytics enhance security and event detection.
Supports local storage up to 512GB for edge recording.
Robust IP66 and IK10-rated housing for outdoor installations.

Applications

Office Buildings
Banks and Financial Institutions
Retail Stores
Warehouses
Factories
Educational Institutions
Hospitals
Hotels
Parking Areas
Commercial Complexes

Technical Specifications

Specification	Details
Resolution	5MP (2592 × 1944)
Image Sensor	1/2.8" SONY STARVIS CMOS Progressive Scan Sensor
Lens Type	Fixed Lens
Focal Length	4mm
Focus	Fixed Focus
Aperture	F1.6
Field of View	HFOV: 80°, VFOV: 58°, DFOV: 108°
Minimum Illumination	0.01 Lux (Color), 0 Lux (IR On)
IR Distance	50m
Video Compression	H.265, H.264, MJPEG
Frame Rate	1-30fps
Bitrate	128kbps - 16Mbps
Wide Dynamic Range	True WDR (120dB)
SNR	73dB
Noise Reduction	2D and 3D DNR
Audio	1 Audio In, 1 Audio Out, Two-Way Audio
Audio Compression	G.711, G.726
Alarm Interface	Alarm In / Alarm Out
Storage	Micro SD Card up to 512GB, NAS
Video Analytics	Motion Detection, Tamper Detection, Trip Detection, Intrusion Detection, Audio Exception, IP Conflict, Network Disconnect, Storage Full and Time Triggered Events
Network Protocols	TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, TLS/SSL, FTP, ICMP, IGMP v2/v3
ONVIF Profiles	S and G
Power Supply	12V DC / PoE (IEEE 802.3af)
Power Consumption	<7W
Operating Temperature	-20°C to 50°C
Humidity	Less than 90% RH (Non-Condensing)
Dimensions	301.6 × 84 × 92.5 mm
Weight	880g
Communication Interface	10Base-T / 100BaseTX Ethernet (RJ-45)
Storage Options	NAS, SD Card
Protection	IP66 Weatherproof, IK10 Impact Resistant
Certifications	CE, FCC, RoHS, BIS, IP66, IK10, UL
