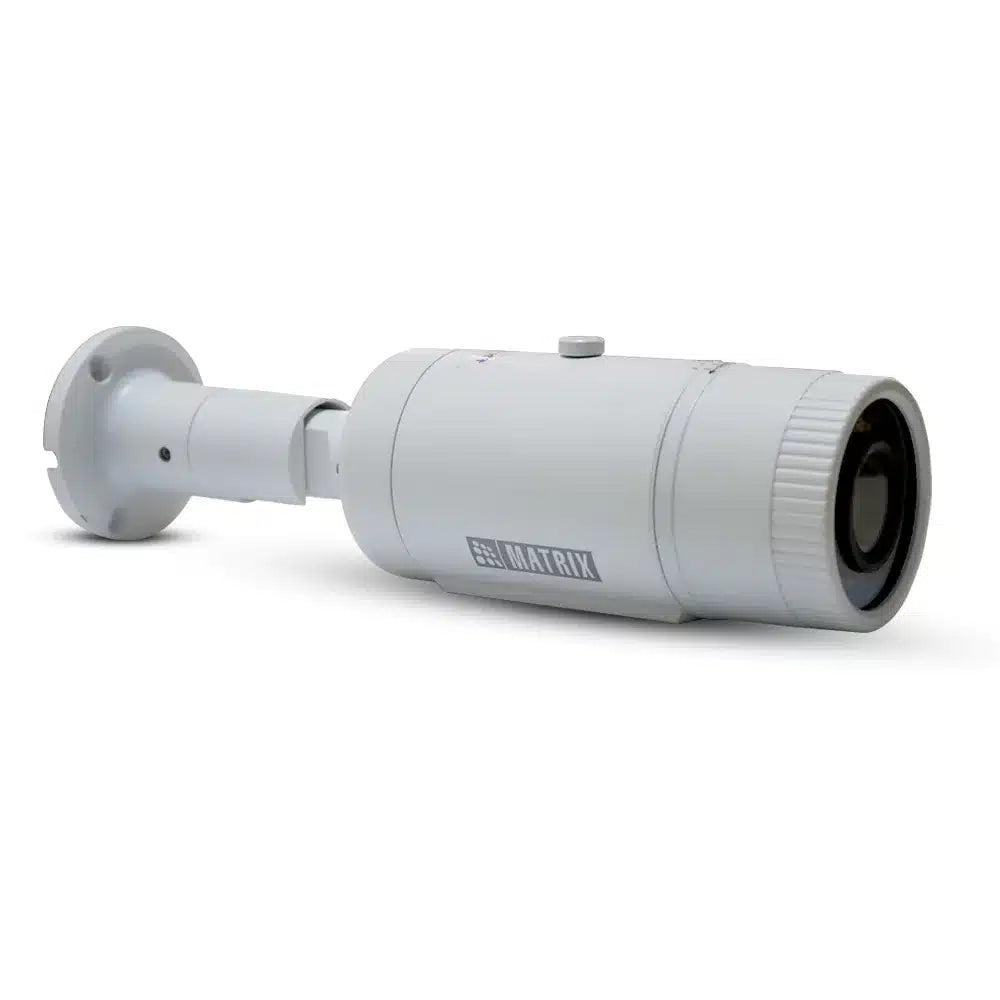

SATATYA CIBR50MVL12CWP Matrix IP Camera

Features of SATATYA CIBR50MVL12CWP Best outdoor IP Camera 2021

• SONY STARVIS Sensor
• H.265 Compression
• True WDR (120dB)
• Smart Streaming and Adaptive Streaming
• On-board storage (512GB)
• High Signal-to-Noise Ratio (>70dB)

Matrix SATATYA CIBR50MVL12CWP Camera [caption id="attachment_21322" align="aligncenter" width="817"] SATATYA CIBR50MVL12CWP[/caption]   CIBR50MVL12CWP-5mp-ir-bullet-motorized-varifocal-2dot7-13dot5mm-lens-with-audio [su_button url="https://ampletrails.com/wp-content/uploads/2020/10/CIBR50MVL12CWP-5mp-ir-bullet-motorized-varifocal-2dot7-13dot5mm-lens-with-audio.pdf" target="blank" style="soft" center="yes" icon="icon: envelope-o" text_shadow="0px 0px 0px #000000" desc="Datasheet of Matrix CCTV IP Camera"] SATATYA CIBR50MVL12CWP Matrix IP Camera[/su_button]

More about SATATYA CIBR50MVL12CWP

5MP IR Bullet Camera with 2.7-13.5mm Lens Previously, most surveillance cameras were bulky, sturdily built devices that often looked out of place in a professional business landscape. These days, however, things have changed. It is now totally possible to have both, a functional security product and one that is aesthetically pleasing at the same time. Matrix Professional Series Bullet IP Cameras are designed specifically to blend in with the minimalistic business aesthetics of modern enterprises. Our robust and discreet range of Professional Series Bullet IP Cameras can harmonize seamlessly with your business design, making it an unobtrusive form of surveillance. With Sony STARVIS series sensors, and resolutions as high as 5MP, these cameras give exceptional quality images in the most challenging environments. Apart from the latest compression technique of H.265 that reduces storage space, these cameras have built-in video analytics like Motion Detection, Intrusion Detection, and TripWire to ensure real-time security. These Cameras are best suited for SOHO and Medium-scale Enterprises and have variants in different focal lengths in 5MP, 3MP, and 2MP resolutions. [su_table]

TECHNICAL SPECIFICATIONS of SATATYA CIBR50MVL12CWP
IMAGE SENSOR
Resolution	5 MP (2592 x 1944)
Sensor Type and Size	1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology - STARVIS Series)
LENS
Minimum Illumination	Colour - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux
Focal Length	2.7mm-13.5mm
Focus Range	0.3m to infinity
Field of View (FOV)	HFOV: 106° - 32° DFOV: 142° - 39° VFOV: 73° - 23°
Lens Mount	M14
Focus	Automatic focus
Aperture (F#)	F 1.4 – F 3.2
Iris Type	P Iris
IR Range	50m
IR Led Wavelength	850nm
IR Switching	Auto/ Manual
AUDIO INTERFACE
Audio IN	1
Audio OUT	1
Two-way Audio	Supported
Audio Compression	G.726 and G.711
Alarm In	Yes
Alarm Out	Yes
HARDWARE SPECIFICATIONS
SD Card	Up to 512GB
Camera Adjustment Angle	Pan: 0° to 180° Tilt: 0° to 180° Zoom: 0° to 360°
IMAGE AND VIDEO
No of Stream Profiles	3
Stream Profiles	Profile 1: 2592X1944 @30fps (H.264/H.265) Profile 2: VGA @30fps (H.265/H.264) Profile 3: 2048x1536 @8fps (MJPEG)
Available Resolutions	2592x1944, 2592x1520, 2048x1536, 1920x1080, 720p, D1, 2CIF, VGA, CIF, QCIF

Max Resolution	2592 x 1944
Bitrate	128kbps-16Mbps
Bitrate Type	CBR, VBR
Video Compression	H.265, H.264, MJPEG
Frame Rate	1-30fps
Shutter Speed	1/25-1/59000 s
Adaptive Streaming	Yes
ONVIF Profiles	S and G
Edge Recording	Yes
Alarm Recording	Pre and Post
Motion Recording	Yes
Video Parameters	Snapshot, Region of Interest (ROI), BLC, Day/Night Settings
Privacy Masks	3
WDR	True WDR (120dB)
SNR	73db
Image Enhancement	Saturation/Contrast/Sharpness/Brightness/Auto Exposure
DNR	2D &3D
Video Analytics	Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Loitering, Missing/ Abandoned Object, Audio Exception, IP Conflict, Network Disconnect, Storage Full, Time-Triggered, Alarm In, Object Counting
EVENTS AND ACTIONS
Upload Image	SD, NAS, FTP
Upload Clip	SD, NAS, FTP
Notifications	E-mail, SMS, TCP
PROTOCOLS SUPPORTED
Supported protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, TLS/SSL, FTP, ICMP, IGMP v2 & v3
Web Viewer	Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
Plugins	IE: Matrix ActiveX Chrome: VLC plugin (2.0.4) and Quicktime(7.7.5) Mozilla: VLC plugin (2.0.4) and Quicktime(7.7.5)
OPERATING PARAMETERS
Power Supply	12V (DC); 802.3af (PoE)
Power Consumption	<8W
Operating Humidity	Less than 90% RH (non-condensing)
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 50°C

PHYSICAL PARAMETERS
Communication interface	10Base-T/100BaseTX Ethernet (RJ-45)
Weight	880 gm
Colour	Pantone 7527C
Dimensions	301.6 x 84 x 92.5 (Length x Height x Width)
Storage	NAS, SD Card
Certifications	CE, FCC, ROHS, BIS, IP66, UL
