SATATYA CIDR20FL28CWS Matrix Camera

SATATYA CIDR20FL28CWS Matrix Camera

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out

Features of SATATYA CIDR20FL28CWS

  • SONY STARVIS Sensor
  • H.265 Compression
  • True WDR (120dB)
  • Smart Streaming and Adaptive Streaming
  • On-board storage (512GB)
  • High Signal-to-Noise Ratio (>70dB)
Matrix SATATYA CIDR20FL28CWS Camera [caption id="attachment_21581" align="alignnone" width="817"]Matrix Project Series Dome Large Matrix Project Series SATATYA CIDR20FL28CWS[/caption] CIDR20FL28CWS-2mp-ir-dome-fixed-2dot8mm-lens [su_button url="https://ampletrails.com/wp-content/uploads/2020/10/CIDR20FL28CWS-2mp-ir-dome-fixed-2dot8mm-lens.pdf" target="blank" style="soft" center="yes" icon="icon: envelope-o" text_shadow="0px 0px 0px #000000" desc="Datasheet of 2MP IR Dome Fixed 2.8 mm Lens"] SATATYA CIDR20FL28CWS Matrix IP Camera[/su_button]

More about SATATYA CIDR20FL28CWS

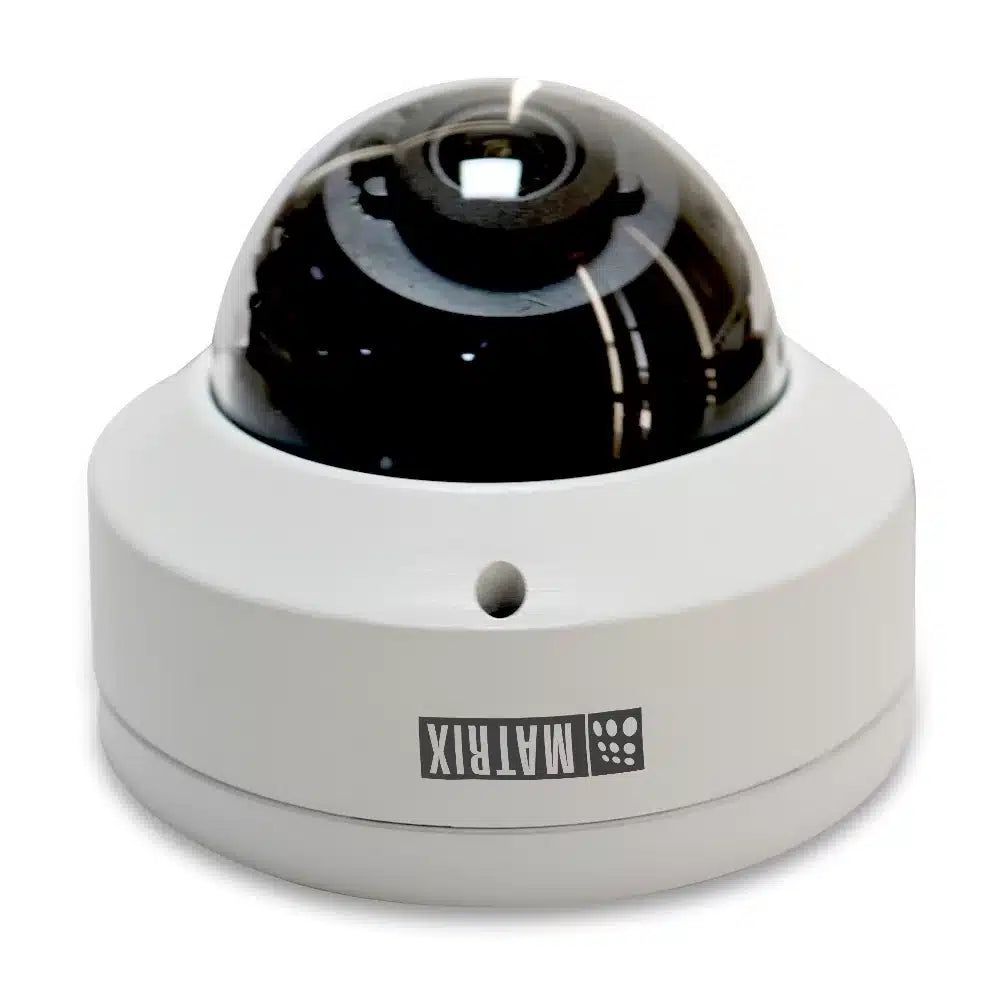

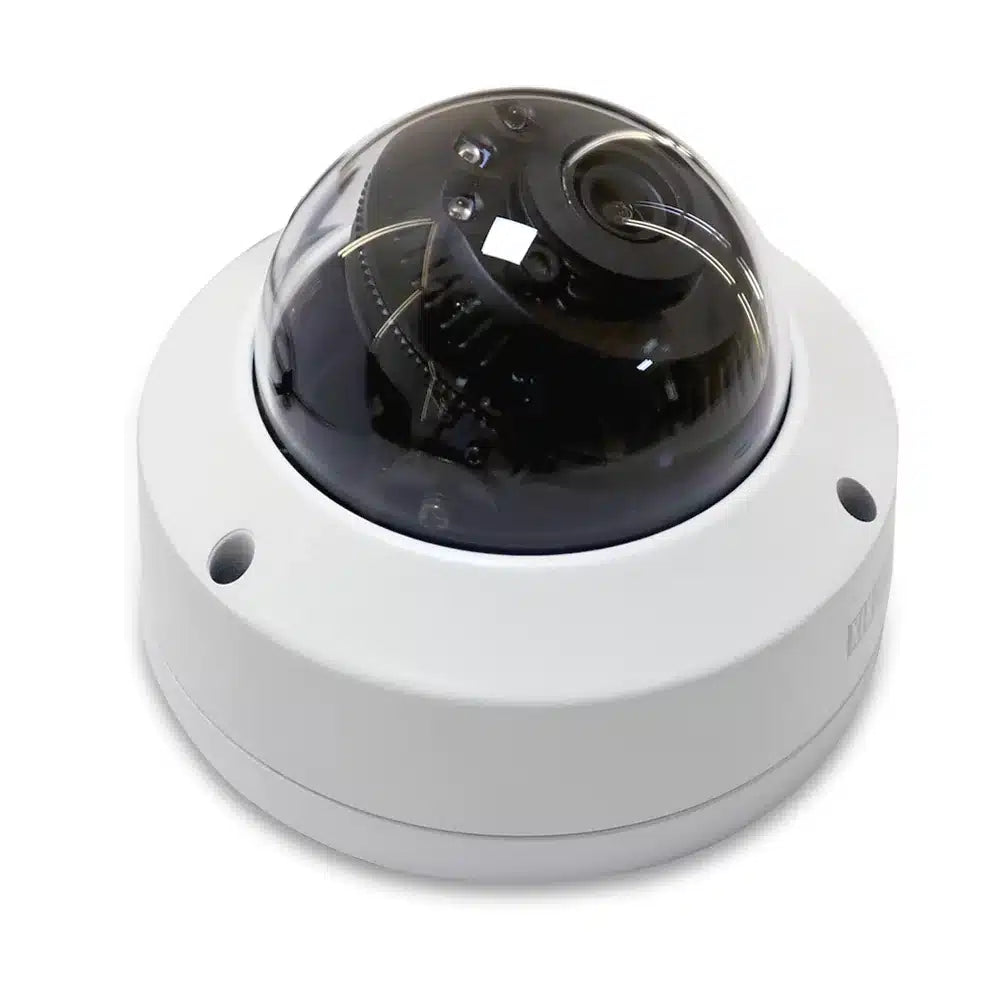

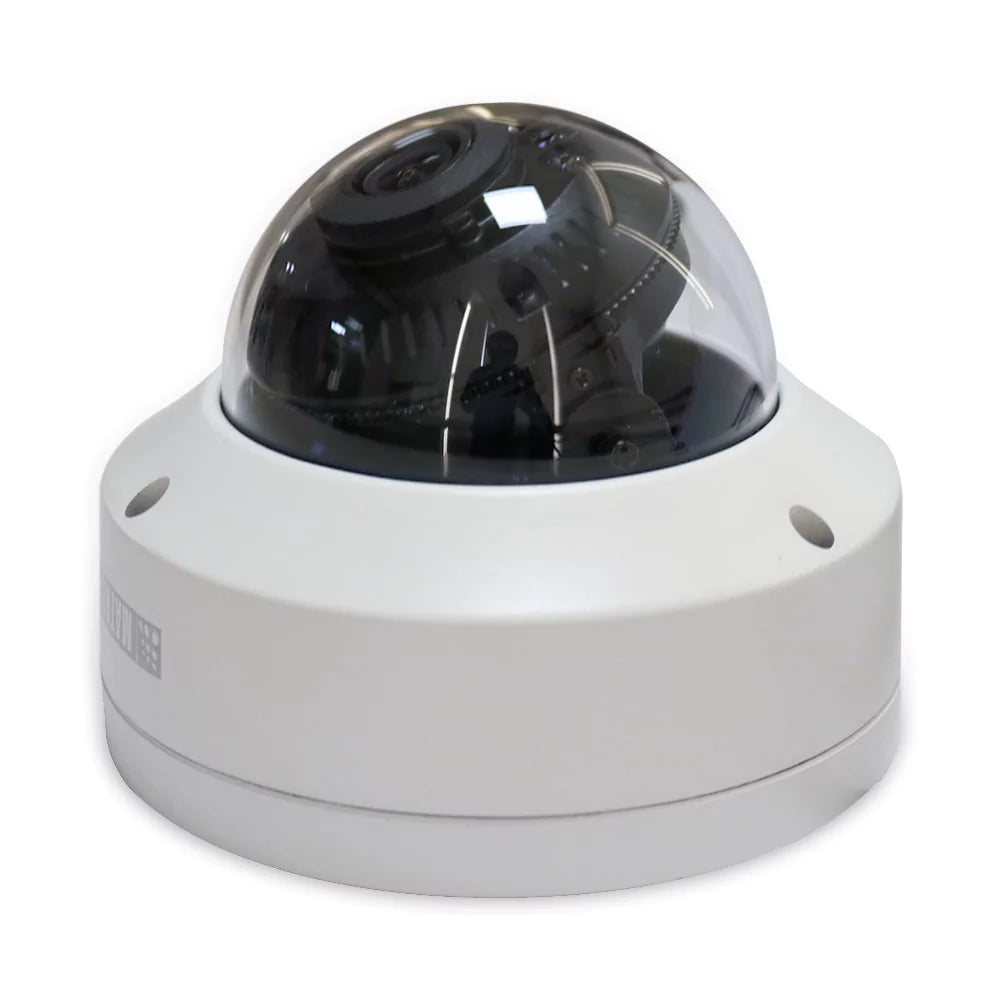

2MP IR Dome Camera with 2.8 mm Lens Matrix offers best-in-class Project Series Dome IP cameras with exceptional low light performance specifically designed and built for demanding enterprise and project applications. Matrix cameras reduce the installation cost for multilocation by Camera Initiation feature that eliminates the need for a static IP. In addition, these feature-packed cameras offer Multiple Streams, Video Analytics, and Edge Recording. Moreover, H.265 compression and automatic motion-based frame rate reduction save bandwidth and storage up to 50%. All Matrix Dome cameras are vandal proof with IK10 certification. Project series Dome camera has variants with different focal lengths in 5MP, 3MP, and 2MP resolution. Fixed Lens: Variants include focal lengths 2.8mm, 3.6mm, 4mm and 6mm Varifocal/ Motorized Varifocal Lens: Focal length range is 2.8mm to 12mm and 2.7mm-13.5mm. [su_table]
TECHNICAL SPECIFICATIONS of SATATYA CIDR20FL28CWS
IMAGE SENSOR
Resolution 2 MP (1920 x 1080)
    Sensor Type and Size 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology - STARVIS Series)
LENS
  Minimum Illumination Colour - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux
Focal Length 2.8mm
Focus Range 0.3m to infinity
    Field of View (FOV) HFOV - 113° VFOV - 61° DFOV - 132°
Lens Mount M12
Focus Fixed focus
Aperture (F#) F 1.2
Iris Type Fixed
IR Range 50m
IR Led Wavelength 850nm
IR Switching Auto/ Manual
HARDWARE SPECIFICATIONS
SD Card Up to 512GB
Camera Adjustment Angle Pan: 0° to 360° Tilt: 0° to 75° Rotation: 0° to 360°
IMAGE AND VIDEO
No of Stream Profiles 4
      Stream Profiles 1: 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 30fps (H.265/H.264) 2: D1/2CIF/CIF/QCIF up to 30fps (H.265/H.264) 3: 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 5fps (MJPEG) 4: 720p/D1/2CIF/CIF/QCIF up to 30fps (H.265/H.264/MJPEG)
Available Resolutions 1920 x 1080, 720p, D1, 2CIF, CIF, QCIF
Max Resolution 1920 x 1080
Bitrate 128 kbps-8Mbps
Bitrate Type CBR, VBR
Video Compression H.265, H.264, MJPEG
Frame Rate 1-30fps
Shutter Speed 1/25-1/34000
Adaptive Streaming Yes
ONVIF Profiles S and G
Edge Recording Yes
Alarm Recording Pre and Post
Motion Recording Yes
Video Parameters Snapshot, Region of Interest (ROI), BLC, Day/Night Settings
Privacy Masks 3
WDR True WDR (120dB)
SNR 71db
Image Enhancement Saturation/Contrast/Sharpness/Brightness/Auto Exposure
DNR 2D &3D
    Video Analytics Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, IP Conflict, Network Disconnect, Storage Full, Time-Triggered
EVENTS AND ACTIONS
Upload Image SD, NAS, FTP
Upload Clip SD, NAS, FTP
Notifications E-mail, SMS, TCP
PROTOCOLS SUPPORTED
  Supported protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, TLS/SSL, FTP, ICMP, IGMP v2 & v3
Web Viewer Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
    Plugins IE: Matrix ActiveX Chrome: VLC plugin (2.0.4) and Quicktime (7.7.5) Mozilla: VLC plugin (2.0.4) and Quicktime (7.7.5)
OPERATING PARAMETERS
Power Supply 12V (DC); 802.3af (PoE)
Power Consumption <7W
Operating Humidity Less than 90% RH (non-condensing)
Operating Temperature -20°C to 50°C
Storage Temperature -20°C to 50°C
PHYSICAL PARAMETERS
Communication interface 10Base-T/100BaseTX Ethernet (RJ-45)
Weight 1410gm
Colour Pantone 7527C
Dimensions Φ158 x 134 mm
Storage NAS, SD Card
Certifications CE, FCC, ROHS, BIS, IP66, IK10, UL
  [/su_table] DOWNLOADS - TECHNICAL SPECIFICATIONS If you want to get more details please fill the form below. Our experts will contact you to give face attendance and various other solutions as per your requirements. Call us at 9315441078 or email us at info@ampletrails.com [wpforms id="25849"]
