Matrix

SATATYA CIDR30FL28CWP Matrix Camera

Rs. 0.00

Sale Sold out

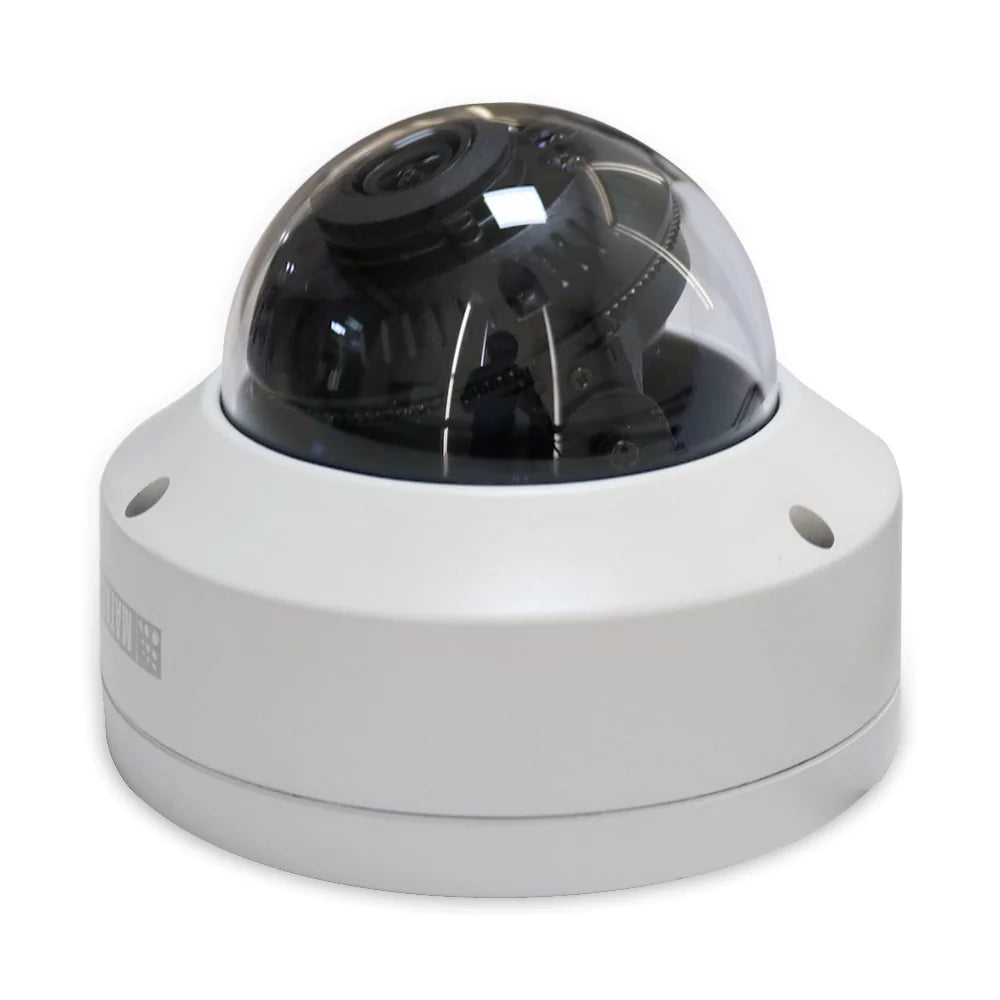

Matrix SATATYA CIDR30FL28CWP 3MP IR Dome Fixed Lens IP Camera with Audio

The Matrix SATATYA CIDR30FL28CWP is a professional-grade 3MP Dome IP Camera designed for demanding enterprise and project surveillance applications. Powered by a SONY STARVIS back-illuminated sensor and a 2.8mm fixed lens, the camera delivers superior image quality and exceptional low-light performance. Equipped with H.265 compression, True WDR, intelligent video analytics, two-way audio support, and onboard storage up to 512GB, this camera provides reliable and proactive security for indoor and outdoor installations. Its IP66 weatherproof and IK10 vandal-resistant design ensures dependable operation in harsh environments.

⬇ Download Datasheet PDF

Key Features

3MP Resolution (2048 × 1536)
SONY STARVIS Back-Illuminated Sensor
2.8mm Fixed Lens
50m IR Night Vision
H.265 Video Compression
True WDR (120dB)
High Signal-to-Noise Ratio (73dB)
Smart Streaming and Adaptive Streaming
Edge Recording Support
On-board Storage up to 512GB
Two-Way Audio Support
Advanced Video Analytics
PoE (IEEE 802.3af) Support
IP66 Weatherproof and IK10 Vandal-Proof Protection

Why Choose Matrix SATATYA CIDR30FL28CWP?

Excellent low-light performance with SONY STARVIS technology.
Wide viewing angle provided by the 2.8mm fixed lens.
Built-in two-way audio for enhanced communication and monitoring.
Advanced analytics for intelligent event detection.
H.265 compression minimizes bandwidth and storage requirements.
Supports edge recording with up to 512GB microSD card.
Rugged IP66 and IK10-rated housing for reliable outdoor deployment.
Ideal for enterprise and multi-location surveillance applications.

Applications

Corporate Offices
Banks and Financial Institutions
Retail Stores
Warehouses
Manufacturing Facilities
Educational Institutions
Hospitals
Hotels
Parking Areas
Commercial Buildings

Technical Specifications

Specification	Details
Resolution	3MP (2048 × 1536)
Image Sensor	1/2.8" SONY STARVIS CMOS Progressive Scan Sensor
Lens Type	Fixed Lens
Focal Length	2.8mm
Focus	Fixed Focus
Aperture	F1.2
Field of View	HFOV: 101°, VFOV: 75°, DFOV: 127°
Minimum Illumination	0.01 Lux (Color), 0 Lux (IR On)
IR Distance	50m
Video Compression	H.265, H.264, MJPEG
Frame Rate	1-30fps
Bitrate	128kbps - 8Mbps
Wide Dynamic Range	True WDR (120dB)
SNR	73dB
Noise Reduction	2D and 3D DNR
Audio	1 Audio In, 1 Audio Out, Two-Way Audio
Audio Compression	G.711 and G.726
Alarm Interface	Alarm In / Alarm Out
Storage	Micro SD Card up to 512GB, NAS
Video Analytics	Motion Detection, No Motion Detection, Tamper Detection, Trip Detection, Intrusion Detection, Audio Exception, IP Conflict, Network Disconnect, Storage Full and Time-Triggered Events
Network Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPoE, SMTP, NTP, HTTPS, TLS/SSL, FTP, ICMP and IGMP v2/v3
ONVIF Profiles	S and G
Stream Profiles	4 Streams
Power Supply	12V DC / PoE (IEEE 802.3af)
Power Consumption	<7W
Operating Temperature	-20°C to 50°C
Operating Humidity	Less than 90% RH (Non-condensing)
Dimensions	Φ158 × 134 mm
Weight	1410g
Protection	IP66 Weatherproof, IK10 Vandal Resistant
Certifications	CE, FCC, RoHS, BIS, IP66, IK10, UL
