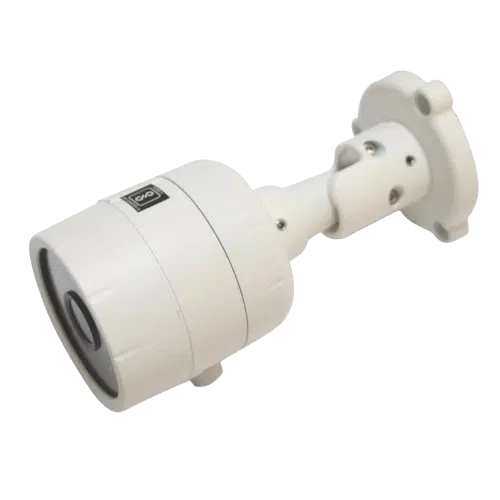

SATATYA MIBR20FL28CWP
SATATYA MIBR20FL28CWP
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Features of SATATYA MIBR20FL28CWP
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
Product Details
Matrix Professional Series IP SATATYA MIBR20FL28CWP Cameras also known as Matrix IP Camera are built using superior components such as Sony STARVIS sensor and higher MTF lens to offer unmatched image quality, especially during the low light conditions. Powered by the True WDR algorithm, these cameras offer consistent image quality even in highly varying lighting conditions. Built-in intelligent analytics including Intrusion Detection, Trip Wire, etc. ensure real-time security. Moreover, H.265 compression and Automatic Motion based Frame Rate Reduction save bandwidth and storage up to 50% [caption id="attachment_21341" align="aligncenter" width="750"] SATATYA Matrix Bullet IP Camera[/caption] MIBR20FL28CWP-2mp-ir-bullet-fixed-2dot8mm-lens-with-audio [su_button url="https://ampletrails.com/wp-content/uploads/2020/10/MIBR20FL28CWP-2mp-ir-bullet-fixed-2dot8mm-lens-with-audio.pdf" target="blank" style="soft" center="yes" icon="icon: envelope-o" text_shadow="0px 0px 0px #000000" desc="Datasheet of 2MP IR Dome Fixed 2.8mm Lens With audio"] SATATYA Matrix IP Camera[/su_button] 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology - STARVIS Series) You can continue reading more about SATATYA MIBR20FL28CWP Matrix CCTV here [su_table]Details about SATATYA MIBR20FL28CWP Matrix CCTV
TECHNICAL SPECIFICATIONS of SATATYA MIBR20FL28CWP | |
IMAGE SENSOR | |
Resolution | 2 MP (1920 x 1080) |
Sensor Type and Size | 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology - STARVIS Series) |
LENS | |
Minimum Illumination | Colour - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux |
Focal Length | 2.8mm |
Focus Range | 0.3m to infinity |
Field of View (FOV) | HFOV - 113° VFOV - 61° DFOV - 132° |
Lens Mount | M12 |
Focus | Fixed focus |
Aperture (F#) | F 1.2 |
Iris Type | Fixed |
IR Range | 30m |
IR Led Wavelength | 850nm |
IR Switching | Auto/ Manual |
AUDIO INTERFACE | |
Audio IN | 1 |
Audio OUT | 1 |
Two-way Audio | Supported |
Audio Compression | G.726 and G.711 |
HARDWARE SPECIFICATIONS | |
SD Card | Up to 512GB |
Camera Adjustment Angle | Pan: 0° to 180° Tilt: 0° to 180° Rotation: 0° to 360° |
IMAGE AND VIDEO | |
No of Stream Profiles | 4 |
Stream Profiles | 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 30fps (H.265/ H.264) D1/2CIF/CIF/QCIF up to 30fps(H.265/H.264) 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 5 fps(MJPEG) 720p/D1/2CIF/CIF/QCIF up to 30 fps(H.265/H.264/MJPEG) |
Available Resolutions | 1920 x 1080, 720p,D1,2CIF,CIF,QCIF |
Max Resolution | 1920 x 1080 |
Bitrate | 128 kbps-8Mbps |
Bitrate Type | CBR, VBR |
Video Compression | H.265, H.264, MJPEG |
Frame Rate | 1-30fps |
Shutter Speed | 1/25-1/34000 |
Adaptive Streaming | Yes |
ONVIF Profiles | Both S and G |
Edge Recording | Yes |
Alarm Recording | Pre and Post |
Motion Recording | Yes |
Video Parameters | Snapshot, Region of Interest (ROI), BLC, Day/Night Settings |
Privacy Masks | 3 |
WDR | True WDR (120dB) |
SNR | 71db |
Image Enhancement | Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure |
DNR | 2D &3D |
Video Analytics | Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, IP Conflict, Network Disconnect, Audio Exception, Storage Full, Time-Triggered |
EVENTS AND ACTIONS | |
Upload Image | SD, NAS, FTP |
Upload Clip | SD, NAS, FTP |
Notifications | E-mail, SMS, TCP |
PROTOCOLS SUPPORTED | |
Supported protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, , TLS/SSL, FTP, ICMP, IGMP v2 & v3 |
Web Viewer | Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0 |
Plugins | IE: Matrix ActiveX Chrome: VLC plugin(2.0.4) and Quicktime(7.7.5) Mozilla: VLC Plugin(2.0.4) and Quicktime(7.7.5) |
OPERATING PARAMETERS | |
Power Supply | 12V (DC); 802.3af (PoE) |
Power Consumption | <5.5W |
Operating Humidity | Less than 90% RH (non-condensing) |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 50°C |
PHYSICAL PARAMETERS | |
Communication interface | 10Base-T/100BaseTX Ethernet (RJ-45) |
Weight | 500gm |
Colour | Pantone 7527C |
Dimensions | 155 x 75 (Length x Width) |
Storage | NAS, SD Card |
Certifications | BIS, CE, IP66, FCC Part-15 Class-A, ONVIF S & G, IK10 |
