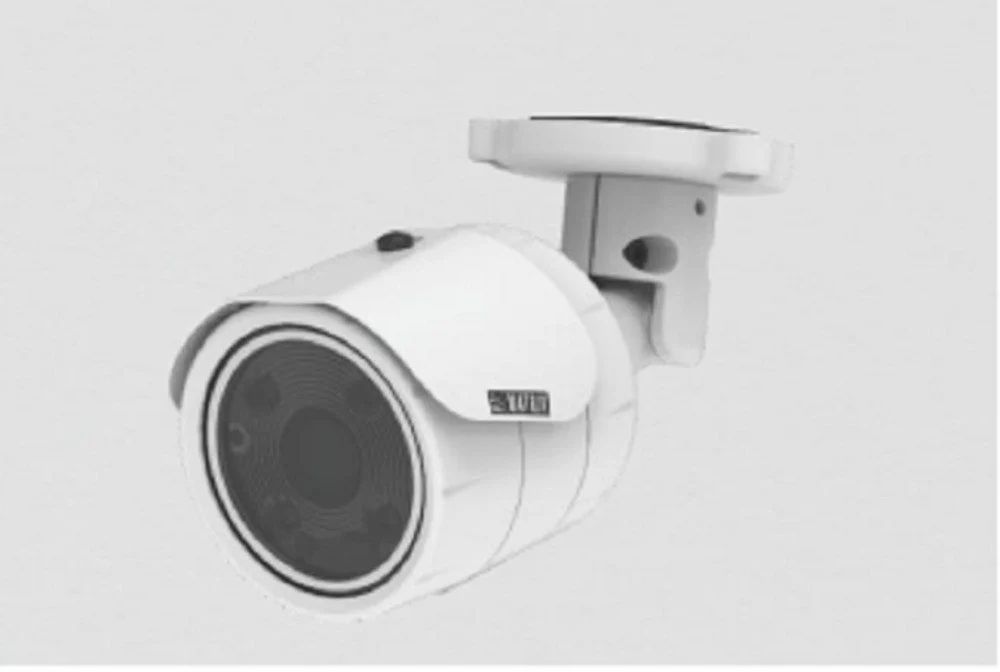

SATATYA MIBR30FL28CWP Matrix CCTV
SATATYA MIBR30FL28CWP Matrix CCTV
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Features of SATATYA MIBR30FL28CWP
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
TECHNICAL SPECIFICATIONS of SATATYA MIBR30FL28CWP | |
IMAGE SENSOR | |
Resolution | 3 MP (2048 x 1536) |
Sensor Type and Size | 1/2.8" SONY - CMOS 3MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology - STARVIS Series) |
LENS | |
Minimum Illumination | Colour - 0.01 Lux @F1.2 (AGC ON) Monochrome - 0 Lux |
Focal Length | 2.8mm |
Focus Range | 0.3m to infinity |
Field of View (FOV) | HFOV - 101° VFOV - 75° DFOV - 127° |
Lens Mount | M12 |
Focus | Fixed focus |
Aperture (F#) | F 1.2 |
Iris Type | Fixed |
IR Range | 30m |
IR Led Wavelength | 850nm |
IR Switching | Auto/ Manual |
AUDIO INTERFACE | |
Audio IN | 1 |
Audio OUT | 1 |
Two-way Audio | Supported |
Audio Compression | G.726 and G.711 |
HARDWARE SPECIFICATIONS | |
SD Card | Up to 512GB |
Camera Adjustment Angle | Pan: 0° to 180° Tilt: 0° to 180° Rotation: 0° to 360° |
IMAGE AND VIDEO | |
No of Stream Profiles | 4 |
Stream Profiles | 2048X1536 @30fps (H.264/H.265) D1 @30fps (H.265/H.264) 2048x1536@5fps (MJPEG) 720p @30fps (H.265/H.264/MJPEG) |
Available Resolutions | 2048 x 1536, 1920 x 1080, 720p, D1, 2CIF, CIF, QCIF |
Max Resolution | 2048 x 1536 |
Bitrate | 128 kbps-8Mbps |
Bitrate Type | CBR, VBR |
Video Compression | H.265, H.264, MJPEG |
Frame Rate | 1-30fps |
Shutter Speed | 1/25-1/17000 |
Adaptive Streaming | Yes |
ONVIF Profiles | Both S and G |
Edge Recording | Yes |
Alarm Recording | Pre and Post |
Motion Recording | Yes |
Video Parameters | Snapshot, Region of Interest (ROI), BLC, Day/Night Settings |
Privacy Masks | 3 |
WDR | True WDR (120dB) |
SNR | 71db |
Image Enhancement | Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure |
DNR | 2D &3D |
Video Analytics | Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception, IP Conflict, Network Disconnect, Storage Full, Time-Triggered |
EVENTS AND ACTIONS | |
Upload Image | SD, NAS, FTP |
Upload Clip | SD, NAS, FTP |
Notifications | E-mail, SMS, TCP |
PROTOCOLS SUPPORTED | |
Supported protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, TLS/SSL, FTP, ICMP, IGMP v2 & v3 |
Web Viewer | Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0 |
Plugins | IE: Matrix ActiveX Chrome: VLC plugin(2.0.4) and Quicktime(7.7.5) Mozilla: VLC Plugin(2.0.4) and Quicktime(7.7.5) |
OPERATING PARAMETERS | |
Power Supply | 12V (DC); 802.3af (PoE) |
Power Consumption | <6W |
Operating Humidity | Less than 90% RH (non-condensing) |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 50°C |
PHYSICAL PARAMETERS | |
Communication interface | 10Base-T/100BaseTX Ethernet (RJ-45) |
Weight | 450gm |
Colour | Pantone 7527C |
Dimensions | 155 x 75 (Length x Width) |
Storage | NAS, SD Card |
Certifications | BIS, CE, IP66, FCC Part-15 Class-A, ONVIF S & G, IK10 |
