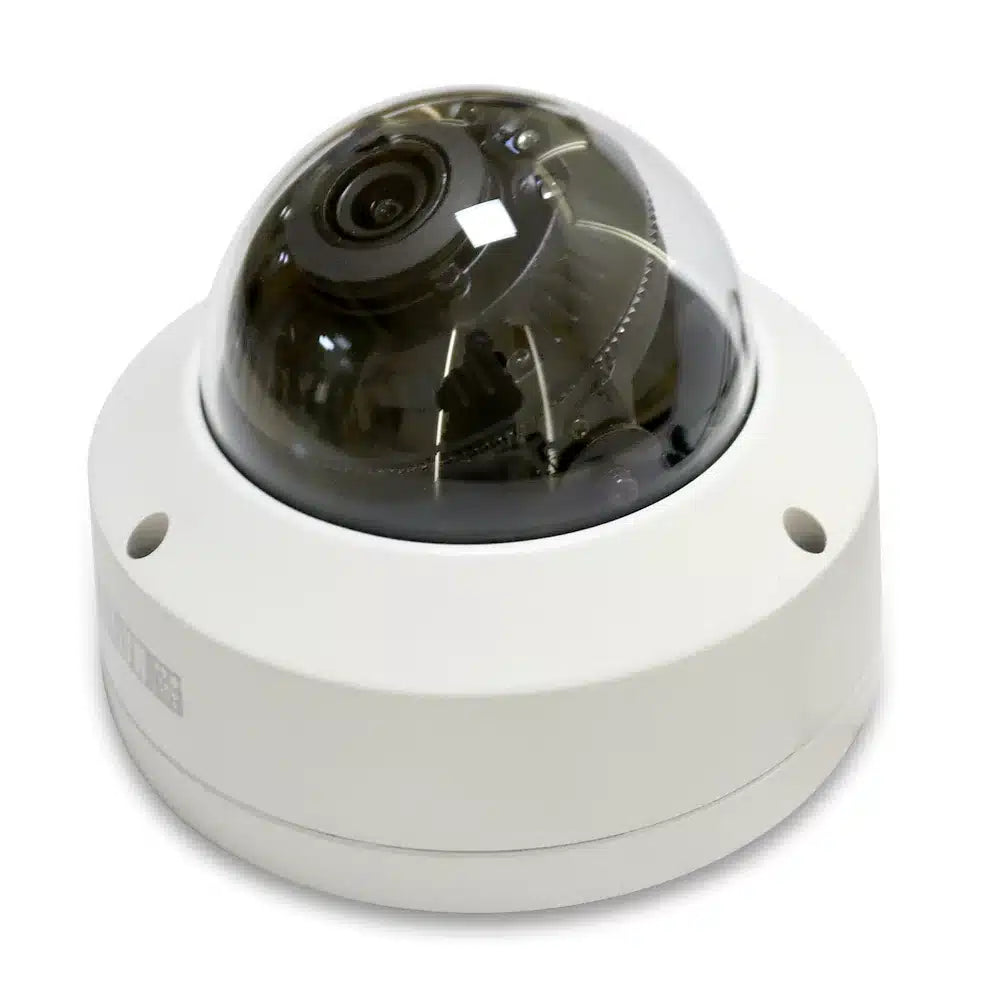

SATATYA MIDR20FL60CWP Matrix Camera

Features of SATATYA MIDR20FL60CWP Matrix IP Camera

• SONY STARVIS Sensor
• H.265 Compression
• True WDR (120dB)
• Smart Streaming and Adaptive Streaming
• On-board storage (512GB)
• High Signal-to-Noise Ratio (>70dB)

1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology - STARVIS Series). Matrix Professional Series Dome IP Cameras are built using superior components such as Sony STARVIS sensor and higher MTF lens to offer unmatched image quality, especially during the low light conditions. Powered by the True WDR algorithm, these cameras offer consistent image quality even in highly varying lighting conditions. Built-in intelligent analytics including Intrusion Detection, Trip Wire, etc. ensure real-time security. Moreover, H.265 compression and Automatic Motion based Frame Rate Reduction save bandwidth and storage up to 50%   SATATYA MIDR20FL60CWP Matrix IP Camera [su_button url="https://ampletrails.com/wp-content/uploads/2020/10/MIDR20FL60CWP_2mp-ir-dome-fixed-6mm-lens-with-audio.pdf" target="blank" style="soft" center="yes" icon="icon: envelope-o" text_shadow="0px 0px 0px #000000" desc="Datasheet of 2MP IR Dome Fixed 6.0mm Lens"] SATATYA Matrix IP Camera[/su_button] [caption id="attachment_21332" align="aligncenter" width="300"] SATATYA MIDR20FL60CWP Matrix 2MP IP Camera NVR[/caption] SATATYA MIDR20FL60CWP 2MP IR Dome Camera with 6mm Lens [su_table]

TECHNICAL SPECIFICATIONS of SATATYA MIDR20FL60CWP
IMAGE SENSOR
Resolution	2 MP (1920 x 1080)
Sensor Type and Size	1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology - STARVIS Series)
LENS
Minimum Illumination	Colour - 0.01 Lux @ F1.2 (AGC ON) Monochrome - 0 Lux
Focal Length	6mm
Focus Range	0.3m to infinity
Field of View (FOV)	HFOV - 56° VFOV - 31° DFOV - 66°
Lens Mount	M12
Focus	Fixed focus
Aperture (F#)	F 1.2
Iris Type	Fixed
IR Range	30m
IR Led Wavelength	850nm
IR Switching	Auto/ Manual
AUDIO INTERFACE
Audio IN	1
Audio OUT	1
Two-way Audio	Supported
Audio Compression	G.726 and G.711
HARDWARE SPECIFICATIONS
SD Card	Up to 512GB
Camera Adjustment Angle	Pan: 0° to 360° Tilt: 0° to 75° Rotation: 0° to 360°
IMAGE AND VIDEO
No of Stream Profiles	4
Stream Profiles	Profile 1: 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 30 fps (H.265/ H.264) Profile 2: D1/2CIF/CIF/QCIF up to 30fps (H.265/H.264) Profile 3: 1080p(2MP)/720p/D1/2CIF/CIF/QCIF up to 5 fps (MJPEG) Profile 4: 720p/D1/2CIF/CIF/QCIF up to 30 fps (H.265/H.264/MJPEG)
Available Resolutions	1920 x 1080, 720p, D1, 2CIF, CIF, QCIF

Max Resolution	1920 x 1080
Bitrate	128 kbps-8Mbps
Bitrate Type	CBR, VBR
Video Compression	H.265, H.264, MJPEG
Frame Rate	1-30fps
Shutter Speed	1/25-1/34000
Adaptive Streaming	Yes
ONVIF Profiles	Both S and G
Edge Recording	Yes
Alarm Recording	Pre and Post
Motion Recording	Yes
Video Parameters	Snapshot, Region of Interest (ROI), BLC, Day/Night Settings
Privacy Masks	3
WDR	True WDR (120dB)
SNR	71db
Image Enhancement	Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure
DNR	2D &3D
Video Analytics	Motion/No Motion Detection, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, IP Conflict, Network Disconnect, Audio Exception, Storage Full, Time-Triggered
EVENTS AND ACTIONS
Upload Image	SD, NAS, FTP
Upload Clip	SD, NAS, FTP
Notifications	E-mail, SMS, TCP
PROTOCOLS SUPPORTED
Supported protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, TLS/SSL, FTP, ICMP, IGMP v2 & v3
Web Viewer	Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
Plugins	IE: Matrix ActiveX Chrome: VLC plugin (2.0.4) and Quicktime (7.7.5) Mozilla: VLC Plugin (2.0.4) and Quicktime (7.7.5)
OPERATING PARAMETERS
Power Supply	12V (DC); 802.3af (PoE)
Power Consumption	<5.5W
Operating Humidity	Less than 90% RH (non-condensing)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 50°C
PHYSICAL PARAMETERS
Communication interface	10Base-T/100BaseTX Ethernet (RJ-45)

Weight	450gm
Colour	Pantone 7527C
Dimensions	110mm x 85mm (Length x Width)
Storage	NAS, SD Card
Certifications	BIS, CE, IP66, FCC Part-15 Class-A, ONVIF S & G, IK10

[/su_table] DOWNLOADS - TECHNICAL SPECIFICATIONS If you want to get more details please fill the form below. Our experts will contact you to give face attendance and various other solutions as per your requirements. Call us at 9315441078 or email us at info @ ampletrails.com [wpforms id="25849"]
