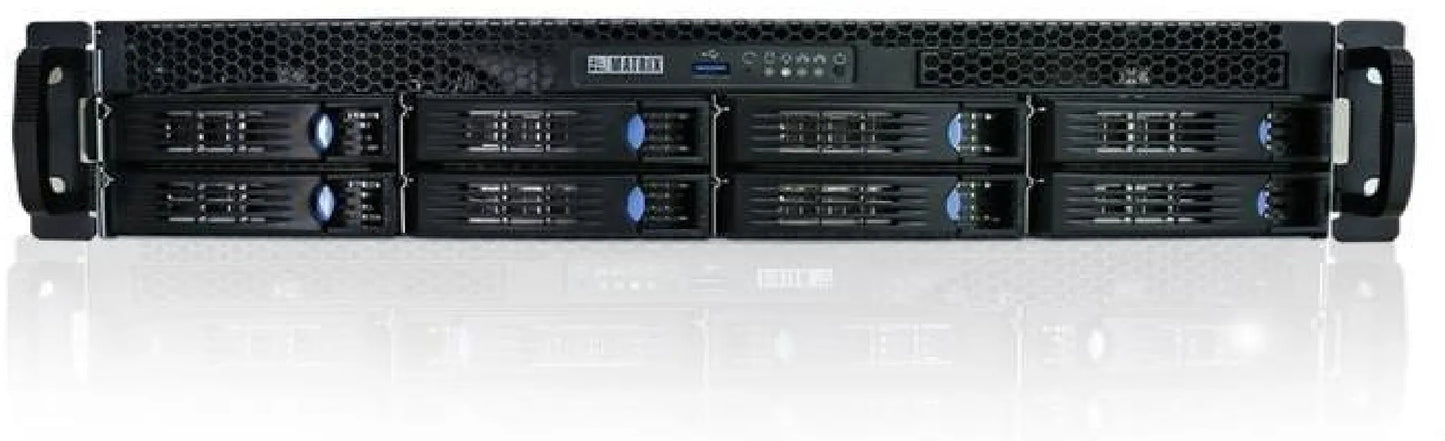

MATRIX SATATYA NVR03208XCTS

Matrix SATATYA NVR03208XCTS (32 Channel Enterprise 4K Network Video Recorder with 8 HDD Slots)

The Matrix SATATYA NVR03208XCTS is a server-grade 32-channel enterprise Network Video Recorder designed for advanced IP surveillance applications. It delivers 4K recording support, high-performance processing, and redundant hardware architecture, making it ideal for professional security installations.

This enterprise NVR is engineered for reliability, scalability, and continuous 24/7 operation, offering centralized video management and high-capacity storage for critical surveillance environments.

Key Features

• Supports up to 32 IP camera inputs
• 4K Ultra HD recording and playback support
• Display outputs: 1 × VGA and 2 × DisplayPort
• Dual hot-swappable redundant power supply (1+1 configuration)
• 8 hot-swap SATA bays (3.5” / 2.5” HDD/SSD supported)
• Supports up to 18TB per HDD (hard disk not included)
• 4 × 1GbE LAN ports for stable network performance
• Bandwidth support: 512 Mbps uplink & 512 Mbps downlink
• Supports ONVIF and major IP camera brands
• Supports H.265 / H.264 / MJPEG video compression

Technical Highlights

• IP Channels: 32
• Camera Resolution Support: Up to 12MP (12MP / 8MP / 5MP / 3MP / 2MP / 1080P / D1 / CIF)
• Local Decoding Capability: Multi-stream decoding support
• Video Compression: H.265, H.264, MJPEG
• Network Interface: 4 × 1GbE Ethernet ports
• Storage: 8 × Hot-swap SATA HDD/SSD bays
• Power Supply: Dual redundant hot-swappable PSU (1+1)
• Display Outputs: 1 × VGA + 2 × DisplayPort

Advanced Storage & Recording Features

• Enterprise-grade scalable storage architecture
• Hot-swappable HDD/SSD support for continuous uptime
• Adaptive recording for optimized storage utilization
• Three-level data backup policy support
• Efficient multi-stream recording for bandwidth optimization

Remote Monitoring & Management

• Centralized video surveillance management system
• Remote live view and playback access
• Mobile application support for anytime access
• Real-time alerts via SMS and Email notifications
• Multi-user role-based access control

Why Choose Matrix SATATYA NVR03208XCTS?

• Ideal for small to medium enterprise surveillance systems
• Server-grade reliability with redundant power design
• High bandwidth processing for smooth 4K video streaming
• Supports multiple IP camera resolutions up to 12MP
• Efficient storage management with 8 HDD slots
• Stable 24/7 continuous recording performance

Applications

• Corporate offices and IT parks
• Retail stores and shopping complexes
• Warehouses and logistics centers
• Educational institutions and campuses
• Industrial facilities and factories
• Residential societies and gated communities

System Benefits

• Reliable 24/7 video surveillance operation
• Centralized monitoring of multiple IP cameras
• Optimized storage with H.265 compression
• High uptime with redundant power supply
• Scalable architecture for future expansion

Important Notes

• Hard disks/SSDs are not included with the system
• Actual storage capacity depends on HDD configuration
• Performance may vary based on camera resolution and bitrate
• Professional installation recommended for enterprise deployment

The Matrix SATATYA NVR03208XCTS is a powerful 32-channel enterprise-grade 4K NVR designed for reliable and scalable surveillance systems. With redundant power supply, high storage capacity, and advanced video management features, it ensures secure and efficient monitoring for modern security infrastructure.
