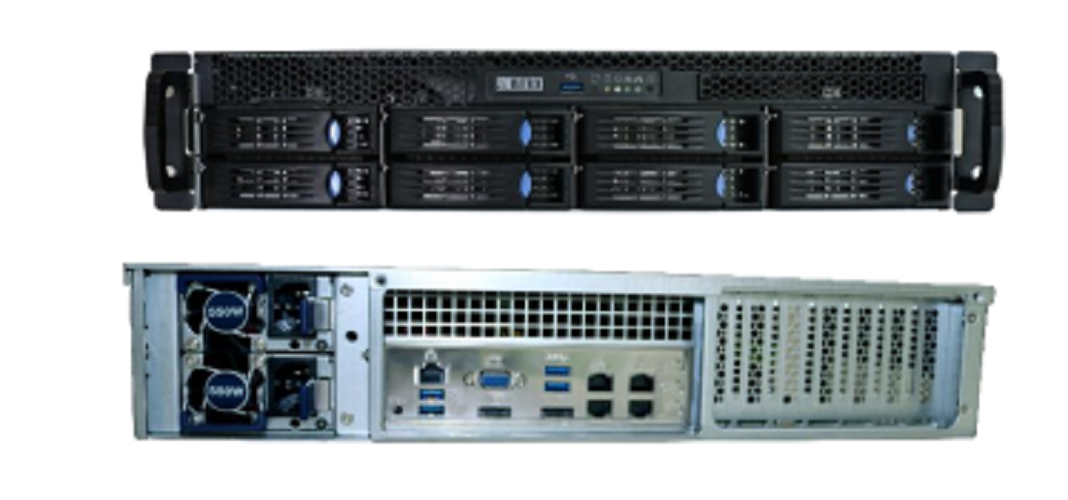

MATRIX SATATYA NVR06408XCTS

Matrix SATATYA NVR06408XCTS (64 Channel Enterprise 4K Network Video Recorder with 8 HDD Slots)

The Matrix SATATYA NVR06408XCTS is a server-grade 64-channel enterprise Network Video Recorder designed for high-performance IP surveillance systems. It supports 4K recording, advanced storage architecture, and redundant power supply, making it ideal for mission-critical security applications.

Built for enterprise-scale deployments, this NVR delivers high bandwidth processing, scalable storage, and centralized monitoring capabilities, ensuring reliable 24/7 surveillance for large infrastructures and high-security environments.

Key Features

• Supports up to 64 IP camera inputs
• 4K Ultra HD recording and playback support
• Display outputs: 1 × VGA and 2 × DisplayPort
• Dual hot-swappable redundant power supply (1+1 configuration)
• 8 hot-swap SATA bays (3.5” / 2.5” HDD/SSD supported)
• Supports up to 18TB per HDD (drive not included)
• 4 × 1GbE LAN ports for high-speed connectivity
• Uplink/Downlink bandwidth: up to 512 Mbps each
• Supports ONVIF and major IP camera brands
• Supports up to 12MP camera resolution input

Technical Highlights

• IP Channels: 64
• Camera Resolution Support: 12MP / 8MP / 5MP / 3MP / 2MP / 1080P / D1 / CIF
• Local Decoding Capability: 1 × 4K / 4 × 1080P / 9 × 720P / 16 × D1
• Video Compression: H.265 / H.264 / MJPEG
• Network Interface: 4 × 1GbE LAN ports
• Storage: 8 × Hot-swap SATA HDD/SSD bays
• Power Supply: Dual redundant hot-swappable PSU (1+1)
• Display Outputs: 1 × VGA + 2 × DisplayPort

Advanced Storage & Data Management

• Enterprise-grade scalable storage architecture
• Hot-swappable HDD/SSD support for continuous operation
• Adaptive recording for optimized storage usage
• Three-level data backup policy support
• Multi-stream recording for bandwidth efficiency

Remote Management & Monitoring

• Centralized video management system
• Remote live view and playback support
• Mobile client access for remote surveillance
• Real-time alerts via SMS and Email notifications
• Multi-user role-based access control

Why Choose Matrix SATATYA NVR06408XCTS?

• Ideal for medium to large-scale enterprise surveillance systems
• Server-grade reliability with redundant power supply
• High bandwidth processing for smooth 4K video streaming
• Supports multiple camera resolutions up to 12MP
• Efficient storage management with 8 HDD slots
• Stable 24/7 operation for critical environments

Applications

• Corporate offices and IT parks
• Industrial plants and factories
• Educational institutions and campuses
• Retail chains and shopping malls
• Warehouses and logistics hubs
• Government and public infrastructure

System Benefits

• Reliable enterprise-grade surveillance performance
• Centralized monitoring of multiple IP cameras
• Optimized storage using H.265 compression
• High system uptime with redundant power design
• Scalable architecture for future expansion

Important Notes

• Hard drives/SSDs are not included with the system
• Storage capacity depends on HDD configuration
• Performance varies based on camera resolution and bitrate
• Professional installation recommended for enterprise deployment

The Matrix SATATYA NVR06408XCTS is a powerful 64-channel enterprise-grade 4K NVR designed for high-security surveillance environments. With redundant power, high bandwidth support, and advanced storage architecture, it ensures reliable and scalable video management for critical operations.
